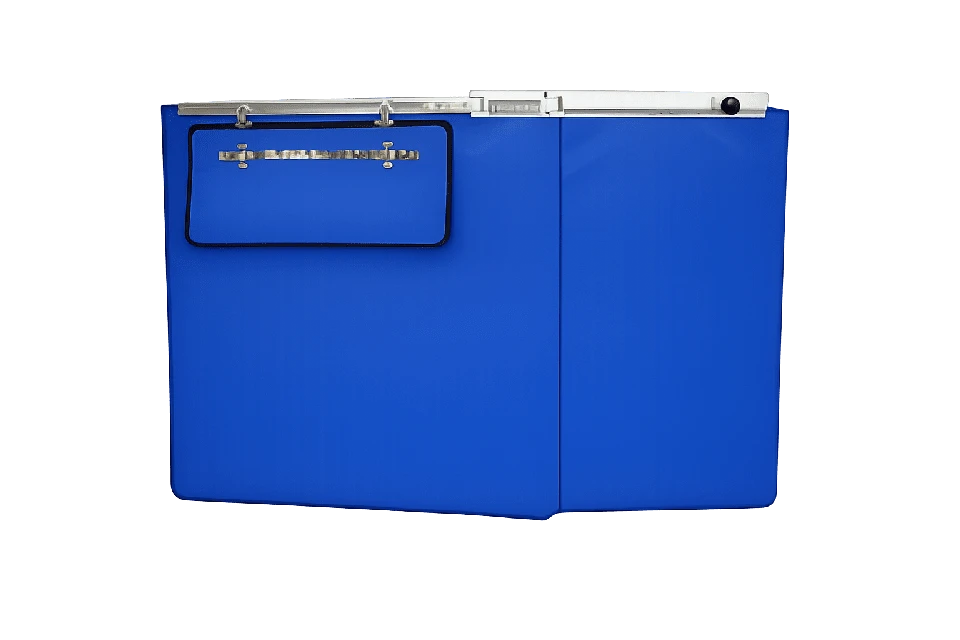

Triple-Fold Bedside Radiation Shielding Curtain (0.5mmPb)
The Bedside Lead Protective Curtain is specifically designed to provide localized radiation shielding for medical staff, patients, and caregivers during X-ray, C-arm, and fluoroscopy procedures. Featuring a triple-fold design with an additional side protection panel, this curtain creates an effective protective barrier while allowing convenient access around the patient's bed.
Manufactured with a 0.5 mmPb lead equivalency, the curtain effectively reduces scattered radiation exposure in hospitals, operating rooms, emergency departments, and interventional suites. Its foldable structure also makes storage and transportation simple, maximizing space efficiency in busy clinical environments.
Why Flexible Shielding Matters Around a Patient Bed
Radiation protection for bedside imaging poses unique hurdles that simply do not exist in standard fixed X-ray rooms. Unlike dedicated radiology suites with standardized layouts and fixed shielding zones, the area around a patient's bed is always irregular and cluttered. Hospital beds, portable X-ray units, patient monitors, IV infusion stands, and on-site clinical staff all occupy limited surrounding space. Rigid, one-piece radiation barriers struggle to adapt to this dynamic environment and often fail to deliver comprehensive scatter radiation protection for real bedside workflows.
This is where a flexible bedside lead curtain delivers unmatched practical advantages. Rather than offering only a single fixed protective plane like traditional rigid barriers, the multi-panel and triple-fold structure of this portable radiation shield adapts freely to variable bedside layouts. Clinicians can position and angle the shield along bed sides or procedural zones to add targeted lateral coverage, precisely filling gaps where scattered radiation protection is most needed during portable radiography.
The adjustability of this foldable shielding solution proves incredibly valuable for routine bedside procedures. Medical teams often need to access patients from multiple angles during imaging and treatment. A standard rigid barrier requires full repositioning whenever the working position shifts, disrupting workflow and wasting time. In contrast, the foldable X-ray shielding curtain flexes and reshapes to fit the available space, maintaining continuous radiation shielding without unnecessary reconfiguration.
Space efficiency is another key benefit for crowded hospital wards, ICUs and emergency departments where bedside floor space is extremely limited. Users can fully expand the shielding panels to maximize protective coverage during active X-ray exposure. When extra shielding is unnecessary or the equipment needs to be relocated, the panels fold inward compactly. This flexible design greatly cuts down occupied space, making storage and on-site repositioning far more convenient than bulky rigid mobile barriers.
Ultimately, the core value of flexible bedside radiation shielding goes beyond basic foldable functionality. It customizes the radiation protection layout to match the actual geometric constraints of each unique bedside workspace. For healthcare facilities in need of temporary, adjustable radiation safety solutions for patient beds and procedure tables, the 0.5mmPb bedside lead protective curtain serves as a far more adaptable and workflow-friendly alternative to inflexible, single-design mobile X-ray barriers.
How the Triple-Fold Design Extends Lateral Radiation Protection
A patient bed creates a dynamic working environment where radiation protection may be required from more than one direction. Unlike a fixed X-ray room barrier that provides shielding along a single plane, bedside procedures often involve movement around the patient, portable X-ray equipment positioning, and limited space between the bed and surrounding medical devices.
The triple-fold radiation shield is designed to provide more adaptable lateral radiation protection by allowing multiple shielding sections to work together. The central panel creates the primary protective area, while the folding side panels can extend coverage along the sides of the patient bed or procedure area.
This multi-panel structure helps create a wider and more flexible shielding boundary compared with a single flat lead curtain. By adjusting the angle and position of each section, healthcare facilities can better adapt the bedside lead curtain to different room layouts, bed positions, and portable X-ray workflows.
For portable radiography applications, scatter radiation protection is not only about the shielding material itself but also about how effectively the barrier can be positioned between personnel and the radiation source. A triple-fold configuration allows the protective area to be arranged closer to the working zone while maintaining access for patient care and equipment operation.
Compared with a conventional straight radiation curtain, a foldable X-ray shielding curtain with multiple sections provides greater flexibility in creating temporary shielding around irregular bedside environments. The design helps hospitals achieve practical lateral protection without requiring a large rigid mobile radiation barrier.
With a specified 0.5mmPb radiation shielding configuration, the triple-fold bedside curtain combines flexible positioning with defined lead equivalency, making it suitable for facilities requiring adjustable scatter radiation protection around patient beds, procedure tables, and other space-limited clinical areas.
How the Three Panels Adapt to Bedside Geometry
Patient beds and procedure tables create a working area with multiple sides, changing access points, and limited clearance for equipment and staff. A single straight radiation barrier can only cover one fixed direction, while a three-panel bedside lead curtain can be arranged to follow the shape of the actual clinical workspace more closely.
The triple-panel structure divides the shielding area into a main section and two adjustable side sections. Each part serves a different role in creating flexible bedside radiation protection.
Center Panel: Creates the Main Shielding Boundary
The center panel forms the primary protective surface of the 0.5mmPb bedside radiation shield. It can be positioned along the main side of the patient bed or procedure table to create a defined barrier between the working area and nearby personnel.
Rather than relying on several separate lead curtains, the central section provides a stable reference point for the overall shielding configuration.
Side Panels: Extend Lateral Radiation Protection
The folding side panels extend the shielding area beyond the straight center section. By changing their position relative to the main panel, the shield can provide additional lateral radiation protection along the sides of the bed or table.
This is particularly useful where scatter radiation shielding is required around corners or where staff and medical equipment occupy different positions during a procedure.
Adjustable Geometry for Different Bedside Layouts
The advantage of the three-panel design is that the shielding footprint does not have to remain completely flat. Depending on the available space and required protective area, the sections can be arranged in a straighter configuration for wider coverage or folded inward to create a more compact shielding zone.
This allows the triple-fold radiation shield to adapt more easily to different bed widths, room layouts, equipment positions, and staff access requirements.
Flexible Coverage Without Moving the Entire Barrier
With a conventional rigid mobile X-ray shield, changing the direction of protection often means repositioning the complete barrier. A multi-panel lead curtain provides another option: the shielding boundary can be adjusted by changing the configuration of the side sections while keeping the main panel in position.
This can be useful in space-limited bedside environments where frequent movement of a large rigid radiation barrier would be inconvenient.
By combining a central shielding panel with adjustable lateral sections, the triple-fold bedside lead protective curtain creates a more adaptable radiation protection layout around patient beds and procedure tables. The result is a flexible shielding solution designed around bedside geometry rather than requiring the clinical workspace to adapt to a fixed straight barrier.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Bedside Lead Protective Curtain |
| Type | Triple-Fold Protective Curtain |
| Material | Lead Sheet |
| Lead Equivalency | 0.5 mmPb |
| Protection | Side Plate Shielding |
| Application | X-ray Radiation Protection |
| Structure | Foldable Three-Panel Design |
| Custom Size | Available |
| OEM / ODM | Supported |
Triple-Fold Lead Curtain vs. Rigid Mobile X-ray Shield
A triple-fold lead curtain and a rigid mobile X-ray shield can both be used to create temporary radiation protection around medical imaging procedures, but they solve different positioning and workflow problems.
The main difference is how the shielding boundary is formed.
A triple-fold lead curtain uses multiple connected sections that can be angled around a patient bed or procedure table. This makes it suitable for applications where side coverage, limited floor space, or changing bedside geometry are important. Instead of creating only one straight protective plane, the curtain can provide adjustable lateral shielding along more than one side of the working area.
A rigid mobile X-ray shield, by comparison, provides a fixed protective surface mounted on a mobile frame. It is generally more suitable when staff need a stable, freestanding barrier that can be positioned as one complete unit. Depending on the model, a rigid shield may also include a lead glass viewing window for operator observation.
| Selection Factor | Triple-Fold Lead Curtain | Rigid Mobile X-ray Shield |
|---|---|---|
| Shielding Structure | Flexible multi-panel curtain | Fixed rigid panel |
| Main Advantage | Adjustable lateral coverage | Stable full-size protective barrier |
| Bedside Geometry | Adapts around beds and tables | Creates a mainly straight shielding boundary |
| Side Protection | Folding sections can extend coverage along the sides | Depends on shield width or fixed side wings |
| Position Adjustment | Panel angles can be changed independently | Entire shield is usually repositioned |
| Space Requirements | Can fold inward for a smaller footprint | Requires space for the full frame and base |
| Visual Observation | Typically no transparent viewing section | Lead glass window may be available |
| Typical Shielding Level | Depends on specified curtain configuration, such as 0.5mmPb | Depends on model and project requirements |
| Best Suited For | Bedside and table-side flexible scatter shielding | Operator stations and straight-line radiation protection |
When a Triple-Fold Lead Curtain Is More Practical
A 0.5mmPb triple-fold bedside lead curtain may be the better choice when the shielding needs to follow the side of a patient bed, wrap partially around a procedure area, or adjust as the available workspace changes.
It is also useful where a large rigid barrier would occupy too much space or where moving the complete shield each time the working position changes would be inconvenient.
When a Rigid Mobile X-ray Shield Is More Practical
A rigid mobile radiation barrier is generally more suitable when a full-height protective screen is required in a defined operator position. It may also be preferred where structural rigidity, a transparent lead glass viewing panel, or a larger continuous shielding surface is important.
The correct choice should therefore be based on the required shielding geometry, lead equivalency, available floor space, operator position, and clinical workflow rather than on product type alone.
For projects requiring adjustable bedside or table-side coverage, a triple-fold lead curtain provides a flexible radiation shielding solution. For applications requiring a stable straight protective boundary, a rigid mobile X-ray shield may be the more appropriate configuration.
Professional Radiation Shielding Manufacturer
JTBYShield specializes in the development and manufacturing of radiation protection products for medical imaging, diagnostic X-ray, and other radiation shielding applications. Our product range includes lead curtains, mobile X-ray shields, lead glass barriers, protective screens, and customized radiation shielding solutions for hospitals, medical equipment distributors, and project contractors.
For products such as the 0.5mmPb triple-fold bedside lead protective curtain, manufacturing involves more than simply assembling shielding material into a frame. The lead-equivalent material, curtain dimensions, panel connections, support structure, surface covering, and folding configuration all need to match the approved product specification.
Manufacturing Based on Defined Shielding Specifications
Radiation shielding products are produced according to confirmed technical requirements, including lead equivalency, overall dimensions, panel configuration, and application needs. For custom projects, specifications can be reviewed before production so that the finished radiation shield matches the required bedside or table-side layout.
Depending on the product configuration, customization may include:
- lead equivalency
- overall shielding width and height
- individual curtain panel dimensions
- triple-fold or multi-panel configuration
- shielding core material
- outer surface material
- frame and support structure
- mobility or base configuration
- OEM labeling and packaging
From Drawing Confirmation to Final Inspection
For customized radiation shielding projects, technical details can be confirmed through product specifications or drawings before manufacturing. This is particularly important for multi-panel products, where the width of each section, folding arrangement, and overall shielding coverage affect how the product fits around the patient bed or procedure area.
During production and final inspection, attention is given to shielding material configuration, panel dimensions, connection areas, structural stability, surface condition, and other project-specific requirements.
Radiation Shielding Documentation for B2B Projects
Hospitals, distributors, and radiation protection contractors often require more than a commercial quotation when sourcing X-ray shielding products. According to the agreed project requirements and available documentation, we can support buyers with product specifications, technical drawings, material information, and relevant radiation shielding documentation for technical review.
This helps procurement teams verify the proposed configuration before placing bulk or project-based orders.
Custom Support for Radiation Protection Projects
Different imaging environments require different shielding arrangements. Instead of limiting buyers to a single standard model, we support customized radiation protection solutions based on the required Pb equivalency, shielding area, installation or positioning method, available space, and application.
For a triple-fold bedside lead curtain, for example, the center and side panel dimensions can be configured around the required bedside shielding area, allowing the product to provide more practical lateral radiation protection than a standard straight curtain.
Our role is therefore not only to supply individual radiation shielding products, but also to help B2B customers translate project requirements into a practical product configuration that can be reviewed and confirmed before manufacturing.
Frequently Asked Questions
What is the lead equivalency of the triple-fold bedside lead curtain?
The standard configuration is 0.5mmPb, designed for scatter radiation shielding in bedside and table-side applications. If a project requires a different shielding level, the available lead equivalency should be confirmed according to the facility's radiation protection requirements and project specification.
Can the three curtain panels be customized in different widths?
Yes. The center panel and folding side panels can be configured according to the required shielding area, available bedside space, and desired lateral coverage. For project orders, individual panel dimensions can be confirmed through a technical drawing before production.
What information should I provide for a custom bedside radiation shield?
To recommend a suitable configuration, it is helpful to provide the required Pb equivalency, overall shield height, bed or procedure-table dimensions, desired side coverage, available floor space, folded-size requirement, application, and order quantity.
Is this product the same as a rigid mobile X-ray shield?
No. A rigid mobile X-ray shield creates a fixed shielding surface, while a triple-fold bedside lead curtain uses multiple connected sections that can be positioned at different angles. This makes the curtain more suitable for adjustable lateral shielding around beds and procedure tables.
Can the lead curtain be folded for storage?
Yes. The multi-panel structure allows the shielding sections to fold inward when the full protective width is not required. The exact folded dimensions depend on the selected panel configuration and should be confirmed in the product specification.
How is shielding maintained around the folding sections?
The connection between panels is an important part of the shielding design. Depending on the product structure, the folding sections can be configured to maintain appropriate shielding continuity when positioned for use. For project procurement, details of the panel connection and shielding structure can be confirmed before production.
Can the outer surface be cleaned in a hospital environment?
The cleaning method depends on the selected outer covering material. Buyers should confirm the surface material and compatible cleaning agents before ordering, especially where the curtain will be used in hospitals, imaging departments, or other areas requiring routine disinfection.
Is 0.5mmPb suitable for every bedside X-ray application?
Not necessarily. The required lead equivalency depends on the equipment, examination type, workload, positioning, distance, and the facility's radiation protection assessment. The shielding level should be selected according to the project's technical requirements and applicable local regulations.
Can the curtain be used around procedure tables as well as patient beds?
Yes, where the required shielding geometry is compatible with the product design. The triple-fold structure can be useful for table-side applications where adjustable lateral scatter radiation protection is required and a single straight rigid barrier would be less practical.
Do you provide technical drawings before production?
For customized or project-based orders, product dimensions, panel configuration, lead equivalency, and other technical details can be confirmed through drawings or specifications before manufacturing.
What documentation can be provided for B2B procurement?
Depending on the project and available documentation, buyers can request product specifications, technical drawings, material information, radiation shielding documentation, and other agreed quality records for technical review.
Can you provide OEM or private-label production?
Yes. OEM requirements such as product dimensions, labeling, branding, packaging, and selected structural specifications can be discussed for distributor or project-based orders.
