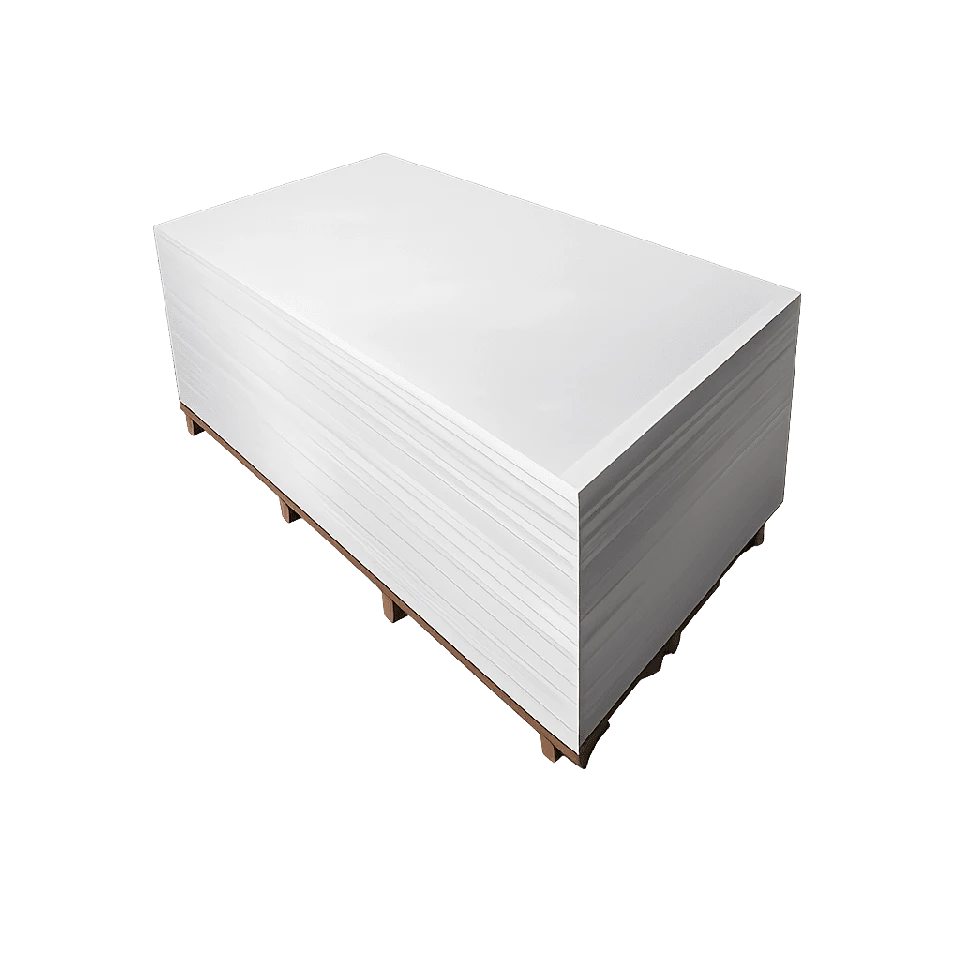

Barium Sulfate Radiation Shielding Board for X-Ray Room Walls – 12mm & 15mm

A barium sulfate radiation shielding board provides a prefabricated approach to integrating X-ray protection directly into walls and partitions. Instead of applying shielding material as a wet compound on site, the board is manufactured in controlled panel dimensions and installed as part of the building structure.

Available in 12mm and 15mm thicknesses, the panels are designed for medical imaging projects where the shielding material must be coordinated with wall construction, room layout, and the required radiation protection specification.

This makes the product particularly suitable as an X-ray room construction material for hospitals, radiology departments, diagnostic imaging centers, and renovation projects.

A Board-Based Approach to X-Ray Room Wall Shielding

Radiation shielding in an imaging room is not limited to the protective material itself. The shielding layer must become part of a continuous wall system that works around doors, observation windows, corners, ceilings, and service penetrations.

A prefabricated radiation shielding board allows the shielding material to be incorporated into a defined panel-based construction system.

Depending on the project design, the board can be used for:

• X-ray room wall lining
• radiation-protected partitions
• diagnostic imaging room construction
• wall upgrades during radiology department renovation
• shielding around equipment rooms
• custom medical imaging room partitions

The rigid panel format makes it easier to plan the shielding layout according to architectural drawings before installation begins.

Controlled Panel Thickness for Predictable Wall Construction

With site-applied shielding compounds, final performance can depend heavily on achieving the specified material thickness consistently across the wall.

A prefabricated radiation shielding wall panel provides a defined physical board thickness before it reaches the job site.

For this product, available options include:

• 12mm barium sulfate radiation shielding board
• 15mm barium sulfate radiation shielding board

The selected thickness should be matched to the required Pb equivalency and shielding design rather than chosen by physical thickness alone.

This helps architects, shielding contractors, and hospital engineering teams coordinate the shielding layer with the total wall buildup.

Easier Integration Into Partition and Wall Systems

The panel format is particularly useful where the radiation shielding layer must be installed together with a framing or partition system.

Depending on the approved construction design, barium sulfate shielding boards can be incorporated into wall assemblies and finished as part of the surrounding architectural surface.

During planning, contractors should consider:

• wall height and width
• framing structure
• board orientation
• number of panel layers
• joint locations
• door and window openings
• electrical and service penetrations
• finished wall thickness

Treating the product as part of a complete radiation protection wall system helps reduce the risk of focusing on the shielding board while overlooking weak points elsewhere in the construction.

Prefabricated Panels Can Simplify Material Planning

Because each board has defined dimensions, project teams can calculate the approximate number of panels required from architectural drawings before shipment and installation.

This supports planning for:

• total shielding area
• board quantity
• cutting requirements
• material waste
• pallet quantities
• transportation
• installation sequencing

For international projects, this can also make procurement and logistics more predictable than shielding systems that depend mainly on materials mixed or applied at the construction site.

Designed for Medical Imaging Room Construction

A barium sulfate X-ray shielding board is especially relevant where radiation protection needs to be incorporated directly into the room envelope.

Typical projects may include:

• general X-ray rooms
• DR rooms
• CT rooms
• radiology department partitions
• diagnostic imaging room renovations
• medical imaging equipment rooms

The actual board thickness, number of layers, and shielding configuration should be determined according to the project radiation protection specification.

The Board Is Only One Part of the Shielding System

Effective X-ray room wall shielding depends on more than installing shielding panels across the main wall area.

Attention must also be given to:

• board-to-board joints
• internal and external corners
• floor and ceiling interfaces
• door frames
• observation windows
• cable penetrations
• electrical boxes
• HVAC and other service openings

These details determine whether the shielding layer remains continuous across the complete room enclosure.

For this reason, we treat the barium sulfate radiation shielding board as one component of a complete X-ray room construction solution rather than as an isolated building panel.

For project-based orders, room dimensions, architectural drawings, required Pb equivalency, wall structure, and opening locations can be reviewed before confirming the board configuration and required quantity.

A barium sulfate radiation shielding board does not provide effective X-ray protection simply by being installed on a wall. Its performance depends on how the board is integrated into the complete X-ray shielding wall system, including panel layout, joints, corners, openings, and interfaces with doors, windows, ceilings, and service penetrations.

For this reason, the board should be treated as one component of a continuous radiation protection envelope rather than as an isolated construction panel.

The Shielding Board Forms the Main Protective Layer

In a typical X-ray room wall assembly, the radiation shielding wall panel provides the primary attenuation layer across the main wall surface.

Depending on the project design, the board may be installed over or within:

• metal stud partitions
• masonry walls
• existing wall structures
• renovation wall systems
• custom medical imaging room partitions

The required board thickness and number of layers should be selected according to the specified Pb equivalency and the overall radiation shielding design.

Shielding Continuity Must Extend Beyond the Main Wall Surface

A wall may be fully covered with barium sulfate boards and still contain weak points if adjoining areas are not treated correctly.

Important locations include:

• board-to-board joints
• internal and external corners
• wall-to-floor connections
• wall-to-ceiling interfaces
• door frames
• observation window frames
• electrical boxes
• cable penetrations
• HVAC openings

These areas can interrupt the shielding layer if they are not incorporated into the same protection strategy.

A complete X-ray room wall shielding system therefore considers both the main board surface and every location where the shielding envelope changes direction or is penetrated by building services.

Panel Layout Affects the Final Shielding System

The way individual boards are positioned across the wall also matters.

For example, the board layout may be planned to:

• reduce unnecessary joints
• avoid multiple joints meeting at one location
• coordinate with wall framing
• fit around doors and viewing windows
• minimize small cut sections
• simplify installation around equipment penetrations

Where multi-layer construction is required, panel positions may also be coordinated so that joints between layers do not align, depending on the approved shielding design.

This is why barium sulfate shielding board installation should be planned from architectural drawings rather than treated as standard decorative wall cladding.

The Wall System Must Match the Required Pb Equivalency

The physical thickness of a barium sulfate board is only one part of the shielding specification.

For a 12mm or 15mm panel, buyers should also review:

• specified Pb equivalency
• test conditions
• number of board layers
• total wall buildup
• adjacent shielding materials
• penetration treatment

A thicker wall does not automatically mean that the required radiation protection level has been achieved.

The complete radiation shielding wall system should be configured according to the project shielding calculation or radiation protection specification.

Interfaces With Doors and Viewing Windows Require Coordination

Doors and observation windows are common interruption points in medical imaging room walls.

Where a barium sulfate board meets a lead-lined door, lead glass window, or another shielding material, the transition between materials should be considered as part of the same protective boundary.

This may require coordination of:

• frame depth
• material overlap
• wall thickness
• shielding equivalency
• fixing method
• finishing detail

The objective is to maintain shielding continuity across the entire room envelope rather than allowing the wall, door, and viewing window to function as separate systems.

A Wall Shielding System Should Be Designed Before Installation

For project-based X-ray room construction, the shielding board layout is best confirmed before materials arrive on site.

Useful project information includes:

• architectural wall drawings
• required Pb equivalency for each wall
• wall height and length
• door and window locations
• electrical and HVAC penetrations
• partition structure
• selected board thickness
• required number of layers

Using this information, the barium sulfate radiation shielding board can be coordinated as part of a complete medical imaging room shielding system, helping contractors plan board quantities, joint locations, installation details, and transitions to other radiation protection materials.

To meet various radiation protection applications, this product is available in two standard sizes:

Option 1

• Size: 1200 × 2400mm
• Thickness: 15mm

Option 2

• Size: 1200 × 2400mm
• Thickness: 12mm

Both options provide the same board format while allowing flexibility in project design and radiation shielding planning.

Both the 12mm and 15mm barium sulfate radiation shielding boards are specified at 0.5mmPb lead equivalency, so the choice between them should not be made on the assumption that the thicker board automatically provides a higher nominal shielding level.

Instead, the selection should consider the wall construction method, panel rigidity, total wall buildup, handling requirements, and the way the shielding board will be integrated into the X-ray room structure.

Same 0.5mmPb Shielding Specification, Different Board Thickness

The two available configurations are:

12mm barium sulfate shielding board – 0.5mmPb

15mm barium sulfate shielding board – 0.5mmPb

Although both products are designed to meet the same specified 0.5mmPb radiation shielding requirement, their physical thicknesses are different.

This means the selection is primarily a construction and installation decision rather than a simple comparison of radiation attenuation values.

When a 12mm Barium Sulfate Board May Be Preferred

The 12mm radiation shielding board may be suitable where the project requires 0.5mmPb protection while keeping the total wall buildup relatively compact.

It can be considered when:

• available wall thickness is limited
• the partition system requires a thinner panel
• lower panel weight is preferred
• the shielding board must fit within an existing renovation structure
• doorway, frame, or finishing dimensions restrict total wall thickness

For retrofit or renovation projects, the reduced physical thickness can make the 12mm panel easier to coordinate with existing architectural conditions.

When a 15mm Barium Sulfate Board May Be Preferred

The 15mm barium sulfate shielding board provides the same specified 0.5mmPb shielding level but may offer advantages where a thicker and more rigid panel is preferred for the wall construction system.

It may be considered when:

• greater panel rigidity is useful
• the partition structure can accommodate additional thickness
• larger wall sections require a more substantial board
• handling and fixing conditions favor a thicker panel
• the project wall buildup has already been designed around a 15mm board

In these cases, the additional thickness is selected for structural and installation reasons rather than for a higher nominal Pb equivalent.

Compare the Two Options by Construction Requirement

Do Not Select by Thickness Alone

Because both panels are rated at 0.5mmPb, a 15mm board should not automatically be described as providing better radiation protection than the 12mm option.

The correct choice depends on the complete wall system, including:

• required Pb equivalency
• stud or partition structure
• total finished wall thickness
• panel size
• fixing method
• door and window frame depth
• wall height
• installation conditions
• transportation and handling requirements

For B2B shielding projects, these construction details can be just as important as the shielding value itself.

Match the Board to the X-Ray Room Wall Design

For new X-ray room construction, the 12mm or 15mm barium sulfate radiation shielding board can be selected during the architectural and shielding design stage so that the panel thickness matches the wall framing, door frames, observation windows, and finishing system.

For renovation projects, the available wall depth and existing construction may make one thickness more practical than the other.

Because both options provide the same specified 0.5mmPb lead equivalency, the final selection should focus on how the board fits into the complete X-ray room wall shielding system rather than simply choosing the thicker panel.

1. Application in General X-Ray Rooms

For conventional X-ray examination rooms, the walls and partition structures surrounding the inspection area must be equipped with complete radiation shielding performance. The overall enclosure of the room needs to effectively block radiation and protect the safety of adjacent functional areas.

When engineering projects require prefabricated X-ray shielding wall panels with standard lead equivalent parameters, barium sulfate radiation shielding boards can be adopted as the core shielding material for wall construction. This product is widely applicable to multiple construction scenarios of general X-ray rooms:

• Radiation shielding partition walls
• Wall inner lining shielding systems
• Isolation walls for operating and control areas
• Renovation and shielding upgrade of existing X-ray rooms
• Local shielding structure around doors and observation windows
• Custom partition structures for medical imaging rooms

Both 12mm and 15mm specifications of the shielding board reach a 0.5mmPb lead equivalent shielding standard. Construction teams can flexibly select the appropriate board thickness based on on-site wall structure, reserved construction depth, required panel rigidity and actual installation conditions.

It is worth noting that the wall shielding construction of general X-ray rooms needs to be integrated with the overall radiation protection system, instead of single independent panel installation. In the shielding layout design, all key leakage points must be fully considered, including board joints, wall corners, door frames, observation windows, electrical junction boxes and cable reserved holes. With high rigidity and standardized prefabrication, this barium sulfate radiation shielding wall board can be perfectly matched with architectural wall systems, serving as an ideal shielding material for conventional X-ray room construction and renovation.

2. Application in DR Rooms

Digital Radiography (DR) rooms feature compact space layout, integrating X-ray shooting equipment, detection systems, operator workstations, control areas and supporting electrical facilities in a limited area. This puts forward higher comprehensive requirements for DR room radiation shielding design and construction.

Different from conventional shielding construction, DR room shielding design needs to coordinate and match multiple factors including wall size and dimension, equipment installation position, access doors, observation windows, control station layout and various pipeline penetration openings. Thebarium sulfate X-ray shielding board is perfectly adapted to DR room construction scenarios, and can form stable and standardized shielding layers in the following parts:

• Enclosure perimeter walls of DR rooms
• Partition walls for internal control areas
• Local shielding walls on the equipment side
• Shielding renovation of old DR room walls
• Custom partition structures for imaging areas
• Architectural wall structures around observation windows and doors

The integrated rigid board structure enables construction personnel to complete the overall digital radiography room shielding system planning in advance according to architectural drawings, realizing standardized and systematic construction.

In the shielding design of DR projects, key parameters and details need to be fully covered: standard 0.5mmPb shielding protection level, total wall length and height, board laying direction, keel framing structure, joint positions, control station layout, electrical box and cable penetration openings, as well as the matching structure of doors and observation windows.

Compared with traditional on-site pouring shielding materials, the prefabricated radiation shielding board for DR rooms simplifies material scheduling and wall system coordination, effectively improving construction efficiency. Under the same 0.5mmPb shielding requirement, the selection of 12mm or 15mm board can be determined according to on-site construction depth, panel rigidity, transportation and installation convenience, and the matching degree with the final wall assembly.

Whether it is new DR room construction or radiology department renovation and upgrading, barium sulfate radiation shielding wall panels can be used as a key part of the complete DR room supporting construction system, rather than a single independent shielding material, to meet the overall radiation protection needs of medical imaging rooms.

Different X-ray rooms require different wall dimensions, shielding layouts, installation details, and material quantities. For this reason, we provide custom barium sulfate shielding board solutions based on the actual project requirements rather than supplying only standard panels.

As a barium sulfate radiation shielding board manufacturer with in-house production capabilities, we can coordinate board dimensions, thickness selection, cutting requirements, project quantity, and quality inspection before shipment.

Custom Boards for X-Ray Room Wall Construction

Our 12mm and 15mm barium sulfate radiation shielding boards are both specified at 0.5mmPb and can be configured according to the wall construction requirements of the project.

Customization can include:

• board width and height
• 12mm or 15mm panel thickness
• cut-to-size panels
• project-specific quantities
• special panel dimensions
• installation layout requirements
• pallet and packaging configuration
• project labeling

For larger medical imaging projects, customers can provide architectural drawings, wall dimensions, door and window locations, and required shielding specifications for review.

This allows the custom X-ray shielding board supply plan to be coordinated with the actual wall layout rather than based only on standard sheet dimensions.

Production Based on Confirmed Project Specifications

Before manufacturing, key project parameters can be confirmed, including:

• required Pb equivalency
• selected board thickness
• finished dimensions
• quantity
• cutting requirements
• wall system design
• shipping and packaging requirements

This helps ensure that the supplied radiation shielding wall panels match the approved project specification and construction plan.

For X-ray room renovations or non-standard partitions, custom panel dimensions can also help reduce unnecessary on-site cutting and material waste.

In-House Board Manufacturing

In-house manufacturing gives us greater control over the production of each barium sulfate X-ray shielding board.

Depending on the actual production process, manufacturing control may include:

• raw material preparation
• material mixing
• board forming or pressing
• curing
• panel trimming
• thickness control
• dimensional cutting
• surface finishing
• final inspection

By controlling these stages internally, we can better coordinate product consistency across standard and custom orders.

Thickness and Dimensional Quality Control

For a prefabricated shielding board, dimensional accuracy is important because the panels must fit into a defined wall system.

During production and final inspection, key items can include:

• panel thickness
• board width and length
• dimensional tolerance
• edge condition
• surface condition
• flatness
• visible defects

finished panel quantity

For 12mm and 15mm radiation shielding boards, thickness verification is especially important because the physical board dimension affects wall buildup, framing compatibility, handling, and installation.

Verification of the 0.5mmPb Shielding Specification

Both available board thicknesses are specified at 0.5mmPb lead equivalency.

Where applicable, supporting technical or radiation shielding documentation can be provided for customer review.

For B2B projects, buyers should evaluate the Pb-equivalent value together with its relevant test conditions and the radiation protection requirements specified for the X-ray room.

Radiation shielding performance should be confirmed as part of the overall X-ray room shielding solution, including wall joints, corners, doors, observation windows, and service penetrations.

Quality Control Before Packing and Shipment

Before finished boards are packed, the order can be checked against the confirmed project specification.

Final inspection may include:

• board model and thickness
• dimensions
• quantity
• surface quality
• edge condition
• custom cutting details
• identification labels
• packaging requirements

Because barium sulfate boards are relatively heavy construction materials, appropriate packing is also important for protecting panel surfaces and edges during international transportation.

From Standard Boards to Project-Based Shielding Supply

For hospitals, radiology departments, medical construction companies, shielding contractors, and distributors, purchasing a radiation shielding board often involves more than selecting a standard thickness.

Project requirements may include specific wall dimensions, limited construction depth, installation sequencing, delivery schedules, and different quantities for separate room areas.

By combining custom barium sulfate shielding board production, in-house manufacturing, dimensional inspection, and board quality control, we can support both standard orders and project-based X-ray room radiation shielding solutions from specification review through production and shipment.

1. What is the difference between 12mm and 15mm barium sulfate shielding boards?

Both the 12mm and 15mm barium sulfate radiation shielding boards are specified at 0.5mmPb. The main difference is physical board thickness, which affects wall buildup, panel rigidity, weight, handling, and installation compatibility. The thicker board should not automatically be interpreted as having a higher nominal Pb equivalency.

2. Can barium sulfate shielding board be used for X-ray room walls?

Yes. A barium sulfate radiation shielding board can be integrated into X-ray room walls and partitions where the project shielding design specifies the corresponding 0.5mmPb protection level. The board should be treated as part of the complete shielding wall system, including joints, corners, doors, observation windows, and service penetrations.

3. How should joints between radiation shielding boards be treated?

Board-to-board joints are important because shielding continuity must be maintained across the complete wall surface. Joint treatment should follow the approved shielding design and may involve specific overlap, backing, staggered-layer, or interface details depending on the wall system. The exact joint method should be confirmed before installation rather than treated like a standard decorative board joint.

4. Can barium sulfate shielding boards be customized for project dimensions?

Yes. Custom barium sulfate shielding boards can be manufactured according to confirmed project requirements, including board dimensions, 12mm or 15mm thickness, cutting requirements, quantities, packaging, and other construction details. For larger X-ray room projects, architectural drawings and wall dimensions can be reviewed before production.

5. What information is needed before ordering an X-ray shielding wall board?

For project-based orders, useful information includes the required Pb equivalency, wall dimensions, selected board thickness, number of walls, door and observation-window locations, wall structure, service penetrations, quantity, and any custom cutting requirements. Providing architectural or shielding drawings can help confirm the most suitable barium sulfate board configuration before manufacturing.

Hot Tags: Barium Sulfate Radiation Shielding Board for X-Ray Room Walls – 12mm & 15mm, China, manufacturers, suppliers, factory, customized, wholesale, best, cheap, professional, for sale, near me
