Fiber Laser Diode

• 976nm 20W 14Pin Fiber Laser Diode

  Center Wavelength: 976~980nm
  Fiber Output Power: 20W
  Package: 14-Pin
  Fiber Type: Multimode Fiber
  Fiber Core Diameter: 105um
  Numerical Aperture: 0.22N.A....

• 1550nm 500mW Fiber Coupled Laser Diode

  Center Wavelength: 1550nm±30nm@25°C
  Power: 500mW
  Package: 14-Pin
  Fiber Type: Multimode Fiber
  Fiber Core Diameter: 105um
  Numerical Aperture: 0.22
  Fiber...

• 1064nm 1W Multimode Pigtailed Laser Diodes

  Center Wavelength: 1064nm±20nm@25°C
  Power: 1W
  Package: 14-Pin
  Fiber Type: Multimode Fiber
  Fiber Core Diameter: 105um
  Numerical Aperture: 0.22
  Fiber...

• 1550nm 1.5W / 2.5W Fiber Laser Diode

  Center Wavelength: 1550nm
  Fiber Output Power: 1.5W / 2.5W
  Package: 9-Pin
  Fiber Type: Multimode Fiber
  Fiber Core Diameter: 105um
  Numerical Aperture: 0.22N.A....

• 980nm 10W Fiber Coupled Laser Diode

  Center Wavelength: 980nm
  Fiber Output Power: 10W
  Package: 9-Pin
  Fiber Type: Multimode Fiber
  Fiber Core Diameter: 105um
  Numerical Aperture: 0.22N.A.
  Fiber...

• 808nm 4W Fiber Laser Diodes With PD

  Center Wavelength: 808nm±10nm@25°C
  Power: 4W
  Package: 4-Pin
  Fiber Type: Multimode Fiber
  Fiber Core Diameter: 105um
  Numerical Aperture: 0.22N.A.
  Fiber...

• 808nm 2W Fiber Laser Diodes With PD

  Center Wavelength: 808nm±10nm@25°C
  Power: 2W
  Package: 4-Pin
  Fiber Type: Multimode Fiber
  Fiber Core Diameter: 105um
  Numerical Aperture: 0.22N.A.
  Fiber...

• 1550nm 2.5W Fiber Laser Diodes

  Wavelength: 1550nm±30nm@25°C,
  Power: 2.5W
  Package: 2-Pin
  Model Type: Multimode Fiber
  Laser Type: Fiber Laser
  Fiber Core:105um
  Fiber Interface: FC/PC...

• 1550nm 1.5W Fiber Laser Diodes

  Wavelength: 1550nm±30nm@25°C,
  Power: 1.5W
  Package: 2-Pin
  Model Type: Multimode Fiber
  Laser Type: Fiber Laser
  Fiber Core:105um
  Fiber Interface: FC/PC...

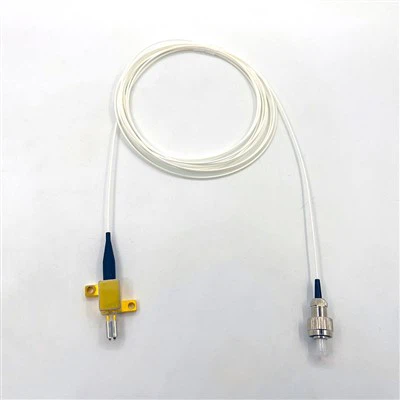

• 808nm 10W Fiber-Coupled Laser Diodes

  Wavelength: 808nm
  Power: 10W
  Package: 2-Pin
  Model Type: Multimode Fiber
  Laser Type: Fiber Laser
  Fiber Core:200um
  Fiber Interface: FC/PC
  Optical...

• 808nm 5W Fiber-Coupled Laser Diodes

  Wavelength: 808nm
  Power: 5W
  Package: 2-Pin
  Model Type: Multimode Fiber
  Laser Type: Fiber Laser
  Fiber Interface: FC/PC
  PD: No
  Configuration: with...

• 905nm 75W High Power Pulsed Laser Diode

  Part Number: XLD905-75W-P
  Central Wavelength: 905nm±10nm
  Power: 75W
  luminous Size: 200μm*10μm
  Beam Directivity: ≤±1.5° Working Current: 30A
  Working Voltage:...
