Laser Diode Module

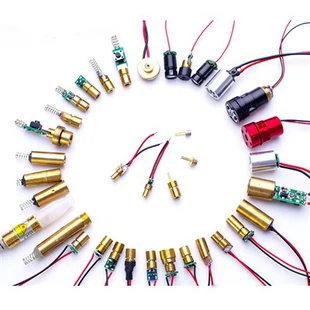

• Industrial Grade Mini 405nm 450nm 520nm 650nm Laser Module

  Wavelength:405nm 450nm 520nm 635nm 650nm
  780nm 808nm 905nm 940nm 980nm 1064nm
  Laser Power:1mw/5mw/10mw/20mw/30mw/50mw
  Spot Shape: Dot/ Line /Crossline
  Focal Length:...

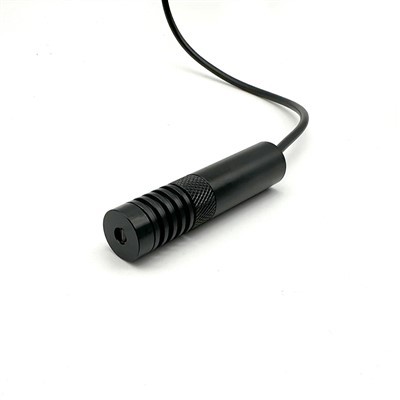

• 450nm 80mw Blue Dot Laser Module

  Wavelength: 450nm
  Output Power: 80mW
  Beam Shape: Dot
  Dimension: 16*66mm
  Operating Voltage: DC3V~5V
  Operating Current: 300~350mA
  Operating Temperature: 0 ~...

• 650nm 5mw Red Line Laser Diode Module

  Wavelength: 650nm
  Output Power: <5mW
  Beam Shape: Line
  Dimension: 12mm×40mm
  Operating Voltage: DC3V~5V
  Operating Current: DC5V≤200mA; DC3V≤300mA
  Line...

• Waterproof 650nm Red Line Laser Projector

  Wavelength: 650nm
  Output Power: <100mW
  Beam Shape: Line
  Dimension: 26mm×134mm
  Operating Voltage: DC3V~24V
  Operating Current: DC5V≤200mA; DC3V≤300mA
  Line...

• Ceramic Tile Cutting Green Line Laser Module

  Part Number:XL530L006-2429
  Wavelength:530nm
  Output power:<10 mW
  Dimension:24mm*29mm
  Operating Voltage:DC3V~24V
  Line Width:<2mm
  Operating...

• 635nm Red Line Laser Projector Module

  Wavelength:635nm
  Output power:<1mW
  Dimension:12.85x58mm
  Lens:Optical Glass Lens
  Working Distance:850mm
  Line Length:700mm
  Line Thickness:2.5mm

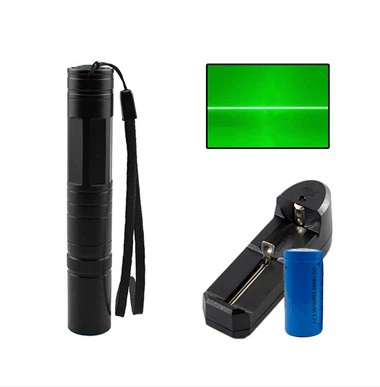

• 520nm Green Line Industrial Laser Module

  Wavelength: 520nm
  Output Power: 10mW-150mW
  Spot Mode: Dot/Line/Cross line
  Lens Angle: 90° Operating Voltage: 3.7V(single 16340 battery)
  Material: Aviation Aluminum...

• Portable Red Laser Line Generator Module

  Wavelength: 650nm
  Output Power: 10mW-150mW
  Spot Mode: Dot/Line/Cross line
  Lens Angle: 90° Operating Voltage: 3.7V(single 16340 battery)
  Material: Aviation Aluminum...

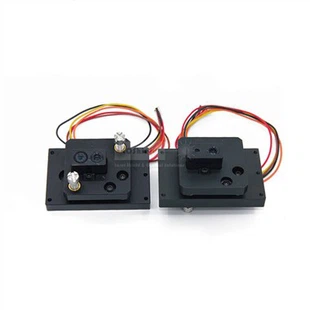

• Laser Night Vision Module

  Output Wavelength: 650nm 830nm
  Laser Color: Red light, Infrared light
  Output Power: 55-65mW
  Electric Current: 120-140mA
  Operating Voltage: 3-5V
  Product Material:...

• White Laser Module

  Laser Wavelength: 450nm
  Laser Power: 3.5W
  Luminous Flux@2.5A: 500 lumens
  Blu-ray Power @2.5A: 0.42W
  Color Temperature: 6000-8000K
  Spot Diameter: 0.5mm...

• 830nm Line Radar Laser Module

  Laser Wavelength: 830±10nm
  Laser Power: 100mw
  Laser Shape: Line
  Working Current: 180-200mA
  Working Voltage: 1.8-2.4V
  Line Width: 6M≤10mm
  Lens Angle:...

• 830nm Dot Array Laser Module

  Laser Wavelength: 830nm
  Laser Power: 200mw
  Housing Size:Φ6.5*10.5mm
  PD Voltage: 25V
  Working Current: 220-300mA
  Working Voltage: 1.8-2.8V
  DOE Dot Number:...
