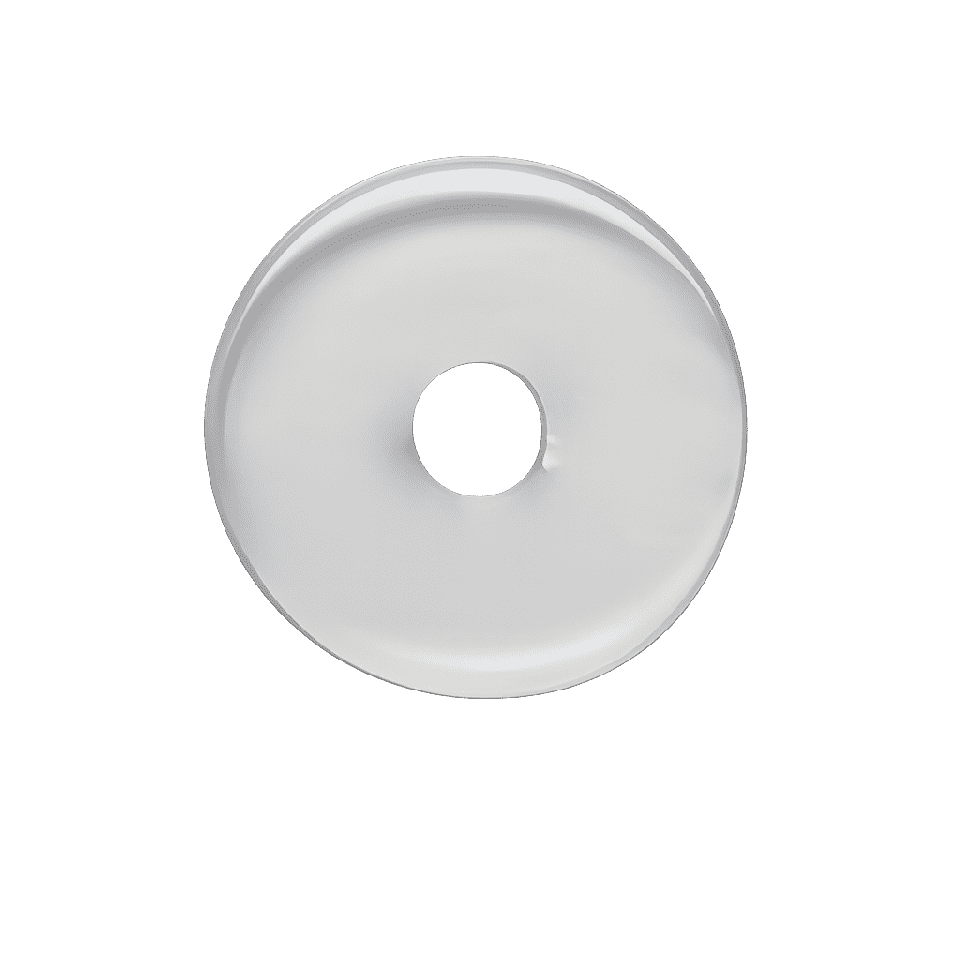

Radiation Shielding Acrylic Glass | 8mm & 12mm | 0.36mmPb / 0.53mmPb

Products Description

Why Choose Radiation Shielding Acrylic Instead of Lead Glass?

When sourcing radiation shielding acrylic, two core specs demand close attention: the actual physical thickness of the acrylic sheet, and its lead equivalent, commonly quoted as mmPb (millimeters-of-lead).

These two figures represent separate material properties, and you cannot swap one for the other.

To illustrate, our radiation shielding acrylic comes in two standard grades:

• 8mm acrylic with 0.36mmPb lead equivalency
• 12mm acrylic with 0.53mmPb lead equivalency

8 mm and 12 mm refer to the real-world physical thickness of each acrylic panel. By contrast, 0.36 mmPb and 0.53 mmPb tell you how well the material blocks X-ray radiation, compared against a defined thickness of pure lead under standardized lab testing.

What Does mmPb Actually Stand For?

mmPb, or millimeters of lead equivalence, acts as a benchmark to compare how well different materials block scattered X-rays against metallic lead.

Take a 0.36mmPb radiation shielding acrylic for example. Under its defined test setup, this panel delivers radiation attenuation matching roughly 0.36 mm of solid lead.

It is critical to clear up a common misunderstanding: this rating does not mean the acrylic sheet contains a 0.36 mm embedded lead foil. Nor does it imply 8 mm of acrylic performs the same as 8 mm solid lead.

Lead equivalency describes shielding performance, it is not a direct measurement of physical material thickness.

Why Acrylic Thickness and Lead Equivalency Do Not Line Up 1:1

Every radiation-shielding material interacts with X-rays differently, driven by its chemical makeup and density.

When you increase the thickness of lead-equivalent acrylic, its ability to absorb radiation generally goes up as well. That explains why our thicker 12 mm sheet achieves a higher Pb rating than the 8 mm variant.

Radiation Shielding Acrylic	Physical Thickness	Lead Equivalent
8mm Panel	8mm	0.36mmPb
12mm Panel	12mm	0.53mmPb

Physical thickness governs weight, overall panel dimensions, cutting, machining and on-site mounting work. Lead equivalency, on the other hand, speaks purely to how much X-ray radiation the panel can block.

Lead Equivalency Changes With X-ray Energy

You can never read a mmPb rating in isolation; the underlying test conditions always matter.

How much radiation an acrylic panel can attenuate shifts depending on X-ray beam energy. That makes test kVp, beam quality and adopted testing standards essential reference points when you assess X-ray shielding acrylic.

For B2B procurement and engineering projects, buyers should never pick a panel solely because its mmPb number seems to match project documentation. Always check what test parameters were used to certify that lead equivalency value.

We can supply full shielding test reports and supporting technical documentation to support your project review upon request.

0.36mmPb vs 0.53mmPb: How To Pick The Right Grade

A higher lead-equivalent rating is not always the best fit for every real-world installation.

The 8mm / 0.36mmPb radiation shielding acrylic panel works well for projects calling for this level of transparent radiation protection, where keeping panel weight low is a priority.

If your project demands stronger radiation attenuation while you still want the easy-to-machine, handle-friendly benefits of acrylic material, go for the 12mm / 0.53mmPb X-ray shielding acrylic panel.

Work through these practical factors before making your final selection:

• Target lead equivalency requirement
• X-ray machine type and operating kVp range
• Full-project shielding design specifications
• Overall panel dimensions
• Mounting and installation framework
• Required optical clarity and visibility
• Total weight load for supporting structures
• Local regulatory radiation-protection standards

Match Pb Equivalency To Your Full Shielding Design

Do not base your choice of radiation shielding acrylic only on physical sheet thickness.

For medical imaging rooms, equipment enclosures, observation view windows and other transparent shielding applications, your required lead equivalency should come from official project shielding specifications or professional radiation-safety assessment.

Once you confirm the target mmPb value, you can evaluate whether 8mm or 12mm radiation shielding acrylic fits, cross-checking lab-verified shielding performance, panel sizing, machining constraints and mounting conditions.

Following this workflow treats lead-equivalent acrylic as purpose-built radiation-shielding hardware, rather than just ordinary clear plastic sheeting.



Manufacturing radiation shielding materials requires more than cutting a panel to size. For transparent shielding products such as radiation shielding acrylic, material thickness, lead equivalency, optical quality, dimensional accuracy, and fabrication details all affect how the finished component can be used in an X-ray protection system.

With in-house manufacturing and fabrication capabilities, we manage the process from material inspection through custom cutting, machining, dimensional verification, surface protection, and final packing according to the confirmed project requirements.

Experience With Lead-Equivalent Shielding Materials

Our production experience covers different types of X-ray shielding materials, including transparent lead-equivalent panels and other radiation protection components.

For radiation shielding acrylic, particular attention is given to:

• physical panel thickness
• specified Pb equivalency
• sheet dimensions
• surface condition
• optical appearance
• cutting accuracy
• edge quality
• custom machining requirements

This helps ensure that the acrylic is supplied as an engineered radiation protection material, rather than simply as a general-purpose transparent plastic sheet.

Controlled Cutting and Custom Fabrication

B2B radiation shielding projects often require non-standard dimensions or components that must fit into an existing frame, equipment enclosure, observation window, or protective screen.

Depending on the confirmed material and project requirements, our in-house fabrication can support custom processing such as:

• cut-to-size acrylic panels
• custom width and height
• drilled mounting holes
• machined openings
• edge finishing
• special panel shapes
• frame or equipment integration requirements

For OEM and project-based orders, drawings can be reviewed before production so that critical dimensions and machining details are confirmed in advance.

Dimensional and Surface Inspection

A transparent shielding panel must meet both functional and visual requirements.

During production and final inspection, key items can include:

• overall width and height
• material thickness
• dimensional tolerance
• edge condition
• hole position
• surface scratches or defects
• optical appearance
• protective film condition

These checks are particularly important for custom radiation shielding acrylic panels that will be installed into accurately sized frames or equipment assemblies.

Verification of Radiation Shielding Specifications

The physical thickness of an acrylic sheet and its lead equivalency are different specifications.

For products such as 8mm / 0.36mmPb and 12mm / 0.53mmPb radiation shielding acrylic, the Pb-equivalent value should be supported by the relevant technical or test documentation and interpreted according to its stated test conditions.

Where available for the ordered product, shielding documentation can be provided for customer technical review.

For radiation protection projects, the required Pb equivalency should be confirmed before production so that the selected lead-equivalent acrylic matches the shielding specification provided by the customer, shielding consultant, or project designer.

Manufacturing Around the Customer's Application

Different buyers use radiation shielding acrylic in different ways. A medical equipment manufacturer may require a machined transparent panel, while a shielding contractor may need a custom-size observation window for integration into a larger protection system.

For this reason, we can review project information such as:

• required Pb equivalency
• acrylic thickness
• finished panel dimensions
• quantity
• drawing or CAD dimensions
• mounting-hole requirements
• edge treatment
• optical requirements
• packing requirements

This project-based approach allows us to supply custom X-ray shielding acrylic that is better matched to the final assembly and installation conditions.

From Material Supply to Fabricated Shielding Components

Our role is not limited to supplying standard radiation shielding sheets.

By combining material knowledge with in-house cutting, machining, inspection, and custom production, we can support customers who require either standard lead acrylic sheets or finished transparent shielding components prepared for installation.

For hospitals, medical equipment manufacturers, radiation shielding contractors, distributors, and OEM projects, this provides a more practical sourcing route for radiation shielding acrylic and custom X-ray protection materials where dimensions, Pb equivalency, fabrication details, and documentation need to be coordinated before production.

Nuclear medicine and PET shielding projects often require non-standard dimensions because the transparent component must fit around existing equipment, workstations, hot-lab furniture, shielding frames, or custom enclosures.

We can manufacture custom radiation shielding acrylic panels according to customer drawings and confirmed shielding requirements.

Customization can include:

• 8mm or 12mm acrylic thickness
• specified 0.36mmPb or 0.53mmPb configuration
• custom width and height
• cut-to-size panels
• drilled mounting holes
• machined openings
• special panel shapes
• edge finishing
• integration dimensions for frames or equipment
• protective packaging for international shipment

For OEM and project-based orders, customers can provide the required Pb equivalency, radionuclide or application information, panel dimensions, mounting method, equipment drawings, and quantity for technical review.

Where PET or nuclear medicine shielding requirements exceed the available Pb equivalency of the acrylic panel, a different shielding material or a combined radiation shielding solution should be considered.

This project-based approach allows custom lead acrylic for nuclear medicine and PET facilities to be specified according to the actual viewing, fabrication, installation, and shielding requirements of the application rather than using one standard panel for every radioactive-material handling environment.

Is radiation shielding acrylic suitable for nuclear medicine applications?

Yes, radiation shielding acrylic can be used as a transparent shielding component in certain nuclear medicine applications where its tested Pb equivalency matches the project requirement. Typical uses include observation panels, equipment viewing sections, custom protective screens, and shielding enclosures. The required shielding level should be based on the radionuclide, activity, geometry, distance, and radiation protection design.

Can radiation shielding acrylic be combined with lead or tungsten?

Yes. In applications requiring greater attenuation, transparent lead-equivalent acrylic can be incorporated into a larger shielding assembly that also uses lead, tungsten, steel, or other radiation shielding materials. This is common where visibility is required in one section but heavier shielding is needed elsewhere.

Can you manufacture custom lead acrylic for PET or nuclear medicine equipment?

Yes. We can support custom radiation shielding acrylic based on customer drawings or project dimensions. Custom options may include panel size, thickness, drilled holes, machined openings, special shapes, edge finishing, and dimensions for integration into equipment frames or shielding enclosures.

What information should I provide for a custom nuclear medicine shielding panel?

Useful information includes:

• required Pb equivalency
• radionuclide or application
• panel width and height
• acrylic thickness
• mounting method
• hole or opening dimensions
• equipment or enclosure drawings
• quantity
• packaging requirements

This information helps determine whether the requested lead acrylic panel is suitable for the intended shielding configuration.

Can radiation shielding acrylic be used in hot labs?

It may be suitable as a transparent component in hot-lab shielding assemblies where the required attenuation matches the acrylic's tested Pb equivalency. For higher-energy or higher-activity applications, additional shielding materials may be required.

Is lead acrylic the same as lead glass?

No. Both can provide transparent radiation shielding, but they are different materials. Lead acrylic is generally lighter, more impact resistant, and easier to machine, while lead glass is denser and is often available in higher Pb-equivalent configurations for fixed viewing windows.

Can radiation shielding acrylic be cut or drilled after production?

Depending on the material and fabrication requirements, radiation shielding acrylic can often be cut, drilled, machined, or edge-finished more easily than conventional lead glass. For shielding-critical applications, it is better to confirm all machining details before production so the finished component matches the approved design.

How should I choose between 8mm and 12mm radiation shielding acrylic?

The choice should be based primarily on the required Pb equivalency and project specification. Our 8mm panel is specified at 0.36mmPb, while the 12mm option is specified at 0.53mmPb. Panel weight, mounting structure, optical requirements, and fabrication needs should also be considered.

Can you provide shielding test documentation?

Where available for the ordered product, technical or radiation shielding documentation can be supplied for customer review. For B2B and project applications, buyers should review both the stated Pb equivalency and the test conditions under which that value was determined.
