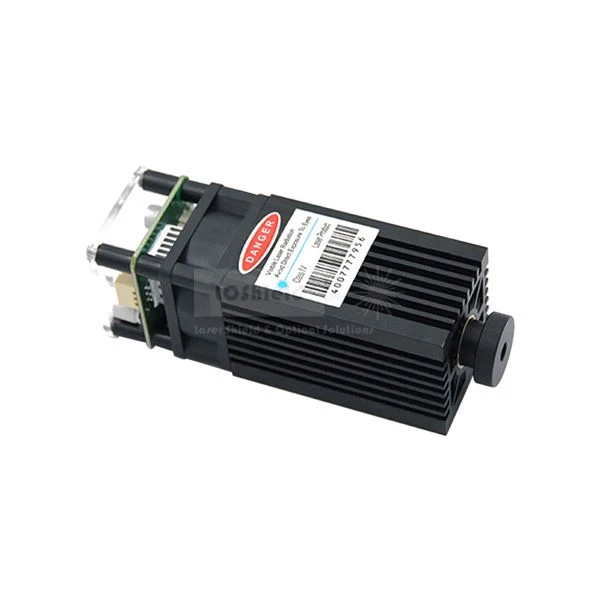

450nm 15W Focusable Blue Engraving Laser

450nm 15W Focusable Blue Engraving Laser

Laser wavelength: 450nm (blue-violet light)
Optical power: 15W (15000MW)
Drive mode: external ACC constant current drive
Cooling method: forced air cooling
Operating voltage: 12 V DC
Material: Aluminum, surface anodized
Material form: copper
Working temperature: 0-75 degrees Celsius

Chat Now
Product Introduction


450nm 15W Focusable Blue Engraving Laser before each engraving, make sure that the distance between the upper surface of the object to be engraved and the laser head (copper head) is exactly the height of the aluminum column (which can be adjusted by the lifting table).


15W laser module


Specifications:

Housing size

40*40*114.3mm

Circuit Board Size

40*40mm

Circuit Board

12V/PWM Modulation Board

Wire Rod

24# 4P2.0mm Terminal Wire
270mm

Optical Lens

φ6/Glass

Fan

12V

Product Material

Aluminum 6061/Copper H59

Product. Net Weight

295g

Items

Min

Type

Max

Unit

Condition

Optical Output Power




W

12V Power

Working Current

/



A


Operating Voltage

/

12

/

V


Laser Wavelength

450

455

460

nm


Electric Power

/



W


powerful laser module

Laser Beam Mode

Dotted

Light spot Size

Adjustable

Divergence Angle

/

Working Time

10000H

Working Mode

Pulse work

Working Temperature

0℃~70℃

Storage Temperature

-40℃~85℃


The scope of application and inapplicability of the product:

This 450nm 15W Focusable Blue Engraving Laser cannot engrave the following materials: jewelry, jade, reflective materials, colorless and transparent materials, soft materials

This 450nm 15W Focusable Blue Engraving Laser can engrave the following materials: 304 stainless steel, ceramics, wood, plastic, paper, bamboo, horn, some leather (wallet), plastic mobile phone case, rubber stamp, photosensitive stamp, sponge paper, etc.


laser cutting module


Precautions:

1. Laser protective goggles must be worn when operating our machine and laser head, and the laser beam is absolutely not allowed to irradiate the eyes of humans and animals.

⒉ Do not use it continuously for more than 60 minutes, otherwise it will affect the life of the LD due to overheating.





laser

Purple:

1. 3D printing laser engraving, etc.

2. Stage lights, star pen, laser flashlight, etc.

Blue:

1. Blu-ray cutting, welding, drilling, etc.

2. Car headlights, laser flashlights, stage lights, anti-counterfeiting, etc.

Green:

1. Laser projection

2. Commercial landmarks

3. Green light sight

4. Laser-Inspired Medical Aesthetics

5.Scientific research military / aerospace, etc.

Red:

1. Plant growth lights, lawn lights, car fog lights, etc.

3. Mole Removal, Freckle Removal, Hair Removal, Red Light Therapy Instrument, Laser Surgery, etc.
