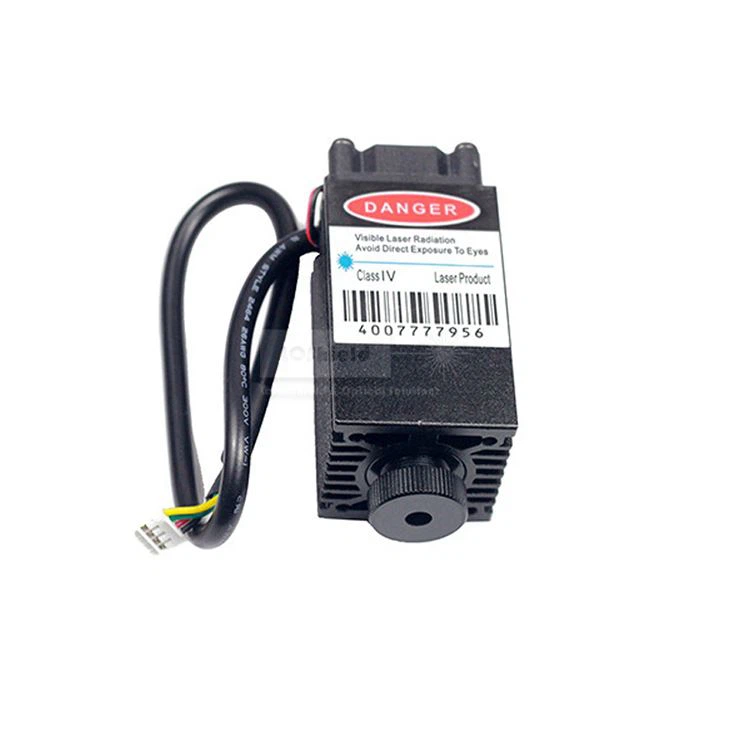

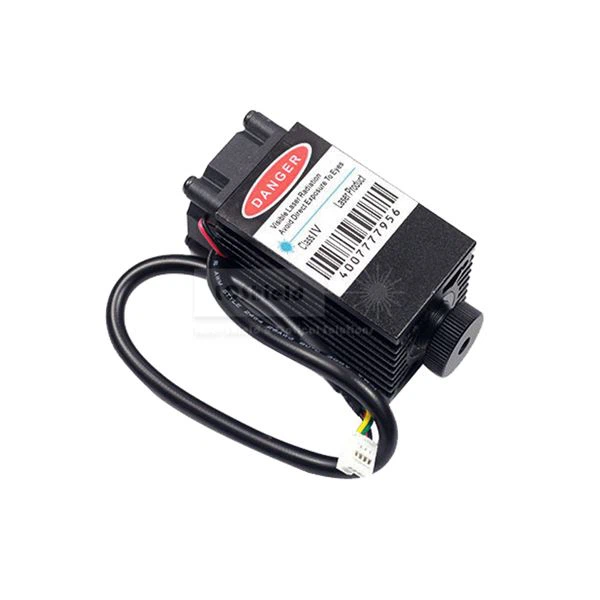

The size of the 450nm 1600mW Adjustable Focus Engraver Laser Module is 55*33*33mm. Stable performance, good consistency, and long service life. The tail of the product is connected with a special plug wire. The heat sink has strong heat dissipation performance, which can effectively ensure the stability and service life of the product. The interior of the 450nm 1600mW Adjustable Focus Engraver Laser Module is assembled with pure copper. The laser diode can be cooled quickly. Cooling DC fans, industrial heat exhaust fans. Low power consumption, fast heat dissipation, low noise, energy saving, and environmental protection.

Specifications:

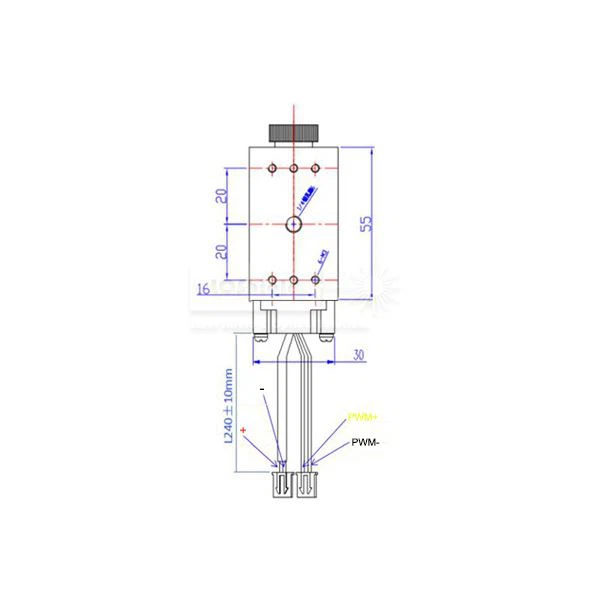

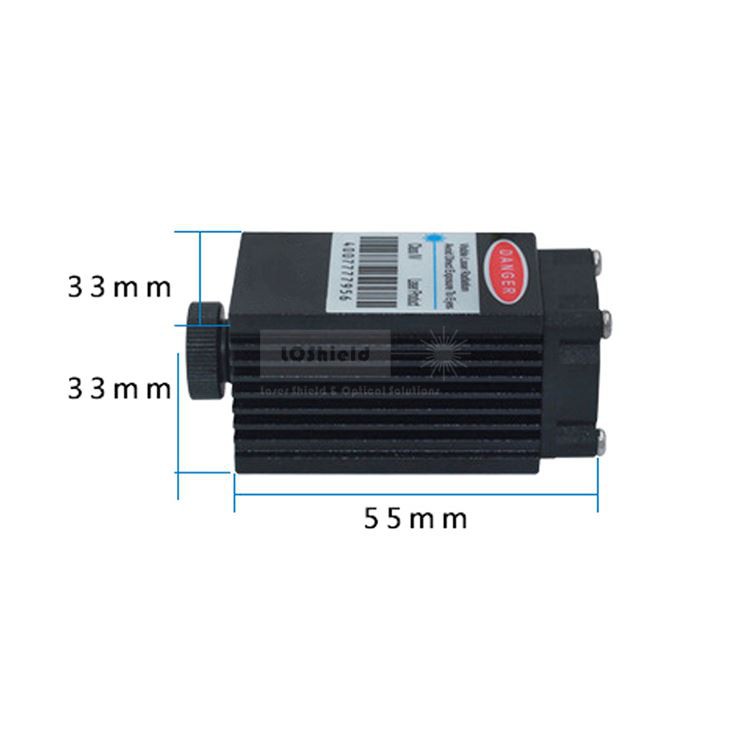

External Dimensions	55* 33* 33mm
Laser Wavelength	450±10nm
Output Power	1-1.2W
Operating Voltage	12V
Operating Current	750-850mA
Storage Temperature	-40℃~85℃
Operating Temperature	-20℃~70℃
Spot Pattern	Dotted
Modulating System	PWM
Product Weight	109g
Spot Size	Adjustable
Working Time	10000H

laser head engraving module

Product Advantages:

1. 450nm 1600mW Adjustable Focus Engraver Laser Module can adjustable focus, with temperature control. Imported high-quality glass focusing lens.

2. The laser adopts the originally imported diode, which is small in size, clear in the light, large in the beam angle, and high in straightness.

3. Engraving Laser Module Can be Customized. For different customer needs, and want to match with their own engraving machine. The color, structure size, and spot size of our engraving laser modules can be customized.

4. Laser line power uniformity up to 95%, laser temperature, and power stability fluctuation less than 0.6%, 85% of laser line segments, high power accounted for as high as 98%, laser linearity deviation is less than 0.05%

Application:

450nm 1600mW Adjustable Focus Engraver Laser Module Can engrave the following materials: two-color plate, bamboo wood, leather, rubber plate, stone, artificial stone PVC plate, wood products, metal plate, crystal, Corian, paper, alumina, resin, and spray metal.

Laser module

TIPS:

When using this product, please wear laser goggles to protect your eyes and prevent laser damage to your eyes. It is strictly forbidden to irradiate others with laser light, especially the eyes.
