450nm 1600mW Mini Laser Engraving Module

Laser Wavelength: 450nm
Output Color: Blue Laser
Power: 1.6W
Size: 16mm*59.5mm
Input Voltage: <6V
Input Current: 1A
Laser Beam Mode: Dotted
Light spot Size: Adjustable
Working Mode: Pulse work
Application: 3D Printer
Storage Temperature：-40℃~85℃

90% of the 450nm 1600mW Mini Laser Engraving Module laser tubes used by our company are imported tubes with a minimum lifespan of more than 10,000 hours. All laser products are assembled and debugged during production, and 450nm 1600mW Mini Laser Engraving Module are tested before leaving the factory; Optical products are dust-proof, and laser products are packed with anti-static bag packaging.

diy laser module

Specifications:

Product Name	DIY Laser
Output Wavelength	450nm
Output Power	1.6W
Output Color	Blue Laser
Input Voltage	<6V
Input Current	1A
Storage Temperature	-40℃~85℃
Operating Temperature	0℃~70℃

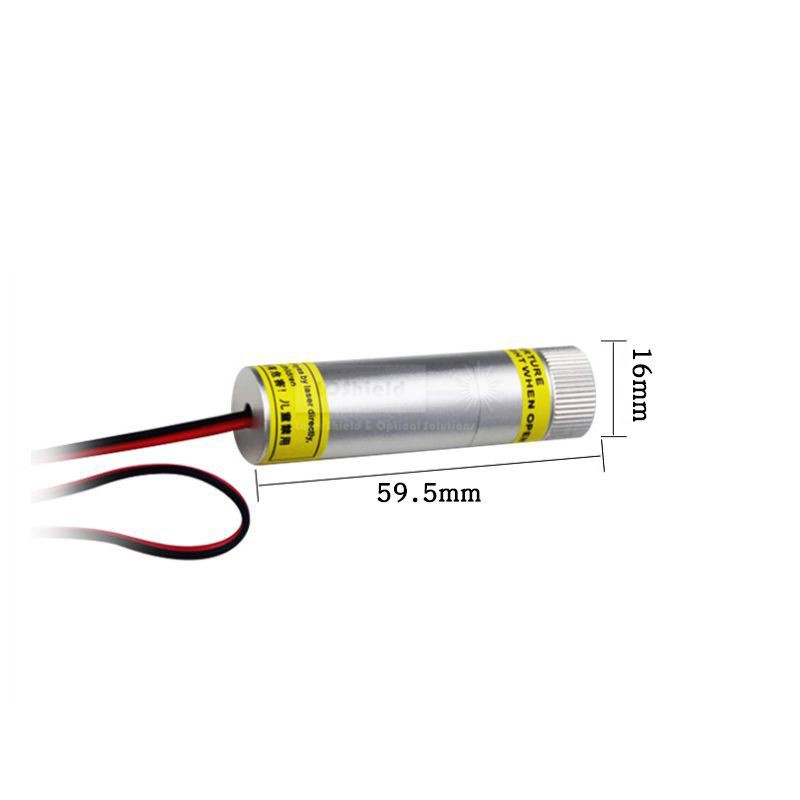

External Dimensions	16*59.5mm
Working Time	8000H
Wire Length	25MM
Spot Size	<15mm
Irradiation Distance	8M

Advantage:

1. Originally imported laser tube

450nm 1600mW Mini Laser Engraving Module uses an imported laser diode with a working time of more than 10,000 hours.

2. Shell aluminum material

The 450nm 1600mW Mini Laser Engraving Module shell is made of aluminum and has been oxidized and insulated, with excellent hardness and corrosion resistance

3. Customization

Quality assurance, the structure size is 16*59.5mm, and other voltages can also be customized.

laser module for 3d printer

4. Zoom in on highlights by adjusting focus by turning

5. The default lens is acrylic material, with optional glass optics

6. Features: small spot/high-temperature resistance/small spot change.

smart laser module

Customized Consulting:

You can contact the customization staff for online consultation. At the same time, please tell us your customization content and specific process requirements in detail as much as possible.

The minimum order quantity is 100pcs due to the quantity requirements of the workshop, and the customized quotation can be printed in our company.

Mainly according to the style, quantity, production process, and preferred material, we will give you a reasonable price according to your actual requirements.

3d printer laser module

Company Advantage:

On-time delivery, quality assurance, cheap and high quality, after-sales service commitment!

TIPS:

This component is sensitive to static electricity. Please do not directly touch the laser tube body without taking anti-static measures.

This product must have a qualified drive circuit to work normally. The voltage of different powers is the same, but the working power is different, the drive current of the circuit to the tube needs to be controlled within a safe range, otherwise, it will affect the life.
