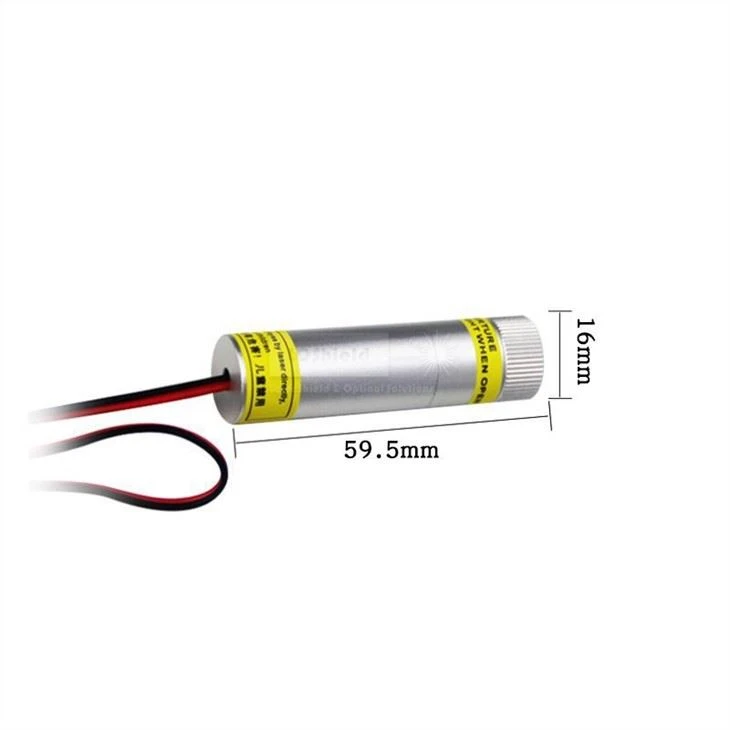

405nm 350mW Mini 3D Printer Laser Module is a high-power blue-violet laser module with ultra-high brightness for indoor and outdoor use. A clear and bright aerial beam can be seen in dark environments or in the presence of smoke. 405nm 350mW Mini 3D Printer Laser Module materials that can be engraved are sponge paper, printing paper, thin skin, wood, plastics, etc. that are easy to burn.

diy laser module

Laser Diode Reverse Voltage	2V
Laser Beam Mode	Dotted
Light spot Size	Adjustable
Working Time	8000H
Working Mode	Pulse work
Working Temperature	0℃~50"C
Storage Temperature	-40℃~85℃

Items	Min	Type	Max	Unit	Condition
Optical Output Power	400	350	450	mW
Threshold Current	/	140	200	mA	350mw
Working Current	250	325	400	mA	350mw
Operating Voltage	/	4.5	5.5	V	350mw
Laser Wavelength	400	406	414	nm	350mw
Wire Length	/	25	/	mm	350mw

Advantage:

◆ 405nm 350mW Mini 3D Printer Laser Module with a cooling fan, when the temperature rises to a certain level, it will automatically start to cool down, with constant temperature control, and super stability;

◆ Ultra-high brightness, suitable for indoor and outdoor use;

◆ New original high-power imported die, high-quality lens, strong output power, and long life;

laser module for 3d printer

◆ 405nm 350mW Mini 3D Printer Laser Module spot size can be adjustable to meet your different requirements;

◆ The shell is made of aviation aluminum plated insulating paint, which can not only fully dissipate heat, but also resist shock, drop, and static electricity;

smart laser module

◆ 405nm 350mW Mini 3D Printer Laser Module intelligent driver board with imported IC can supply power in an ultra-wide range of 9-12V, and can send AC 220V to DC 12V power supply, plug and play;

◆ High-temperature resistance, anti-corrosion DC plug wire, suitable for all-weather use in all environments;

◆ Wavelength, power, wire length, working distance, spot effect, etc. can be customized according to customer requirements, you want, here are!

3d printer laser module

Company Profile:

LOS TECH CO., Ltd provides different application fields of laser equipment parts, including parts of various laser supplies, laser diodes, laser modules, laser engraving modules, fiber lasers, etc. It involves many types and is comprehensive. Can be used in various industries, such as stage laser light, laser level, laser beauty instruments, laser pointer, bar code scanners, anti-theft alarm systems, industrial detectors, machining positioning, military gun sight, laser guidance, and other industries. We have a team with strong creativity, technology, and proficiency in laser module products, able to provide you with exclusive customized products according to your requirements, and can provide different field's customers with the best solutions.

Safety Warning:

1. Do not look directly at the laser light.

2. The operation must be in accordance with the regulations of this operation manual, and do not disassemble the product without authorization.

3. Please do not turn on the power supply or turn on the rear light source before the installation is completed.

4. Please ensure that the wiring is intact and not damaged before installation.

5. Before turning on the power, check whether the plug is firmly inserted, and the power cord should be completely connected.

6. This product should be used in a dry, clean, and static-free environment, avoiding high temperature, high humidity, and severe vibration and impact.

TIPS:

1. This product is an electronic component product, which is sensitive to static electricity and dust. It needs to be isolated from static electricity to ensure that it is used in a dust-free condition; it must be installed in structural parts for long-term lighting and used to dissipate heat to ensure Stability, consistency, and longer life.

2. The company's products are strictly inspected by special departments before shipment to ensure that there are no problems before shipment.

3. If you are interested in our products, please contact us or leave a message, and we will quote you as soon as possible.
