10km Laser Rangefinder Module
Product Introduction
10XLD13B adopts the 1535nm erbium glass laser module independently developed by Xinalnd, which has the characteristics of low power consumption, compact structure, high precision, long measuring distance and human eye safety.
Maximum measuring range: NATO target≥10000m ; Typical target≥15000m
Ranging accuracy ±1m
Measurement accuracy ≥ 98%
Weight ≤230g
Product features
1. Integrated structural design, shock and vibration resistance, high reliability, strong environmental adaptability;
2. 1535nm pumped Q-switched erbium glass laser integrated structure design and end-face multi-point sealing installation mode, strong anti-misadjustment ability, durable, long working life and human eye safety;
3. The internal interface of the circuit is all welded wire direct connection process, solid and reliable, which can avoid short circuit or poor contact caused by loose connector, oxidation and water vapor, and improve product reliability and life.
Product Paramenters
|
Item |
Index |
|
|
Model |
10XLD13B |
|
|
Operating wavelength |
1535nm ±10nm |
|
|
Ranging range |
50m-15000m |
|
|
Ranging performance |
15000m |
Typical target, visibility ≥ 25km |
|
13000m |
Typical Large target, visibility ≥ 25km |
|
|
10000m |
Visibility ≥ 25km, target with 0.3 reflectivity for 2.3m × 2.3m vehicles |
|
|
Humidity |
≤ 60% |
|
|
Ranging accuracy |
±1m |
|
|
Accuracy rate |
≥98% |
|
|
Range resolution |
≤50m |
|
|
Divergence angle |
≤0.3mrad |
|
|
Ranging frequency |
Once,1hz,5hz,10hz |
|
|
Size |
≤95mm×60.5mm×71.5mm |
|
|
Voltage |
18V～36V |
|
|
Working power consumption |
Average power consumption: ≤ 4W |
|
|
Standby power consumption |
≤1.8W |
|
|
Working temperature |
-40℃～+60℃ |
|
|
Storage temperature |
-55℃～+70℃ |
|
|
Weight |
≤230g |
|

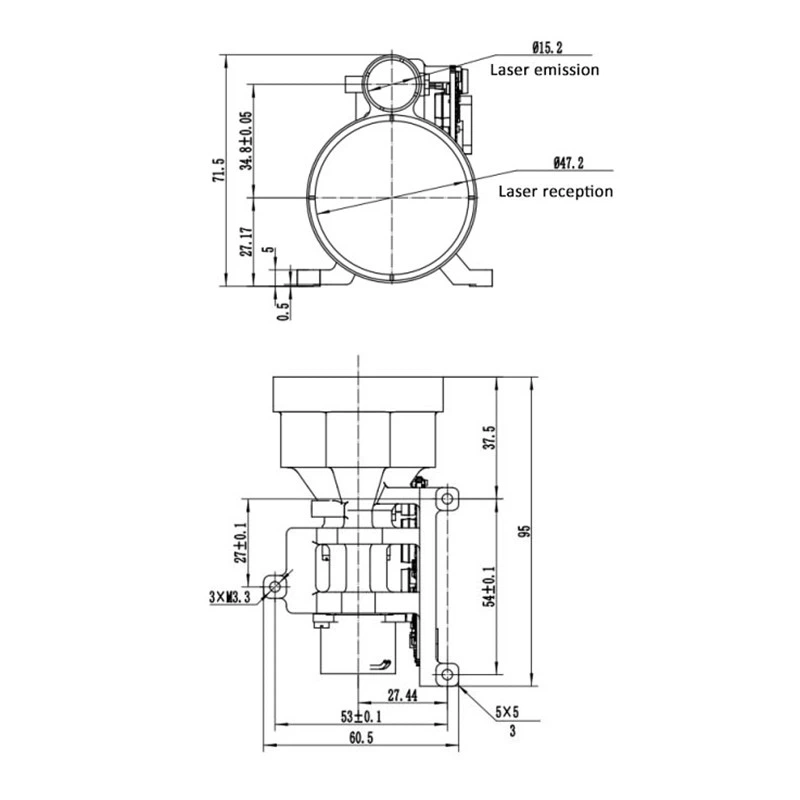

Dimension
Product function
● Laser ranging function;
● Power-on and temperature collection function;
●Range gating function;
●Head and end target ranging function;
●power reverse protection function;
●Self-check function;
●Accumulate laser emission times function;
●With serial port update program function;
●Provides a separate power-on control signal function.
Electrical Interface
Pin definition of power supply and communication port at rangefinder end
|
Pin number |
Number |
Transmission direction |
Notes |
|
P-1 |
VIN+ |
Input power positive pole |
Upper computer power supply |
|
P-2 |
VIN+ |
|
|
|
P-3 |
VIN+ |
|
|
|
P-4 |
Power-on control+ |
Power-on control+ |
Short-circuit P-12 to power on |
|
P-5 |
RS422_TXD+ |
Signal output port |
Rangefinder to host computer |
|
P-6 |
RS422_RXD+ |
Signal input port |
Upper computer to rangefinder |
|
P-7 |
RS422_GND |
Communication ground wire |
|
|
P-8 |
NC |
Suspended |
|
|
P-9 |
VIN- |
Input power negative pole |
Upper computer power supply |
|
P-10 |
VIN- |
|
|
|
P-11 |
VIN- |
|
|
|
P-12 |
Power-on control- |
Power-on control- |
Short-circuit P-4 to power on |
|
P-13 |
RS422_TXD- |
Signal output port |
Rangefinder to host computer |
|
P-14 |
RS422_RXD- |
Signal input port |
Upper computer to rangefinder |
|
P-15 |
NC |
Suspended |
|
