405nm 350mW Engraving Adjustable Focus Lasers

405nm 350mW Engraving Adjustable Focus Lasers

Wavelength: 405nm
Power: 350mW
Housing size: φ33*33*55mm
Circuit Board Size: 25*17mm
Circuit Board: 12V/PWM Modulation Board
Wire Rod: 26# 2P2.54mm Terminal Wire 250mm
Optical Lens: φ6/Glass
Fan: 12V
Product Material: Aluminum 6061

Chat Now
Product Introduction

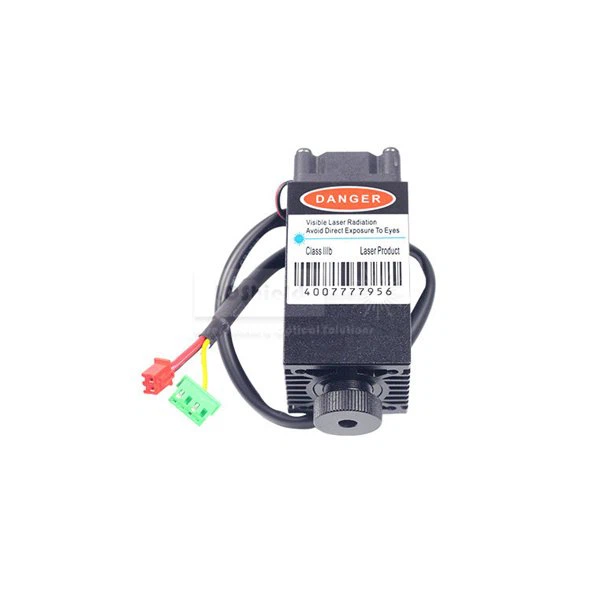

405nm 350mW Engraving Adjustable Focus Lasers

Product Advantages:

1. 405nm 350mW Engraving Adjustable Focus Lasers can Adjustable focal length, with TTL modulation. Rotate the head of the laser left and right, you can adjust the focal length according to the distance of working distance, and adjust to the appropriate spot size.

2. Adopt the new original imported glass lens and laser diode, with long service life and good stability. 350mW output power is stable.

405nm-350mW-Engraving-Adjustable-Focus-Lasers

Specifications:

Housing size

φ33*33*55mm

Circuit Board Size

25*17mm

Circuit Board

12V/PWM Modulation Board

Wire Rod

26# 2P2.54mm Terminal Wire 250mm

Optical Lens

φ6/Glass

Fan

12V

Product Material

Aluminum 6061

Product Net Weight

108g


Items

Min

Type

Max

Unit

Condition

Optical Output Power

400

/

450

mW

12V Power

Working Current

/

350

450

mA


Operating Voltage

/

12

/

V


Laser Wavelength

400

406

414

nm


Electric Power

/

4.2

5.4

W



Laser Beam Mode

Dotted

Light spot Size

Adjustable

Divergence Angle

/

Working Time

10000H

Working Mode

Pulse work

Working Temperature

0℃~50℃

Storage Temperature

-40℃~85℃

Enclosure Polarity

/


3. 405nm 350mW Engraving Adjustable Focus Lasers circuit board uses a 12V/PWM modulation board, 12V Cooling DC fan, industrial heat exhaust fan, low power consumption, and low noise, heat dissipation performance is strong, which can effectively ensure the stability and service life of the product.

best laser module for cnc

4. The national standard hole size is adopted, the diameter of the small hole is 6-M3, and the center hole is 1/4.

diy laser module

5. 405nm 350mW Engraving Adjustable Focus Lasers Can be Customized, For different customer needs, and want to match with their own engraving machine. The color, structure size, and spot size of our engraving laser modules can be customized.


Application:

405nm 350mW Engraving Adjustable Focus Lasers can engrave the following materials: wood, some plastics, paper, bamboo, horns, thin leather (purses), rubber stamps, photosensitive stamps, printing paper (mainly used for engraving, fewer materials that can be cut), sponge paper materials that are easy to burn.

The following materials cannot be engraved: metals (regardless of thickness), stones, ceramics, jewelry, reflective materials, transparent glass, ivory, colorless transparent materials, some white plastics (generally very smooth plastics are difficult to engrave)
