650nm 5mw Red Line Laser Diode Module

Wavelength: 650nm
Output Power: <5mW
Beam Shape: Line
Dimension: 12mm×40mm
Operating Voltage: DC3V~5V
Operating Current: DC5V≤200mA; DC3V≤300mA
Line Width: 1mm @ 3mm
Operating Temperature: 0 ~ +60℃
Storage Temperature: -40 ~ +85℃
Lifetime: >8000hours
Accessories: Mount and power supply

The 650nm 5mw Red Line Laser Diode Module is a high-brightness red laser emitting device with a wide range of applications. This module uses a 650nm wavelength laser light source with a power of 5mw, and is suitable for various scenarios that require red laser indication.

The module uses plastic lenses for collimation and focusing, which can focus the laser light into long and thin lines, providing clear visual effects. Branded diodes ensure the stability and reliability of the laser light source, making it less likely to be damaged during long-term use.

650nm 5mw line laser module

650nm 5mw Red Line Laser Diode Module usually adopt a miniaturized design and are easy to carry and use. Its shell is generally made of aluminum and has good durability and protective properties. In addition, it is equipped with a series of adjustment devices to adjust the laser line width as needed.

Specifications:

Wavelength	650nm
Output Power	≤5mW
Dimension	12mm×40mm
Operating Voltage	DC3V~5V
Operating Current	DC5V≤200mA; DC3V≤300mA
Line Width	1mm @ 3mm
Operating Temperature	0 ~ +60℃
Storage Temperature	-40 ~ +85℃
Light Opening Angle	90°～120°
Optical Lens	Optical Coated Glass Lens
Lifetime	>8000hours
Accessories	Mount and power supply
Warranty	1 year

In addition, the module also has the function of adjustable line width. Users can adjust the thickness of the laser line as needed to meet the requirements of different applications. At the same time, the module also comes with a power supply, which is convenient for users to use directly without the need for additional power supply equipment.

Red line laser modules are widely used in industry, medical care, education and other fields. In the industrial field, it can be used for tasks such as positioning, measurement and marking; in the medical field, it can be used for operations such as surgical navigation and skin treatment; in the educational field, it can be used for teaching demonstrations and experimental demonstrations.

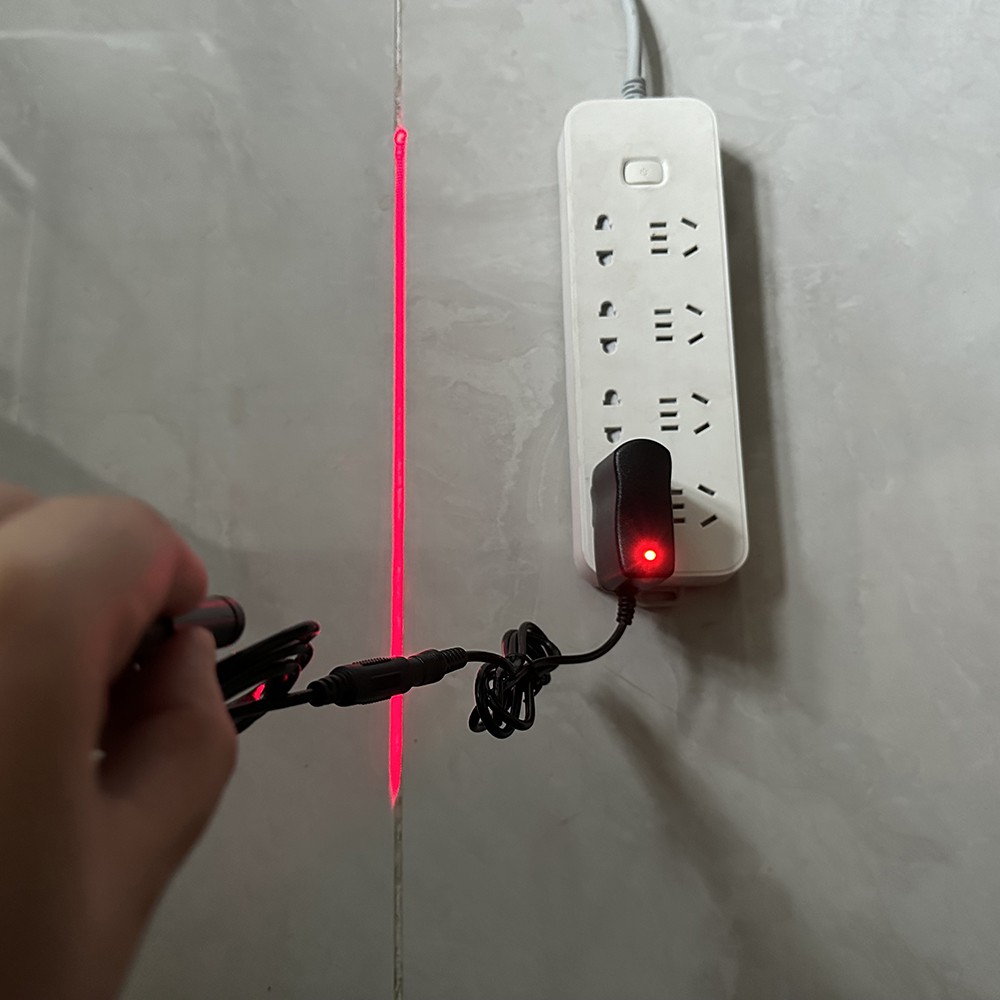

650nm 5mw line laser module

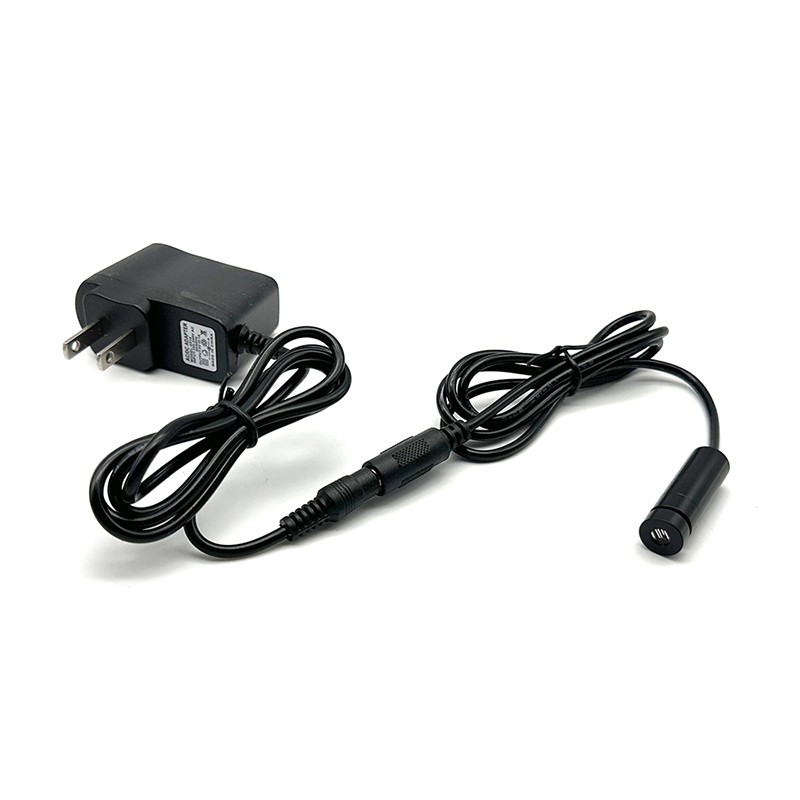

Accessories: 650nm 5mw Red Line Laser Diode Module, Power Adapter.

650nm 5mw line laser module

The red line laser module has the advantages of high brightness, good stability, and adjustable line width, and is an ideal red laser emitting device. Whether it is in the fields of industry, medical or education, it can play an important role.
