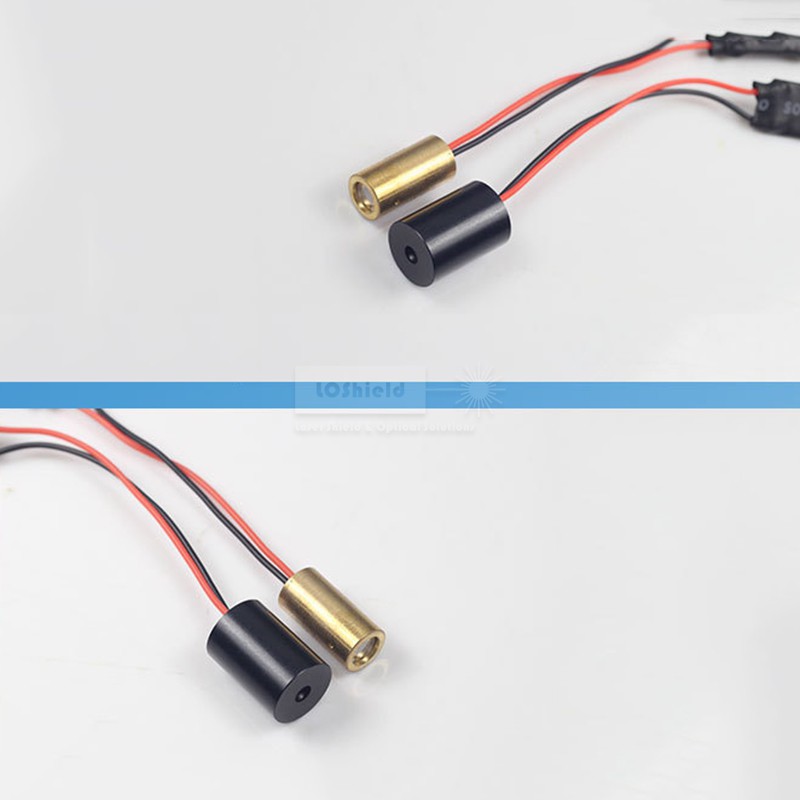

830nm Dot Array Laser Module infrared radar laser, using high-quality laser diodes as the core equipment, clear spot, multi-point laser light source DOE points 5000 points, 10000 points, 30000 points can be customized. The divergence angle is 55*65°, which is widely used in sweeping machines, intelligent robots, radars, etc. The structural size of 6*22mm can be customized, and the pipe body can be made of copper or aluminum. The product has stable performance and long service life.

830nm Dot Array Laser Module

Specifications:

Parameter	MIN	TYP	MAX	Unit
Wavelength	825	830	840	nm
Power	190	200	205	mw
Working Voltage	1.8	2.2	2.8	V
PD Voltage	25			V
Working Current	220	250	300	mA
Distance	0.3	-	10	m
Size	6.5*10.5			mm
Working Temperature	-20	-	50	℃
Storage Temperature	-40	-	80	℃
DOE NO.	3000			pcs
Life	10000			H

The 830nm Dot Array Laser Module can customize various laser products according to customer needs, welcome to map customization. The light output band is optional from visible light to invisible light; point, line, cross, or other DOE laser patterns can be customized; the external structure size can be customized, and the tube body can be copper or aluminum.

The intelligent and customizable 830nm Dot Array Laser Module can easily identify objects such as walls, large pieces of furniture, and height from the ground to avoid collisions. Its point-like modules are cost-effective and can provide personalized laser modules according to application scenarios. The principle of obstacle avoidance sensing is: projecting a beam of light, judging the deformation of the beam, and obtaining obstacle information.
