808nm 1064nm 755nm 940nm Diode Laser Stacks For Hair Removal And Industry Laser Diode Chip
1
3
4

808nm 1064nm 755nm 940nm Diode Laser Stacks For Hair Removal And Industry Laser Diode Chip

Model number：BML
Output Wavelength：808/1064/755/940 Optional nm
Wavelength：±15 nm
Bar quantity ：24 Pcs
Bar interval：1.76 W
Light size：21.5*X19.3 mm X mm
Angel of divergence： Fast≤31°；slow≤8°
Optical collimation： / /
Working current ：≤50 A
Working voltage：1.8V/Bar V
Duty cycle：≤10 %
Pulse width：1~80 msec
Frequency：1~10 Hz
Water quality ： Distilled or deionized water(Filtration system≤30um) /
Water temperature ：18~32 ℃
Water discharge：3~4.5 lpm

Chat Now

Product Introduction

Specification

Output Wavelength：808/1064/755/940 Optional nm
Wavelength：±15 nm
Bar quantity ：24 Pcs
Bar interval：1.76 W
Light size：21.5*X19.3 mm X mm
Angel of divergence： Fast≤31°;slow≤8°
Optical collimation： / /
Working current ：≤50 A
Working voltage：1.8V/Bar V
Duty cycle：≤10 %
Pulse width：1~80 msec
Frequency：1~10 Hz
Water quality ： Distilled or deionized water(Filtration system≤30um) /
Water temperature ：18~32 ℃
Water discharge：3~4.5 lpm

Product Description

1.Gold tin packaging.
2.High reliability and stability.
3.Standard industrial structure.
4.Wide range of customer application conditions.
5.Customized processing according to customer requirements.
6.The divergence angle of light is small.
7.Optical collimation spot can be customized.

product-1280-1280

Vertical and Horizontal diode laser stacks and two-dimensional arrays, with power into the multi-kW range, for pumping, directed energy, hair removal, and materials processing.

Continuous Wave (CW) Stacks - microchannel cooling and uses it to enable optimum thermal management at high powers.
Pulsed Stacks - Covering QCW to long pulse conditions with conduction cooling and tap-water cooling options.
Broadest Wavelength Range - The range from 638 nm up to 2200 nm includes all major solid-state and fiber laser pump wavelengths as well as wavelengths used for defense, materials processing and medical aesthetics.

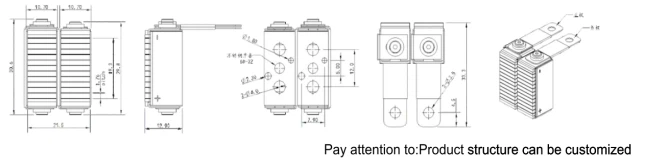

product-645-164
