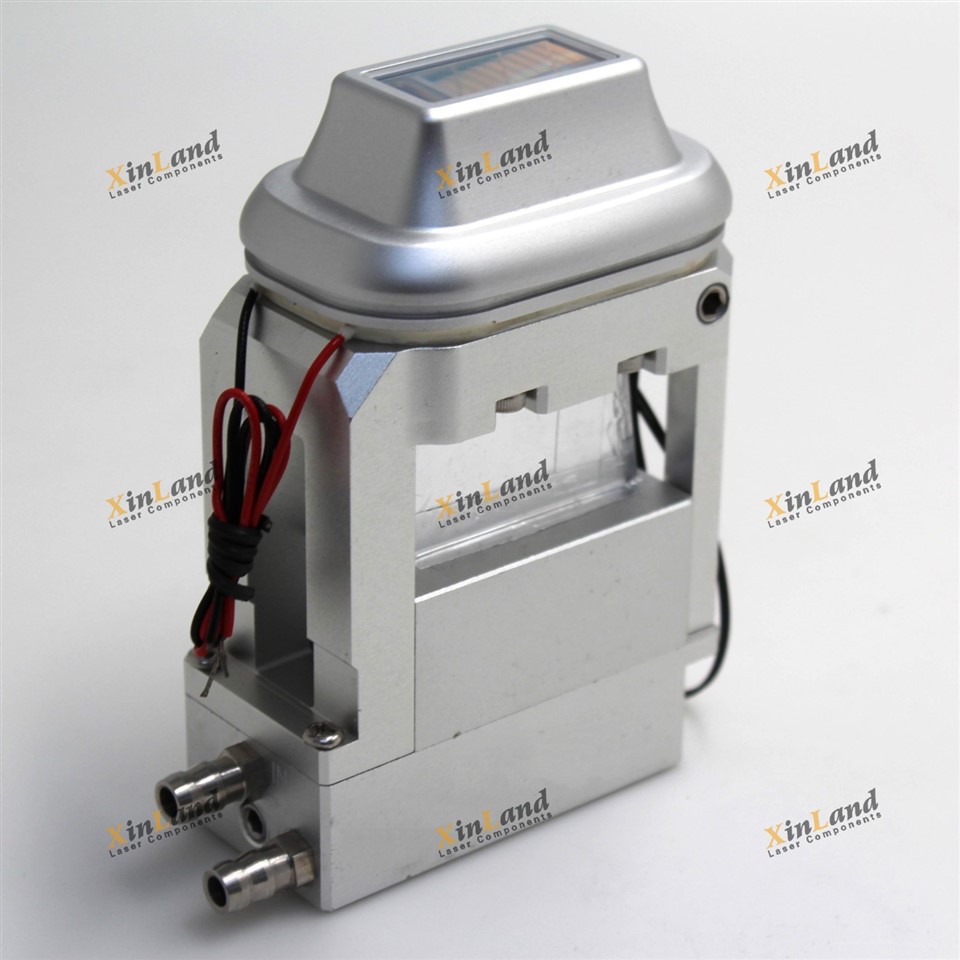

1000W 1200W 1600W 808nm 1064nm 755nm 940nm Laser Diode Stacks 10 12 16bars Diode Laser Chip For Hair Removal Handle
IMG_1732
IMG_1733
IMG_1734

1000W 1200W 1600W 808nm 1064nm 755nm 940nm Laser Diode Stacks 10 12 16bars Diode Laser Chip For Hair Removal Handle

Model number：CLE
Output Wavelength：808/1064/755/940 Optional nm
Wavelength：±15 nm
Bar quantity ：10 12 16 Pcs
Peak Power：1000 1200 1600 W
Bar interval：2.95 2.95 2.15 m
Light size：10*26.7/10*32.6/10*32.4 mm X mm
Angel of divergence：Fast≤31°；slow≤8°
Wavelength：drigt coefficient 0.28 nm/℃
Optical collimation：Customization /
Working current ：≤120 Typical value 95 A
Working voltage：1.8/Bar V
Threshold Current：≤19 A
Slope Efficiency per Bar ：≥1.1 W/A
Power Conversion Effciency：250 %
Duty cycle：≤20 %
Pulse width：1~100 msec
Frequency：1~10 Hz
Water quality ：Distilled or deionized water(Filtration system≤30um) /
Water temperature ：18~28 ℃
Water pressure：0.3~0.4 Mpa
Water discharge：3~4.5 lpm

Chat Now

Product Introduction

Specification

Output Wavelength：808/1064/755/940 Optional nm
Wavelength：±15 nm
Bar quantity ：10 /12 /16 Pcs
Peak Power：1000 /1200/1600 W
Bar interval：2.95 /2.95 /2.15 m
Light size：10*26.7 /10*32.6 /10*32.4 mm X mm
Angel of divergence：Fast≤31°;slow≤8°
Wavelength：drigt coefficient 0.28 nm/℃
Optical collimation：Customization /
Working current ：≤120 Typical value 95 A
Working voltage：1.8/Bar V
Threshold Current：≤19 A
Slope Efficiency per Bar ：≥1.1 W/A
Power Conversion Effciency：250 %
Duty cycle：≤20 %
Pulse width：1~100 msec
Frequency：1~10 Hz
Water quality ：Distilled or deionized water(Filtration system≤30um) /
Water temperature ：18~28 ℃
Water pressure：0.3~0.4 Mpa
Water discharge：3~4.5 lpm

Product Description

Product Features:
1.Gold tin packaging.
2.High reliability and stability.
3.Standard industrial structure.
4.Wide range of customer application conditions.
5.Collimation can be added.
Main applications:
1.Laser hair removal.
2.pumping.
3.Laser illumination.

product-2000-2000

Vertical and Horizontal diode laser stacks and two-dimensional arrays, with power into the multi-kW range, for pumping, directed energy, hair removal, and materials processing.

Continuous Wave (CW) Stacks - microchannel cooling and uses it to enable optimum thermal management at high powers.
Pulsed Stacks - Covering QCW to long pulse conditions with conduction cooling and tap-water cooling options.
Broadest Wavelength Range - The range from 638 nm up to 2200 nm includes all major solid-state and fiber laser pump wavelengths as well as wavelengths used for defense, materials processing and medical aesthetics.

Contact Details:

If you have any ideas, welcome to talk with us. No matter where our customers are and what our requirements are, we will follow our goal to supply high quality, low price, and best service for our customers.

product-1-1 Email: info@loshield.com
