Product Overview

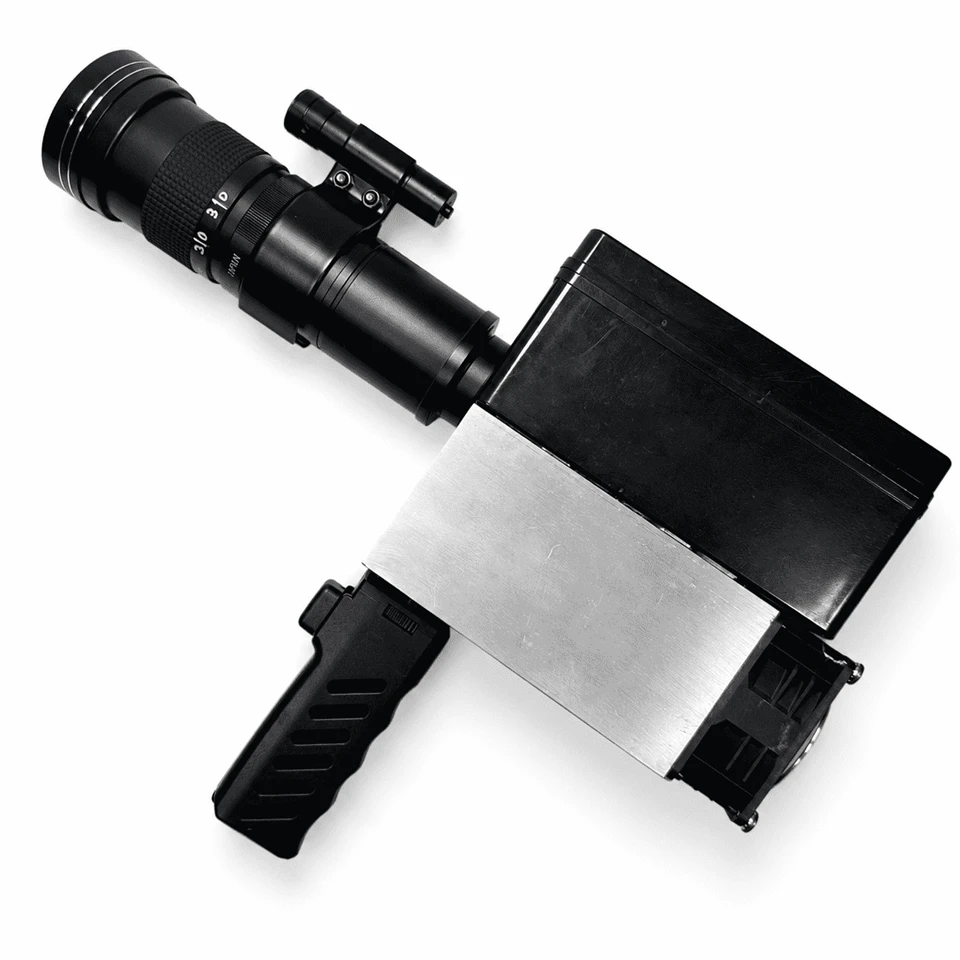

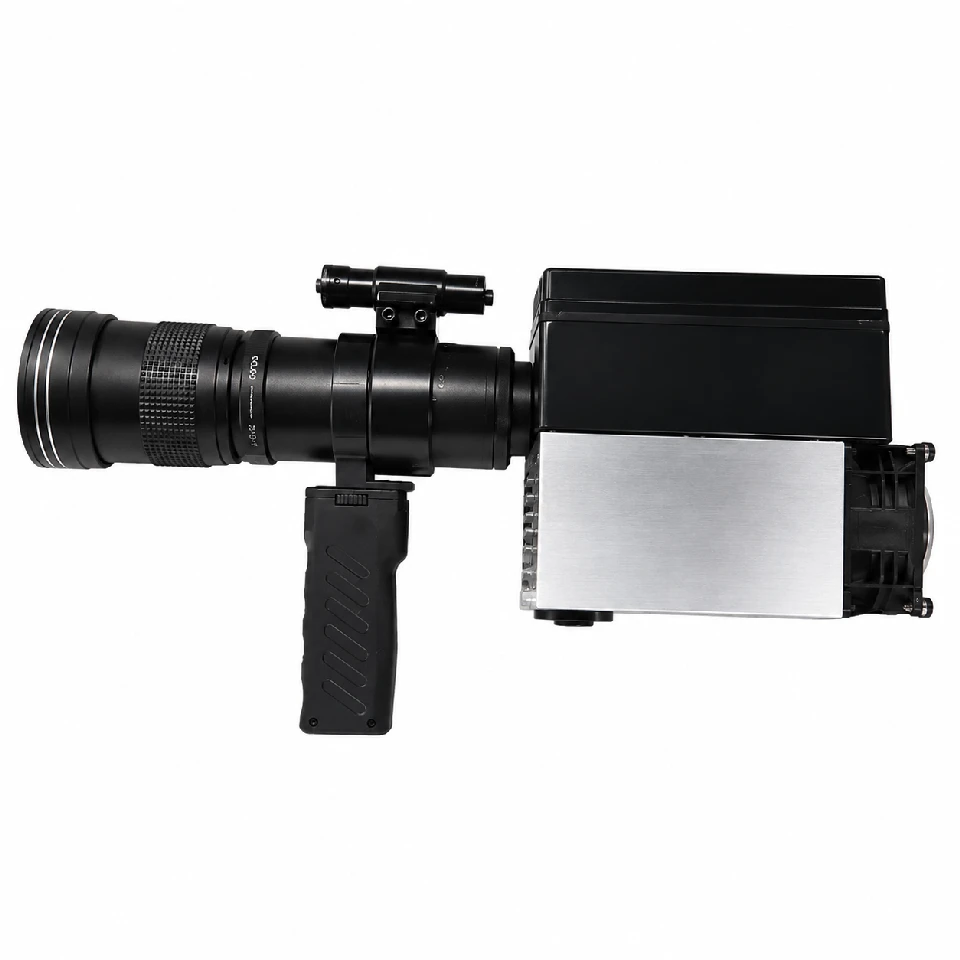

915nm Direct-Beam Laser Emitter with MAX Photonics Source, Wireless Remote and Manual Focus
The 260W Split-Type High-Power Laser System combines a powerful 915nm direct-beam laser emitter with a separate 48V rechargeable battery pack, wireless remote control, manually adjustable focus, and a non-coaxial green aiming light.
Powered by a MAX Photonics laser source, the system is designed for controlled optical testing, laboratory demonstrations, material-response evaluation, equipment research, and other authorized professional applications.
Its split-type structure separates the battery from the main laser unit, reducing the weight of the handheld section and making battery charging, replacement, storage, and transportation more convenient.
Key Features
260W Optical Output
The system provides up to 260W optical output power with approximately 470W electrical power consumption, delivering concentrated direct-beam output for professional optical testing and controlled experimental use.
MAX Photonics Laser Source
The device uses a MAX Photonics laser source, offering stable optical output and integrated Chinese laser-core technology.
Split-Type Battery Design
The main laser unit and battery pack are separated, offering several practical advantages:
- Reduced weight on the main unit
- Easier battery charging and replacement
- More convenient storage and transportation
- Improved flexibility for tripod-mounted operation
- Easier preparation of backup battery packs
The battery is rated at 48V, 12Ah and weighs approximately 3.25kg.
Wireless Remote Control
The laser output is controlled using a wireless remote switch, allowing the operator to activate the system from a safer and more stable position.
Non-Coaxial Green Aiming Light
The auxiliary green aiming light is mounted separately from the main 915nm laser output.
Because the aiming light and main beam are not coaxial, their relative positions change slightly according to distance. The aiming alignment should therefore be checked and adjusted for the intended working distance before use.
Manual Focus Adjustment
The laser focus must be manually adjusted according to the operating distance. Correct focusing is important for achieving a concentrated and stable optical spot.
45°C Thermal Protection
The device includes an internal thermal-protection system. When the operating temperature reaches approximately 45°C, the system automatically cuts power to protect the internal components.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Split-Type High-Power Laser System |
| Optical Output Power | 260W |
| Laser Source Brand | MAX Photonics |
| Main Wavelength | 915nm |
| Electrical Power | Approximately 470W |
| Battery Voltage | 48V |
| Battery Capacity | 12Ah |
| Battery Weight | Approximately 3.25kg |
| Main Unit Weight | Approximately 2.98kg |
| Weight Reference | Excludes battery and tripod |
| Laser Output Type | Direct beam / straight beam |
| Focus Adjustment | Manual focus |
| Auxiliary Aiming Light | Green laser |
| Aiming Configuration | Non-coaxial |
| Control Method | Wireless remote control |
| Thermal Protection | Automatic shutdown at approximately 45°C |
| Summer Runtime | Approximately 30–40 seconds, ±5 seconds |
| Winter Runtime | Approximately 10 seconds longer under suitable conditions |
Actual operating time varies according to ambient temperature, device starting temperature, battery condition, ventilation, focusing conditions, and previous use.
How the Non-Coaxial Aiming System Works
The green aiming light and the main 915nm laser beam travel along two separate optical paths.
For preliminary alignment, the two spots should be checked on a suitable non-reflective test surface at the intended operating distance. Since the aiming light is not coaxial with the main beam, the spacing between the two spots may change when the distance changes.
The aiming system is intended only as a visual reference and should not be treated as a precision rangefinder or automatic targeting system.
Thermal Protection and Runtime
The device is designed for intermittent operation.
In warm summer conditions, a fully cooled unit may operate for approximately 30–40 seconds, with a normal variation of around five seconds.
In cooler winter conditions, the operating time may increase by approximately 10 seconds.
When the internal temperature reaches approximately 45°C, the protection system automatically shuts down the output. The device must cool sufficiently before operation can resume.
For improved service life and thermal stability, use shorter activation periods rather than continuously operating until thermal shutdown.
Package Contents
- 1 × Main laser unit with focusing lens
- 1 × 48V 12Ah rechargeable battery
- 1 × Battery charger
- 1 × Tripod
- 1 × Protective carrying case
Package contents may vary according to the selected configuration. Please confirm the final package before ordering.
Important Safety Information
This is an extremely high-power laser system and must only be operated by trained adults in controlled environments.
- Never point the device at people or animals.
- Never direct the beam toward aircraft, vehicles, roads, buildings, windows, or public areas.
- Avoid mirrors, polished metal, glass, water, and other reflective surfaces.
- Use certified protective eyewear suitable for the actual wavelength and optical density.
- Protective eyewear does not make direct beam exposure safe.

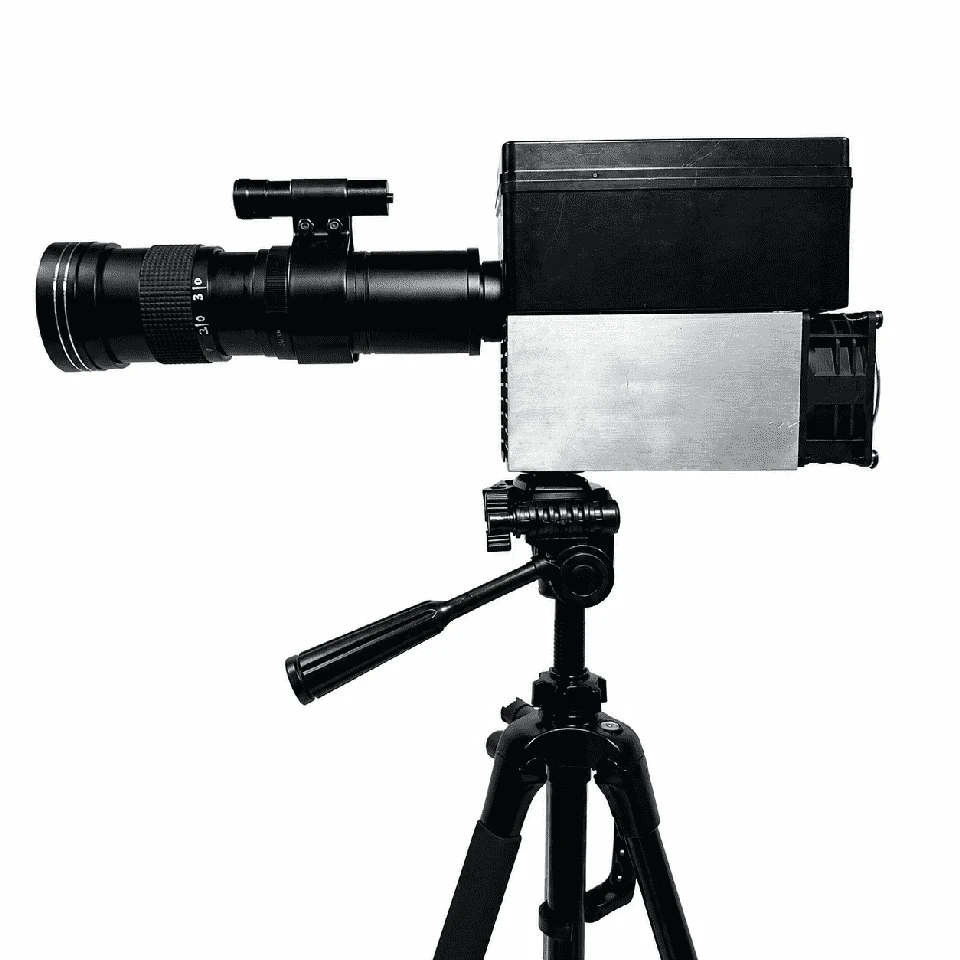

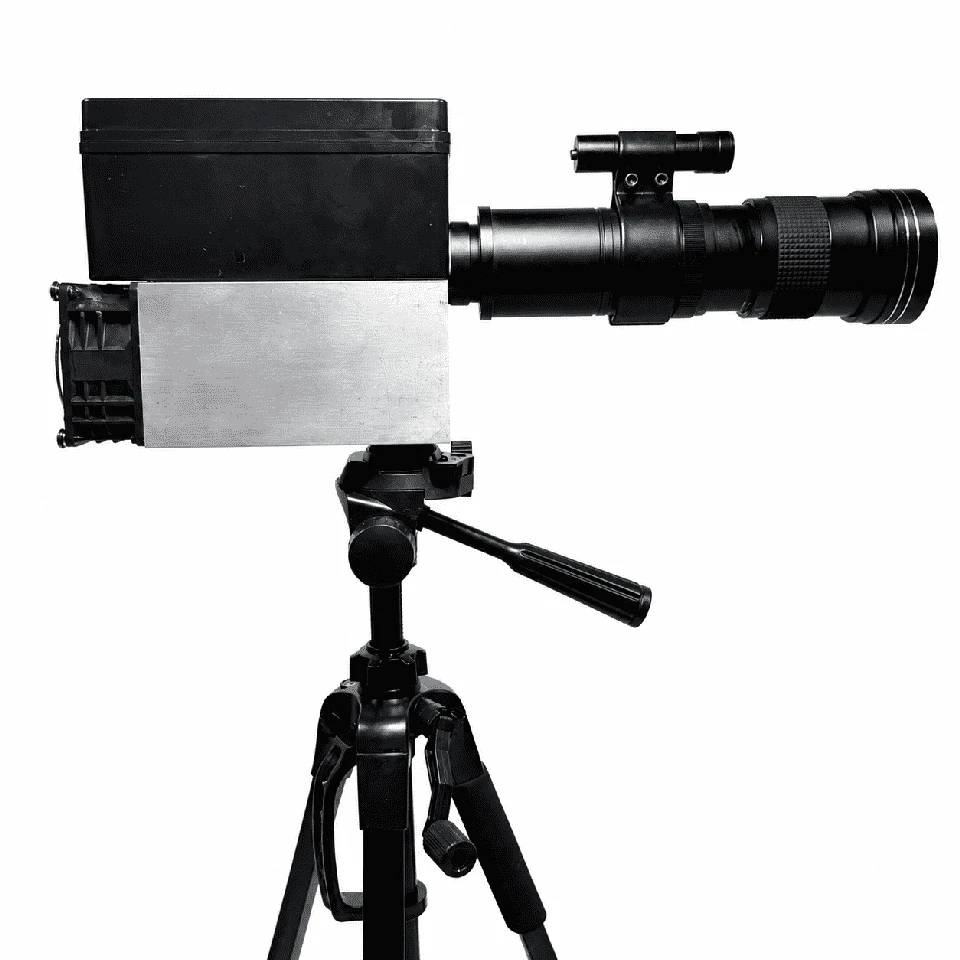

- Install the device on a stable tripod before operation.
- Keep flammable materials away from the optical path.
- Use a secure, non-reflective beam stop.
- Keep the device away from children and unauthorized users.
- Confirm local import, ownership, transport, and operating regulations before purchase.
The buyer and operator are responsible for legal compliance and safe use.
