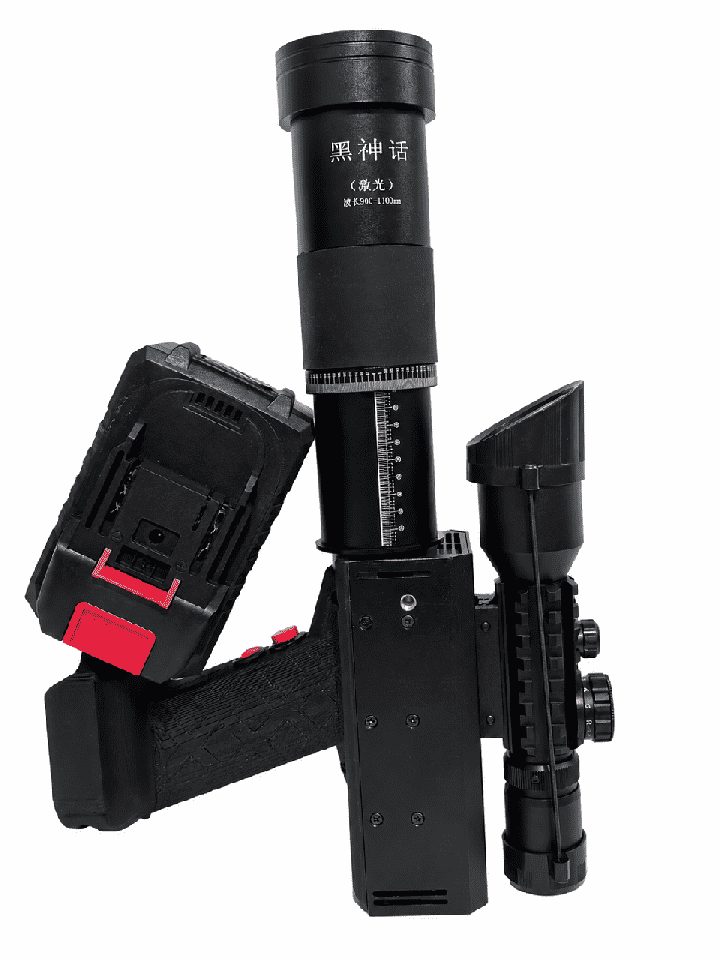

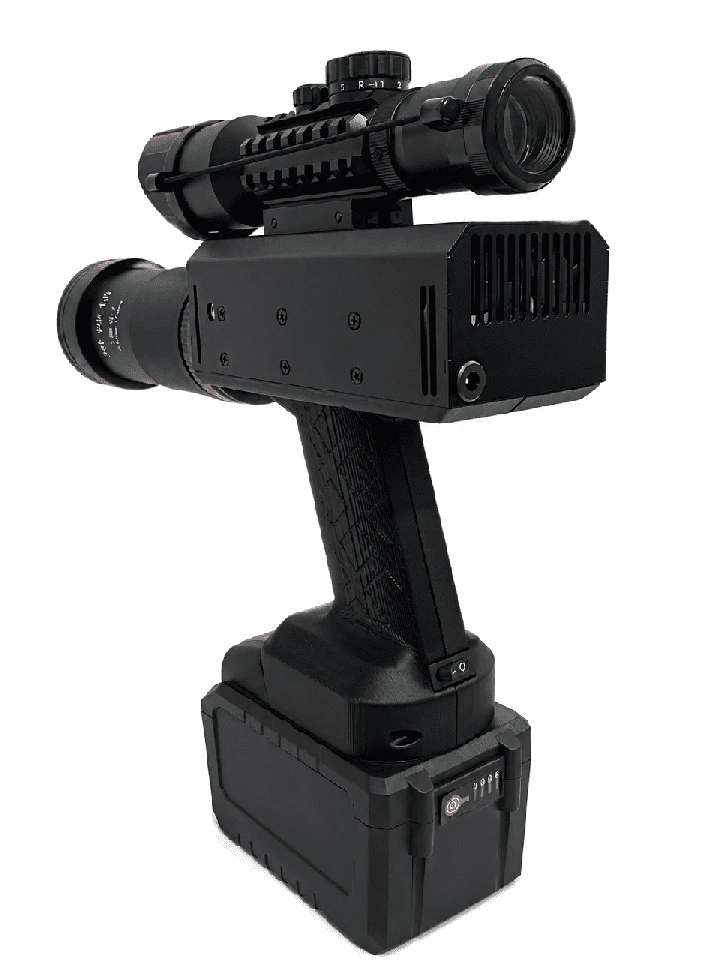

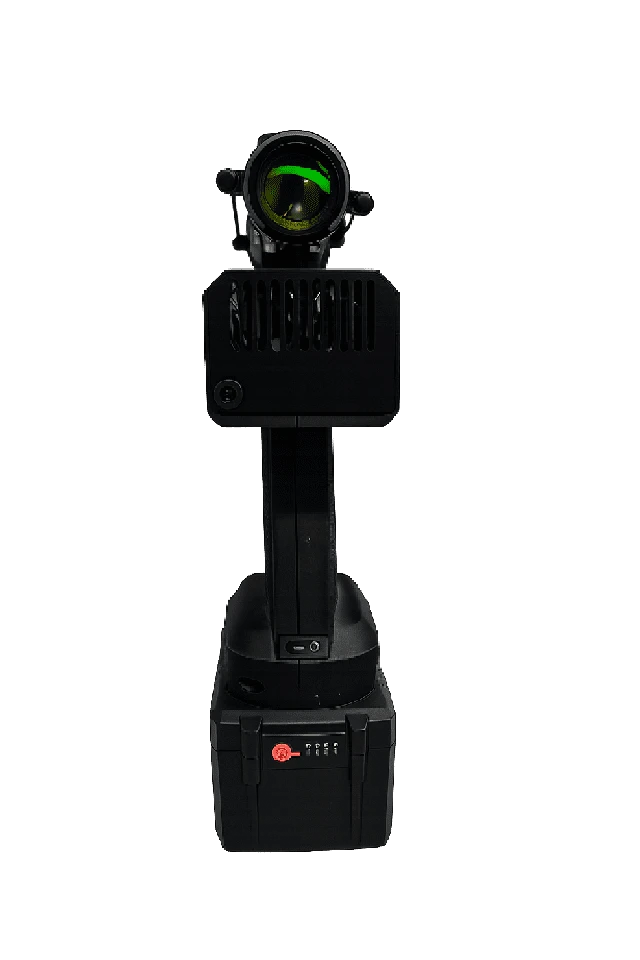

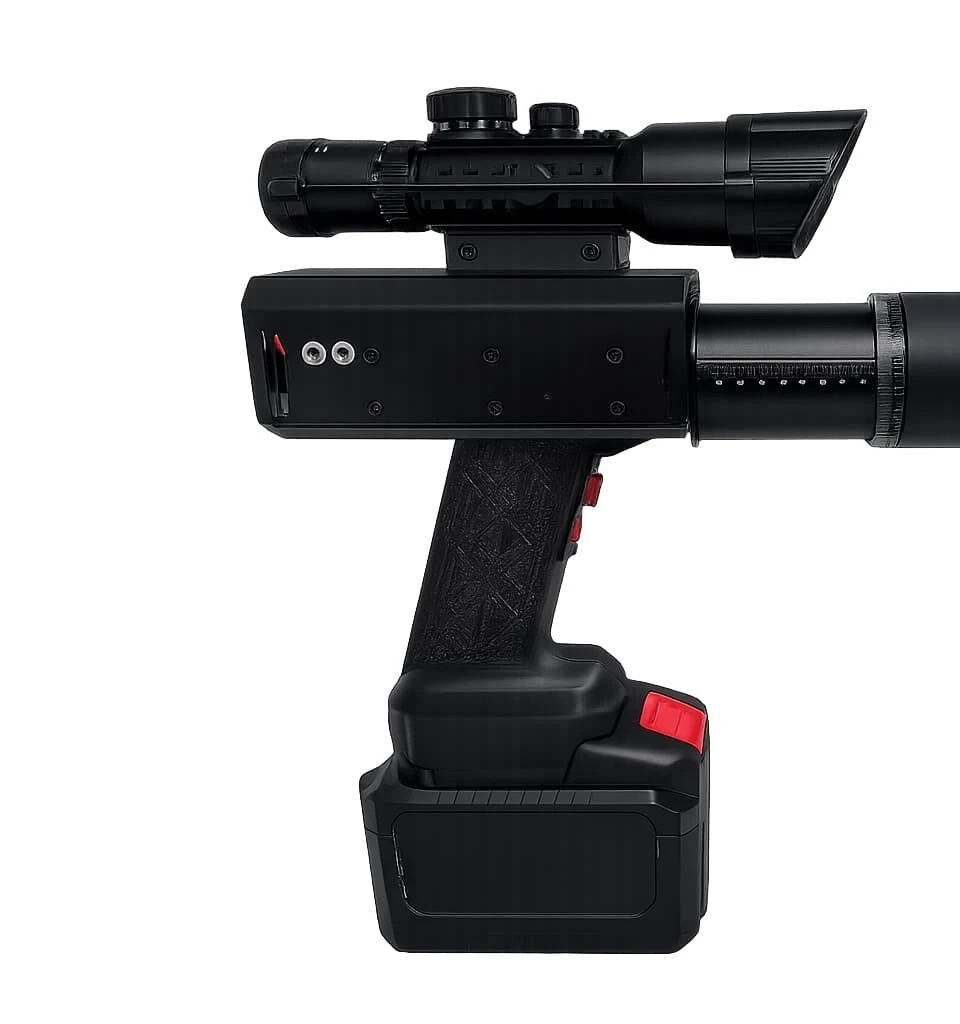

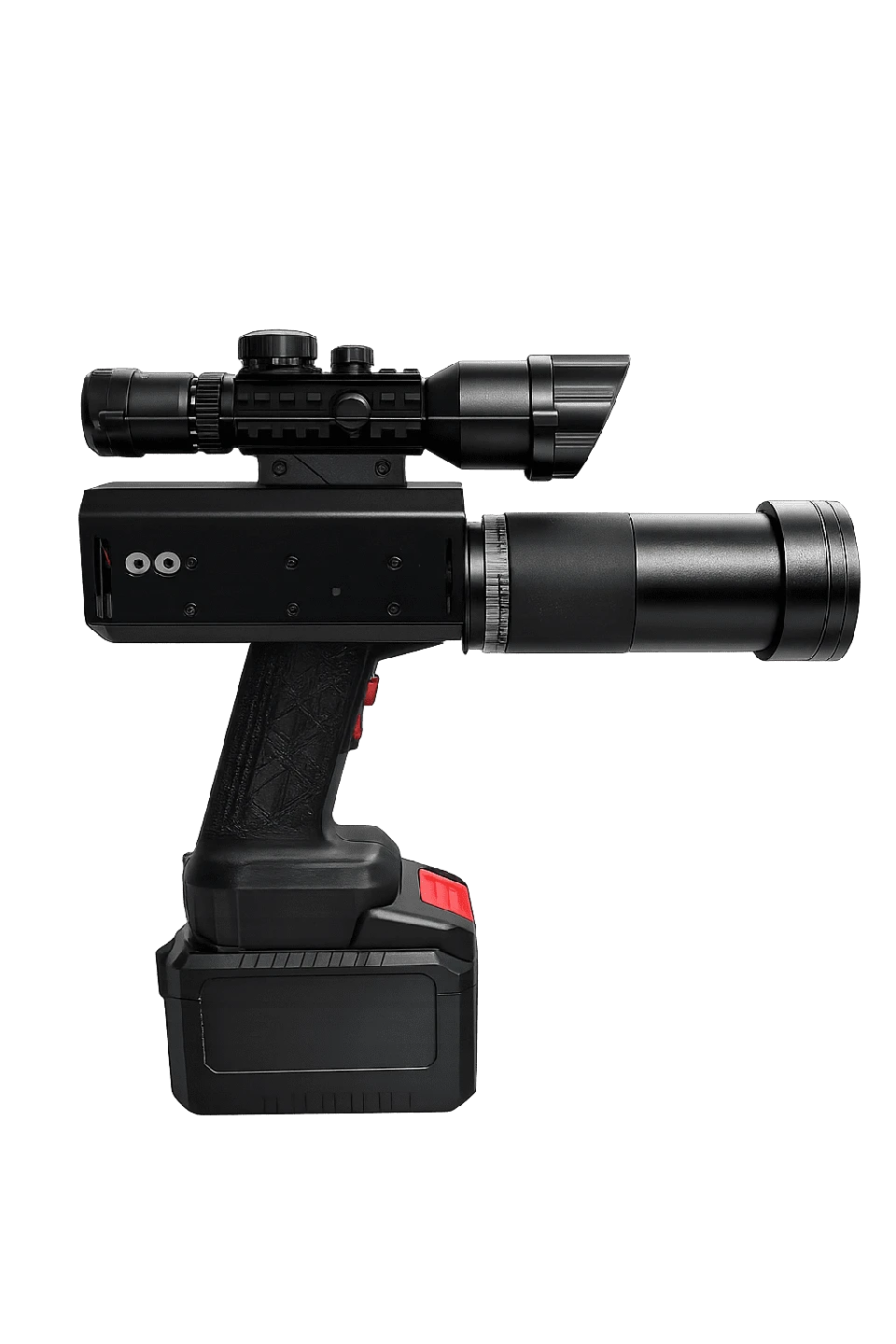

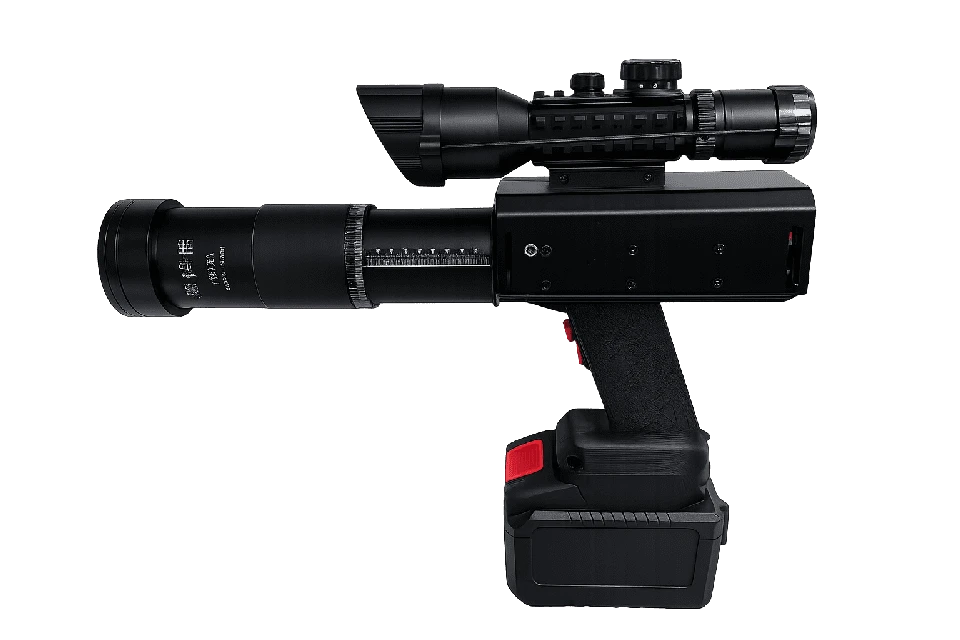

260W High-Power Integrated Laser Emitter With Removable Battery And Coaxial Red Aiming Light

The 260W High-Power Integrated Laser Emitter combines a compact all-in-one structure, removable battery system, direct-beam optical output, and optional external water cooling.

It is powered by a MAX Photonics laser source, featuring Chinese-developed laser technology for stable optical performance. The detachable battery design makes charging, replacement, packaging, and maintenance more convenient, while the permanently mounted handle switch helps prevent accidental loss during transportation or operation.

Designed for controlled optical testing, laboratory demonstrations, equipment evaluation, and authorized industrial applications, this system includes a coaxial red aiming light for alignment reference and an internal temperature-protection system for safer operation.

• 260W High Optical Output

The system delivers up to 260W optical output power with approximately 500W electrical power consumption, providing concentrated direct-beam output for professional optical testing and controlled material-response demonstrations.

• MAX Photonics Laser Source

The device uses a MAX Photonics laser source, offering integrated Chinese laser-core technology and stable output performance.

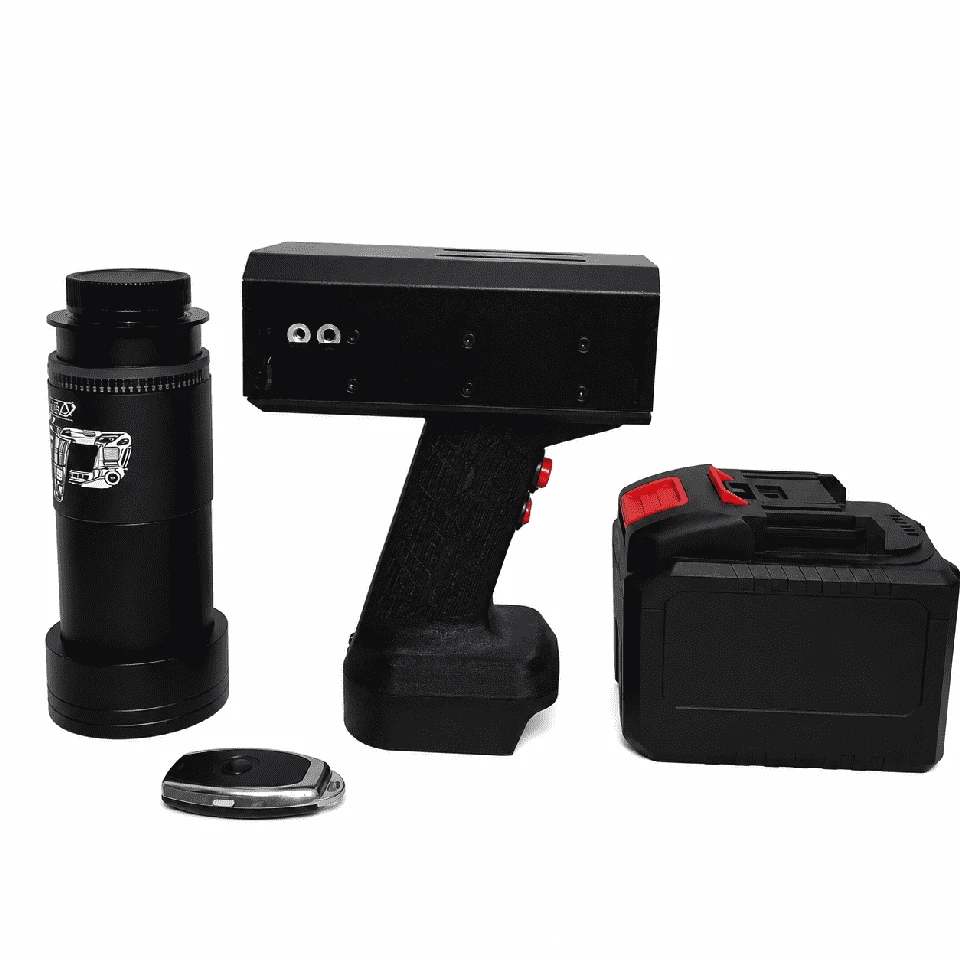

• Detachable Battery Design

The rechargeable battery module can be removed from the main body for:

Easier charging and replacement

More convenient packaging and transportation

Simplified maintenance

Flexible preparation of spare battery packs

The battery uses 8 × 21700 lithium-ion cells.

• Integrated Handle Switch

The activation switch is permanently installed in the handle and cannot be detached. This design helps prevent the switch from being misplaced while keeping the original operating method and package configuration unchanged.

• Direct-Beam Laser Output

The laser uses a direct-output optical structure, producing a concentrated straight beam without an additional fiber delivery cable.

• Coaxial Red Aiming Light

A visible red aiming light is aligned coaxially with the main optical output, helping the operator perform preliminary positioning and alignment.

The aiming light does not have an independent switch and operates together with the main system.

• Optional Water-Cooling System

The optional water-cooling package supports longer operating periods by circulating cooling water through the device.

When the cooling system is operating correctly and the circulating water remains below the thermal-protection threshold, the device can maintain extended output without immediately triggering high-temperature protection.

During controlled testing under specific conditions, the laser demonstrated a strong concentrated energy effect on selected test materials.

Test observations included:

• Visible thermal effects on thin metal test samples at approximately 25–35 meters
• Ignition effects on dry corrugated cardboard at approximately 80–90 meters

These results are provided only as controlled test references. Actual performance varies significantly according to focusing accuracy, material type, surface color, thickness, environmental conditions, atmospheric visibility, mounting stability, and operating distance.

These tests must never be reproduced in public areas or near people, animals, vehicles, buildings, vegetation, aircraft, reflective surfaces, or flammable surroundings.

1. Connect the inlet and outlet water hoses securely.
2. Place the water pump inside a sufficiently large water container.
3. Fill the system with clean cooling water.
4. Start the water pump before activating the laser.
5. Confirm that water is circulating continuously.
6. Monitor the water temperature during operation.
7. Replace or cool the water if its temperature rises significantly.
8. Stop operation immediately if circulation becomes interrupted.
9. Allow the equipment to cool after thermal protection is triggered.

Never operate the water-cooled configuration without active water circulation.

This is a high-power laser product intended only for trained adults, professional users, controlled laboratories, authorized testing facilities, and other legally permitted environments.

• Never aim the device at people or animals.
• Never aim it at aircraft, vehicles, roads, windows, mirrors, water, metal panels, or reflective objects.
• Never use it for hunting, self-defense, intimidation, or property damage.
• Never operate it in public spaces or uncontrolled outdoor areas.
• Wear certified laser-protective eyewear suitable for the actual laser wavelength and optical density.
• Protective eyewear does not make direct-beam viewing safe.
• Always install the device on a stable support before operation.
• Keep flammable materials away from the beam path.
• Maintain a controlled and enclosed beam termination area.
• Use an emergency power-disconnection method.
• Keep the product away from children and unauthorized users.
• Confirm applicable import, possession, and operating regulations before ordering.

The purchaser is responsible for ensuring compliance with all local laws and laser-safety requirements.

This product contains a rechargeable lithium-ion battery. International transportation of battery-powered products is subject to carrier, airline, customs, and destination-country restrictions.

For overseas orders, sea freight or approved battery-cargo transportation is recommended.

Standard air delivery may be unavailable because lithium battery products may not be accepted on passenger aircraft or ordinary air-cargo channels. Selecting an unsuitable shipping method may result in:

• Shipment rejection
• Customs delays
• Return to sender
• Additional handling fees
• Failure of final delivery

Please confirm the available shipping method and destination-country import requirements before placing an order.
