Products overview

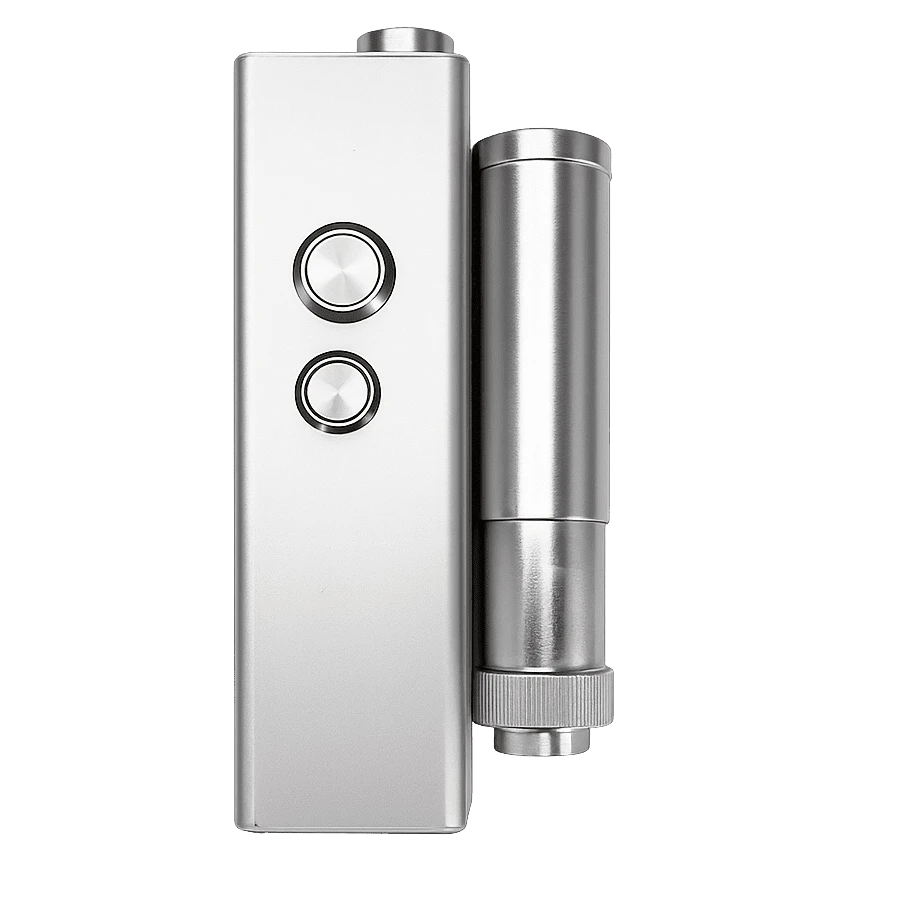

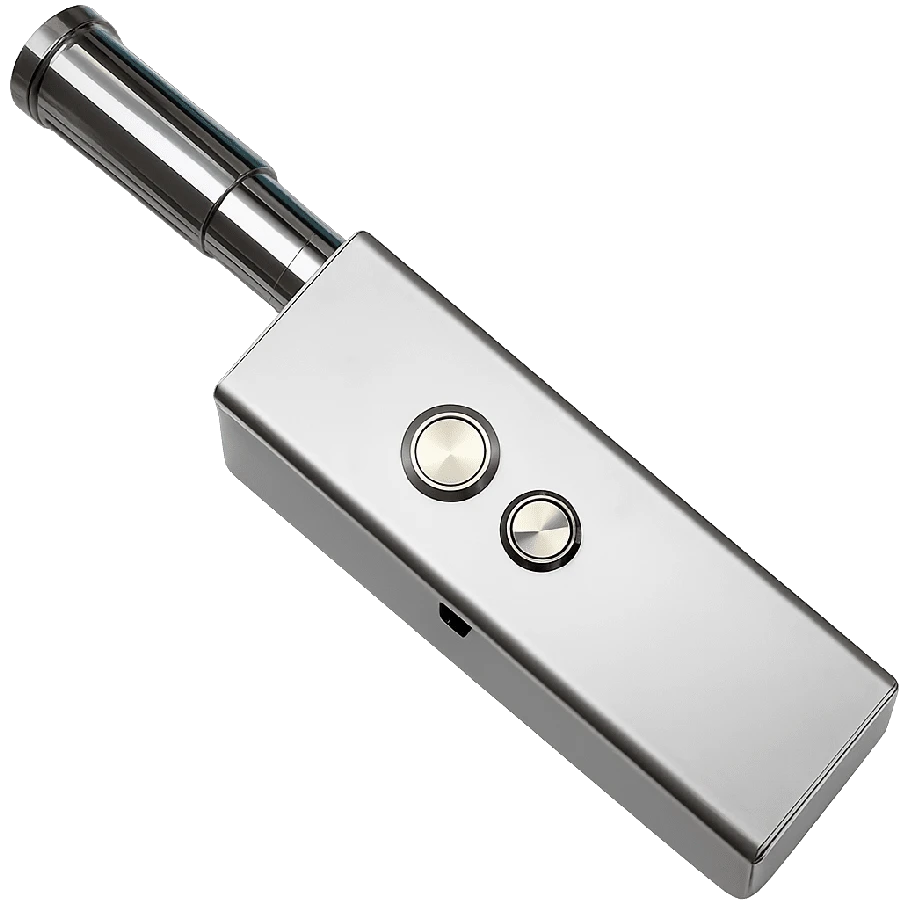

The 120W Portable Laser System is a lightweight, all-in-one optical device developed for laboratory research, engineering development, optical evaluation, educational demonstrations, and DIY technical projects.
Featuring a durable aluminum alloy housing, integrated rechargeable battery, intelligent cooling system, constant-current drive, and coaxial red aiming laser, the unit combines portability with dependable optical performance.
Designed for users who require a compact yet capable platform, the system supports manual focus adjustment and interchangeable lens configurations for different working distances.
Product Highlights
Stable 120W Direct Output
The unit is rated for up to 120W of optical power and uses a direct-output design for controlled testing, optical evaluation, technical demonstrations, and research-oriented applications.
Aluminum Alloy Body
The main housing is made from aluminum alloy, giving the device a solid structure while also helping transfer heat away from the internal components. The result is a compact body that is durable, relatively lightweight, and easier to handle.
Built-In Samsung Battery Pack
Power is supplied by four Samsung 50E 21700 lithium-ion cells installed inside the unit. This self-contained design removes the need for a separate external battery pack and makes setup, transport, and storage more convenient.
Regulated Power Delivery
A constant-current control circuit manages the electrical output during operation. This helps keep power delivery more consistent as the battery level changes and reduces unnecessary stress on the laser source.

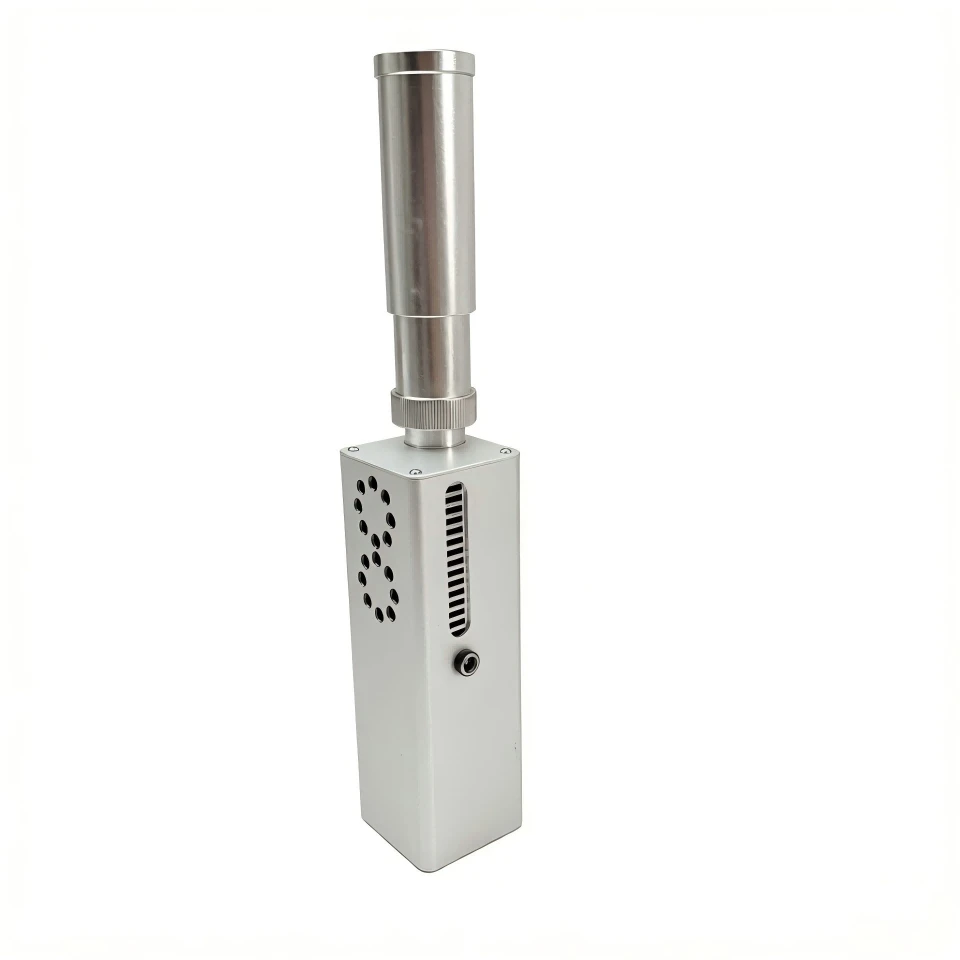

Dual-Fan Cooling
Two internal fans work together with the aluminum housing to move heat away from the laser module. The fans start when the unit is powered on, supporting airflow throughout the operating cycle.
45°C Overheat Cutoff
The internal temperature is monitored continuously. In testing at an ambient temperature of about 19°C, a fully cooled unit typically operated for approximately 45–60 seconds before thermal protection activated.
Once the device reaches around 45°C, output is automatically interrupted. Operation can continue after the unit has cooled to a safe temperature.
Coaxial Red Alignment Beam
The main 915nm output is invisible to the naked eye, so the device includes a visible red reference beam positioned close to the same optical axis. This makes preliminary alignment and focus adjustment easier before operation.

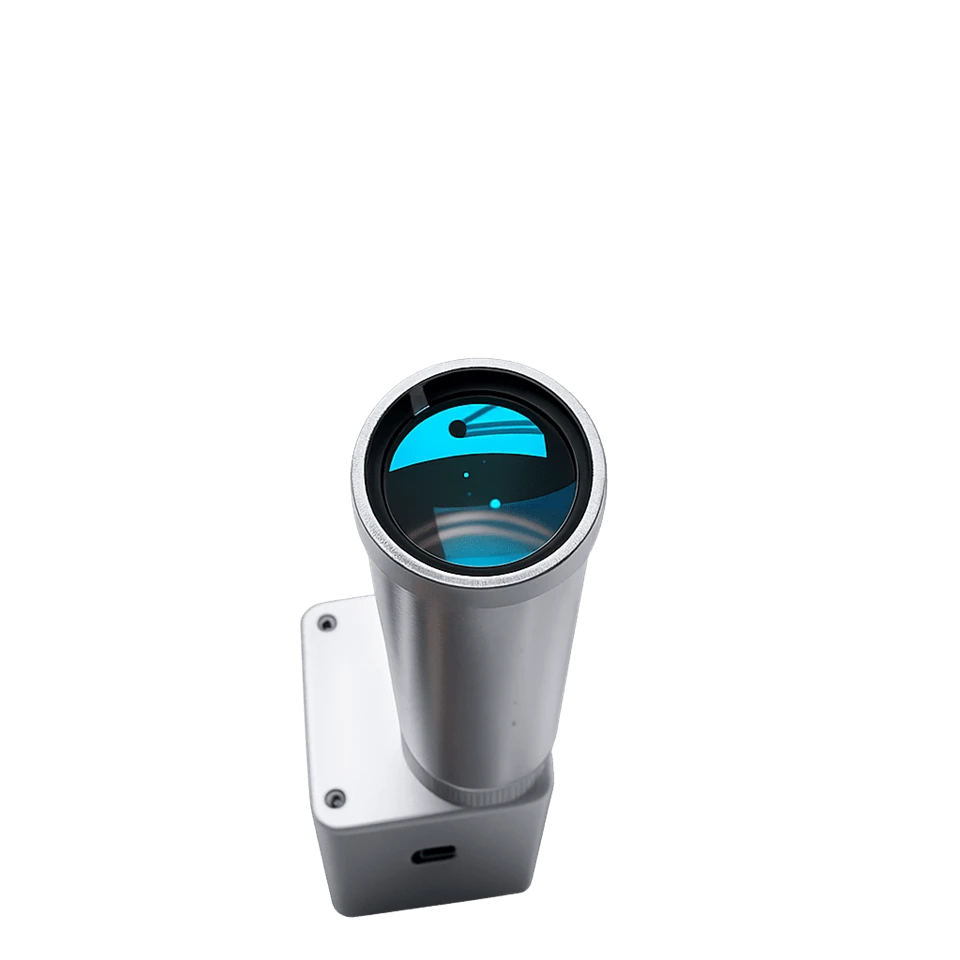

Adjustable 1–15m Focus Range
The focusing lens can be rotated or extended to adapt to different working distances. With correct adjustment, the recommended range is approximately 1–15 meters.
For operation beyond about 5 meters, a tripod, gimbal, or other fixed support is recommended to reduce movement and improve alignment stability.
Simple Battery-Level Display
A rear indicator light shows the approximate charge status:
- Green: High battery level
- Yellow: Medium battery level
- Red: Charging recommended
DC Rechargeable Design
The internal battery is recharged through a standard DC charging port using the supplied charger, allowing the complete unit to be charged without removing the battery cells.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Portable Integrated Laser System |
| Optical Output Power | 120W |
| Wavelength | 915nm |
| Housing Material | Aluminum Alloy |
| Battery | 4 × Samsung 50E 21700 Lithium Cells |
| Driver | Constant Current |
| Cooling System | Dual Cooling Fans |
| Thermal Protection | Automatic at approximately 45°C |
| Charging Port | DC |
| Auxiliary Aiming | Coaxial Red Laser |
| Recommended Working Distance | 1–15 m |

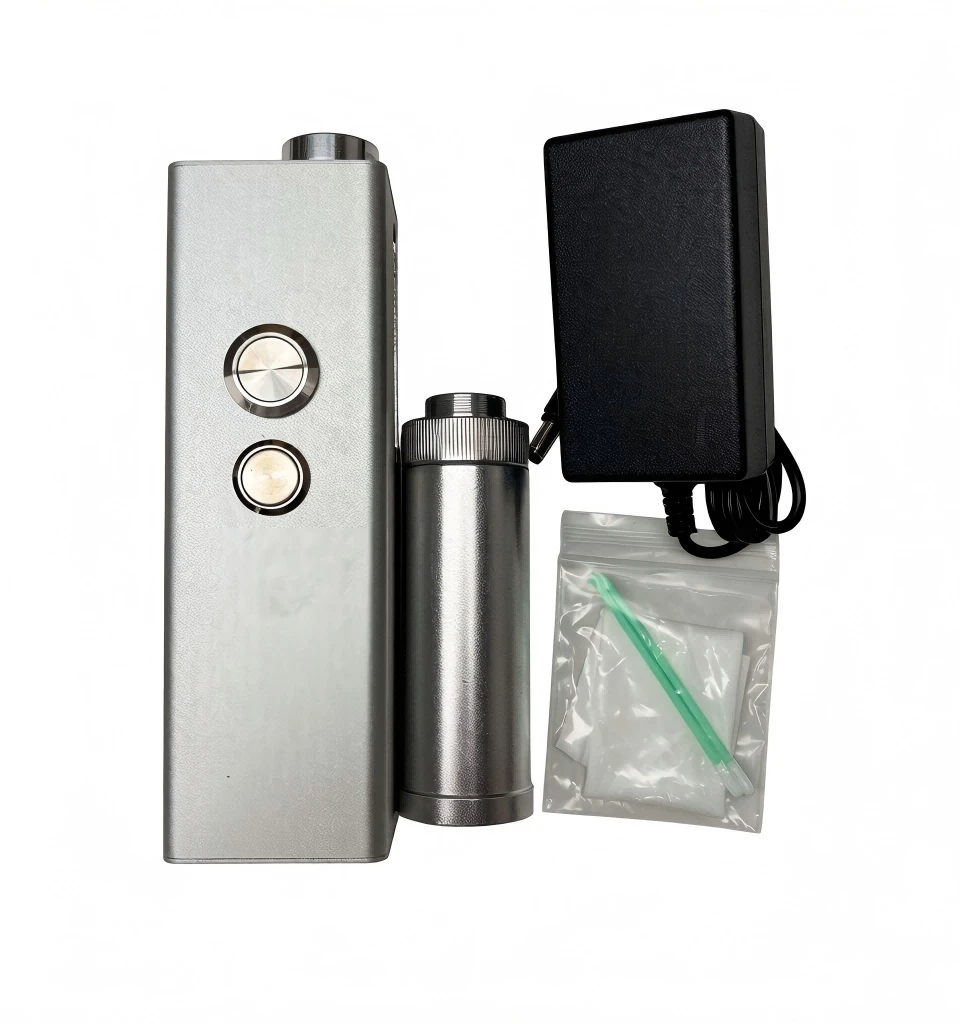

Package Includes
- 1 × 120W Laser Main Unit
- 1 × Focusing Lens (depending on selected configuration)
- 1 × DC Battery Charger
The battery is integrated inside the device.
Operating Recommendations
- Keep the output window and lens clean before each use.
- Maintain a minimum working distance of approximately 10 cm to avoid heat damage from reflected energy.
- Without a focusing lens, the recommended operating distance is 1–2 meters.
- For distances greater than 1 meter, a focusing lens is recommended.
- The focus should be adjusted manually whenever the working distance changes.
- For improved stability at distances beyond 5 meters, use a tripod or other fixed mounting solution.
Safety and Responsible Use
This product is intended exclusively for trained adult users operating in controlled environments.
Never expose eyes or skin to the direct or reflected beam.
Do not aim the laser at people, animals, vehicles, aircraft, buildings, or public spaces.
Avoid highly reflective materials such as mirrors, polished metals, and glass.
Wear certified laser protective eyewear appropriate for the operating wavelength.
Operate only in accordance with applicable local laws and regulations.
Store the device securely to prevent access by children or unauthorized users.
Warranty
A 45-day limited warranty is provided for manufacturing defects under normal use.
Damage resulting from misuse, modification, improper operation, or accidental damage is not covered.
Return shipping costs are the responsibility of the customer.
Important Notice
This product is manufactured to order.
Because of its customized nature, orders are generally not eligible for return or exchange once production has begun.
Please confirm your application requirements before placing an order.
