Products overview

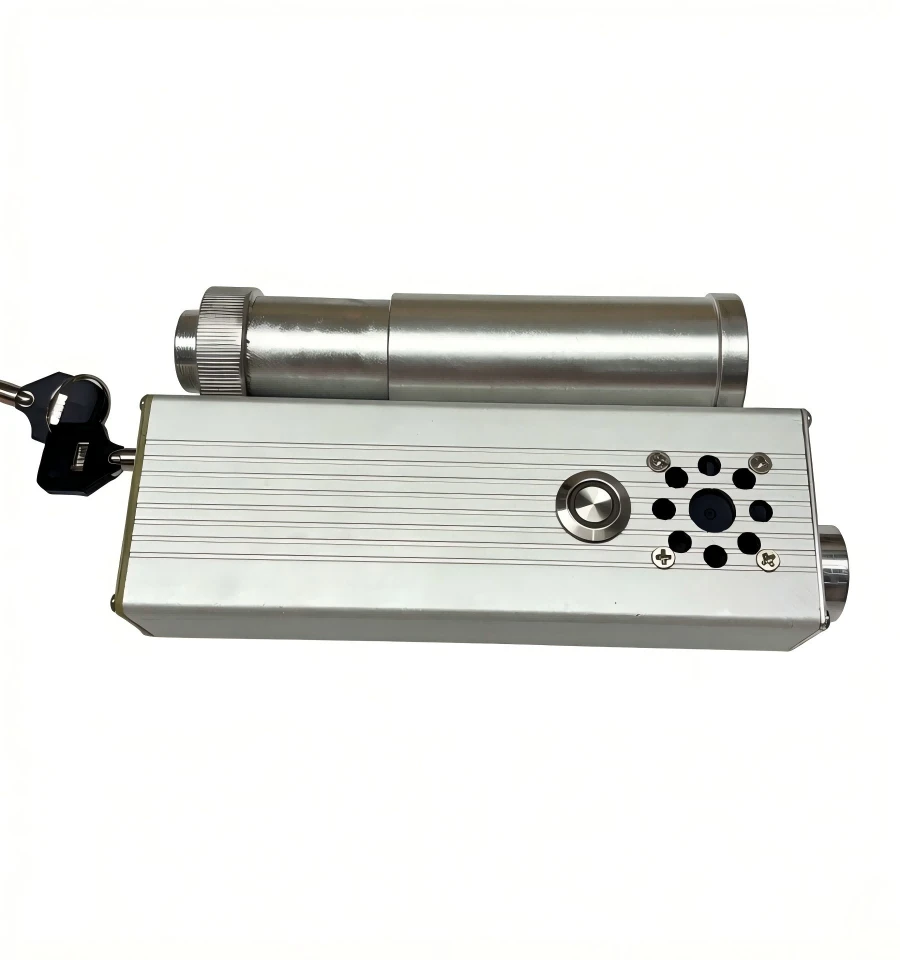

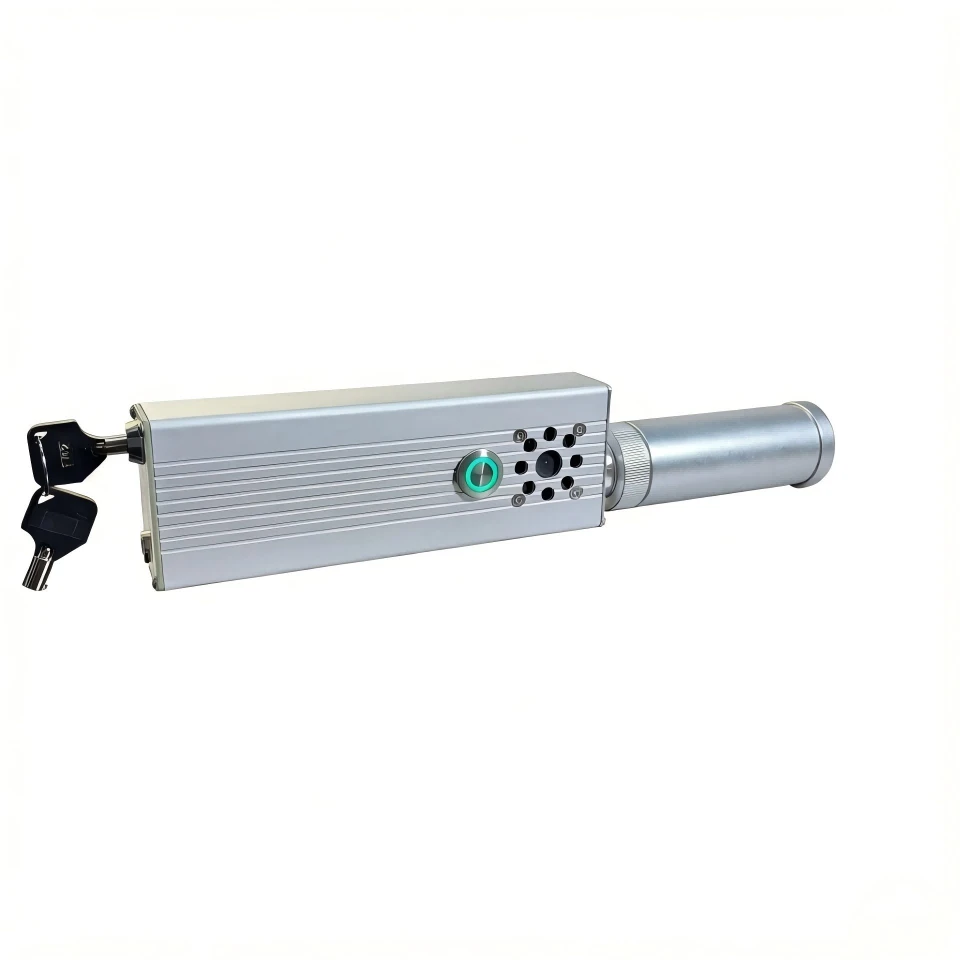

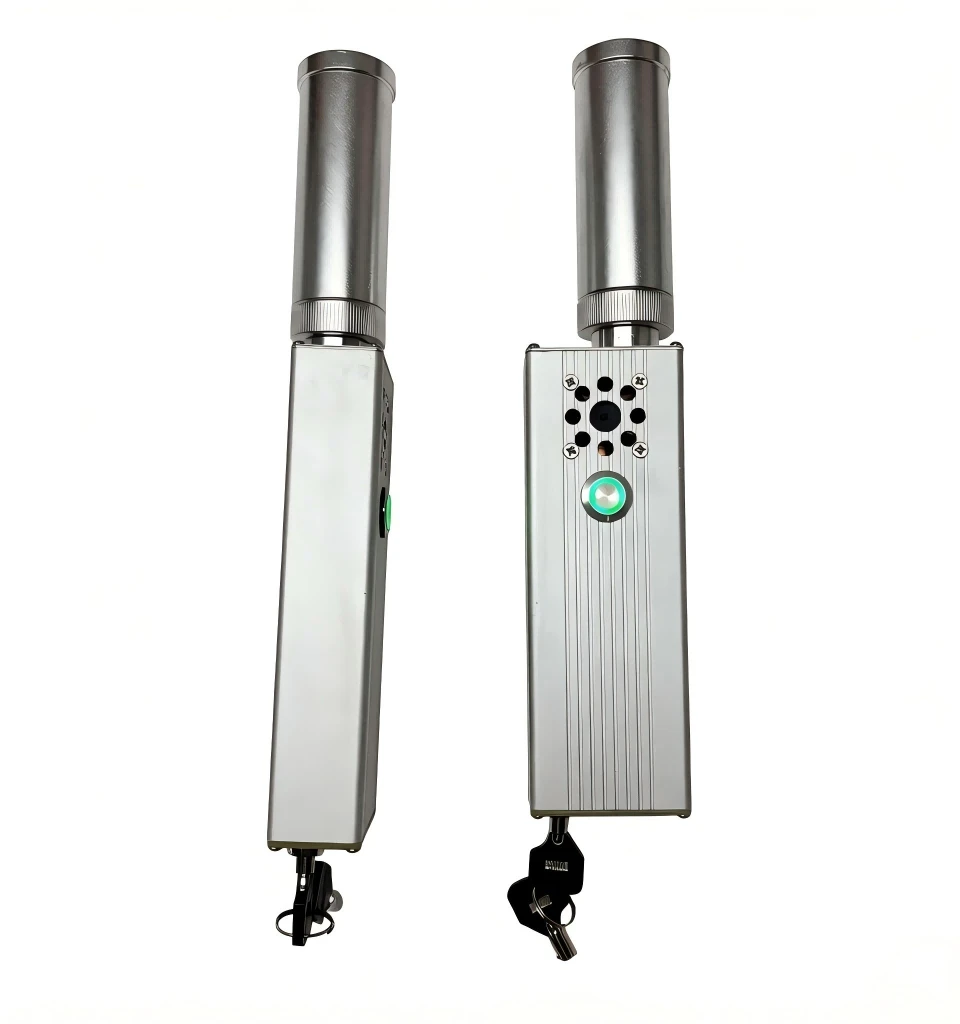

The 120W Mini Portable Laser System combines high optical performance with a compact, travel-friendly design for controlled research, technical evaluation, educational demonstrations, and engineering projects.

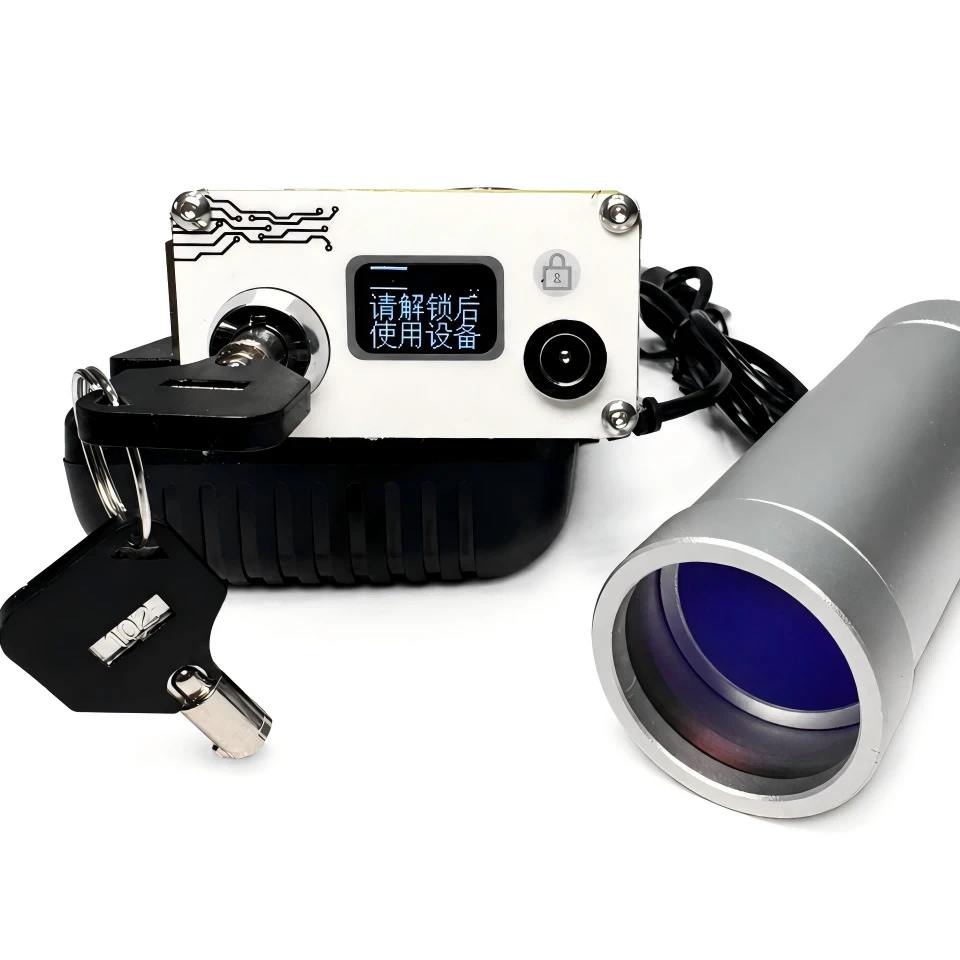

Built around a Raycus 915nm laser source, the unit brings the battery, OLED status screen, cooling control, and safety functions together in one aluminum-alloy body. Its lightweight construction allows easier handling, storage, and transport between workspaces.

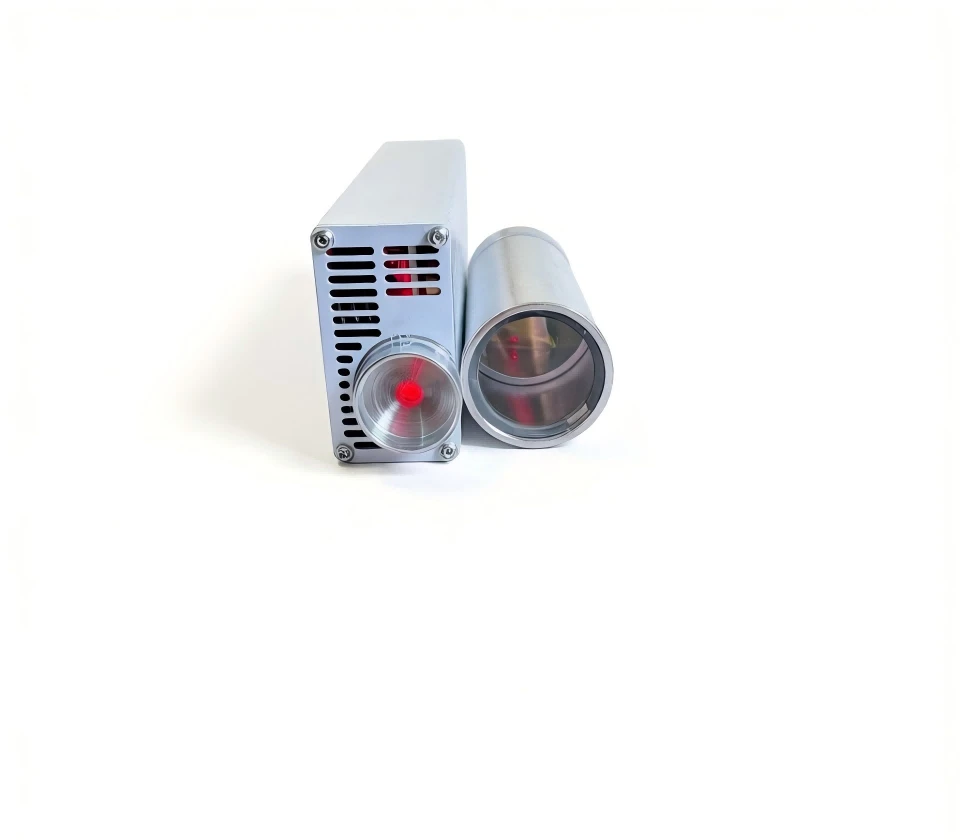

A manually adjustable 10× focusing lens is included for different working distances, while the coaxial red reference beam helps the operator locate and align the otherwise invisible infrared output.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Mini Portable Laser System |
| Laser Source | Raycus |
| Optical Output Power | 120W |
| Wavelength | 915nm |
| Laser Class | Class 4 |
| Housing Material | Aluminum Alloy |
| Auxiliary Aiming | Coaxial Red Laser |
| Focus Method | Manual |
| Lens | 10× Telescopic Lens |
| Recommended Working Distance | Approximately 10 m |
| Battery | 6 High-Discharge Lithium Cells |
| Charging Input | 110–220V AC |
| Thermal Protection | Automatic shutdown above approximately 58°C |
| Cooling Fan Start | Approximately 35°C |
| Cooling Fan Stop | Approximately 25°C |
| Continuous Runtime | Approximately 30 seconds from a cold start |
| Main Unit Size | 160 × 55 × 30 mm (excluding lens) |
| Net Weight | Approximately 515 g (excluding lens) |
Operating Instructions
Insert and turn the safety key to power on the device.
Wait for the startup sequence to complete.
Double-click the activation button to unlock the output system.
Use the red aiming laser to align the target.
Adjust the focusing lens as required.
Operate in short activation intervals and monitor the OLED display.
Allow the system to cool if thermal protection is activated.

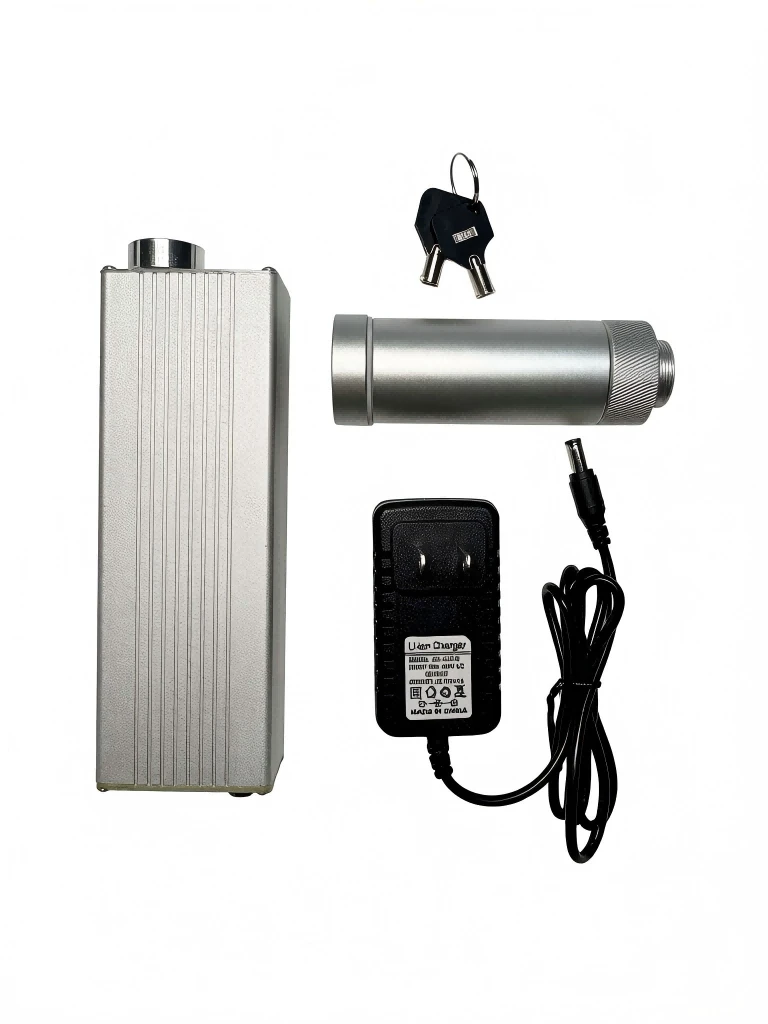

Package Includes
1 × 120W Mini Laser System
1 × 10× Focusing Lens (or lens-free version depending on configuration)
1 × Battery Charger
2 × Safety Keys
Package contents may vary depending on the selected product version.
Safety and Responsible Operation
This Class 4 laser system must be handled only by qualified adults who understand high-power laser hazards. Use it in a secured, controlled area with a properly contained beam path.
- Inspect the device, lens, battery, and safety key before each use.
- Keep the output aperture pointed in a safe direction whenever the system is powered.
- Do not expose eyes or skin to the direct beam or reflected energy.
- Keep the beam away from people, animals, roads, vehicles, aircraft, windows, mirrors, and other reflective surfaces.
- Use wavelength-appropriate certified laser eyewear and suitable protective barriers.
- Remove the safety key after operation and store the unit where children or unauthorized users cannot access it.
- Stop immediately if the device overheats, behaves abnormally, or the beam path becomes uncontrolled.
- The owner and operator are responsible for complying with all local laws, transport rules, and laser-safety requirements.
Recommended Applications
- Optical research
- Laboratory demonstrations
- Engineering development
- Educational training
- Beam alignment
- Material-response testing
- DIY technical projects
- Optical equipment evaluation
