120W Portable 915nm Laser System, Equipped With A Laser Source And A 50x Focusing Lens, With An Operating Range Of 1–20 Meters

The 120W Portable 915nm Laser System is a compact, battery-powered optical device designed for controlled research, technical evaluation, authorized utility maintenance support, and specialized agricultural applications.

Built around a Raycus laser source, the system combines a 120W optical output, coaxial red alignment beam, 50× adjustable focusing lens, rechargeable 21700 battery pack, and automatic thermal protection in a portable cylindrical housing.

This model is intended as auxiliary equipment and should not be compared with large industrial obstacle-removal systems. Performance depends heavily on focus adjustment, mounting stability, atmospheric visibility, battery condition, and operator experience.

Raycus Laser Source

The internal pump module is supplied by Raycus, providing a rated pump power of approximately 125W and an optical output of approximately 120W.

Adjustable 1–20m Working Range

The supplied 50× focusing lens can be adjusted by rotating the threaded focusing mechanism.

• Without the focusing lens, the effective distance is approximately 1 meter.
• With correct focusing, the recommended working range is approximately 1–20 meters.
• Maximum-distance performance requires clear visibility without fog, haze, or heavy airborne moisture.

For distances beyond approximately 8–10 meters, the device should be mounted on a tripod, gimbal, or other stable support. Handheld movement may prevent accurate alignment and focusing.

Coaxial Red Alignment Beam

Because the primary 915nm infrared output is invisible to the naked eye, the system includes a visible red alignment beam positioned along the optical axis.

The red beam is intended as a positioning reference only and does not provide distance measurement.

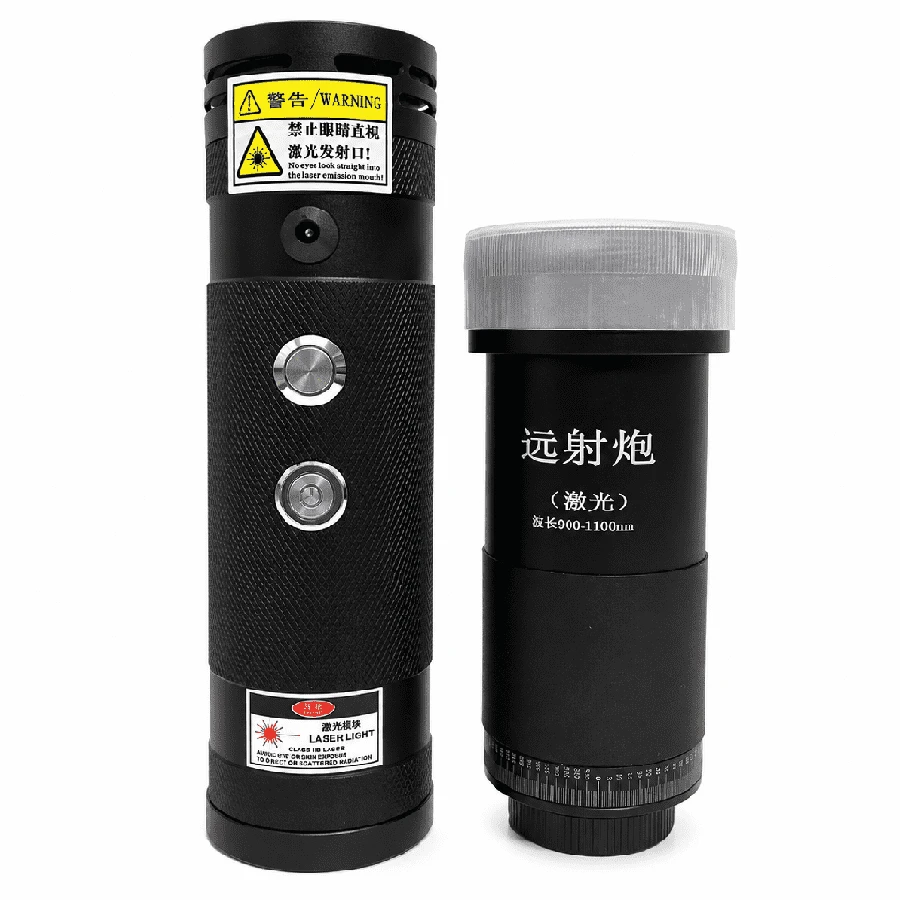

50× Manual Focusing Lens

The adjustable lens has an outer diameter of approximately 7cm and uses a threaded rotary mechanism for manual focus control.

The focus must be readjusted whenever the working distance changes.

Rechargeable 21700 Battery System

The device is powered by four protected 21700 lithium-ion cells.

• Battery capacity: 5000mAh
• Protection board: Included
• Fast charging: Up to 4A
• Charger: Included

Battery runtime varies according to output duration, temperature, charging condition, and thermal-protection cycles.

Automatic 45°C Thermal Protection

The integrated cooling and temperature-monitoring system helps protect the internal pump source.

When the internal operating temperature reaches approximately 45°C, the system automatically interrupts output. In testing at an ambient temperature of approximately 24°C, thermal protection typically activated after around 30–40 seconds of continuous use from a cold start.

The unit must be allowed to cool before output can resume. A custom water-cooled configuration may be available for applications requiring longer operating periods.

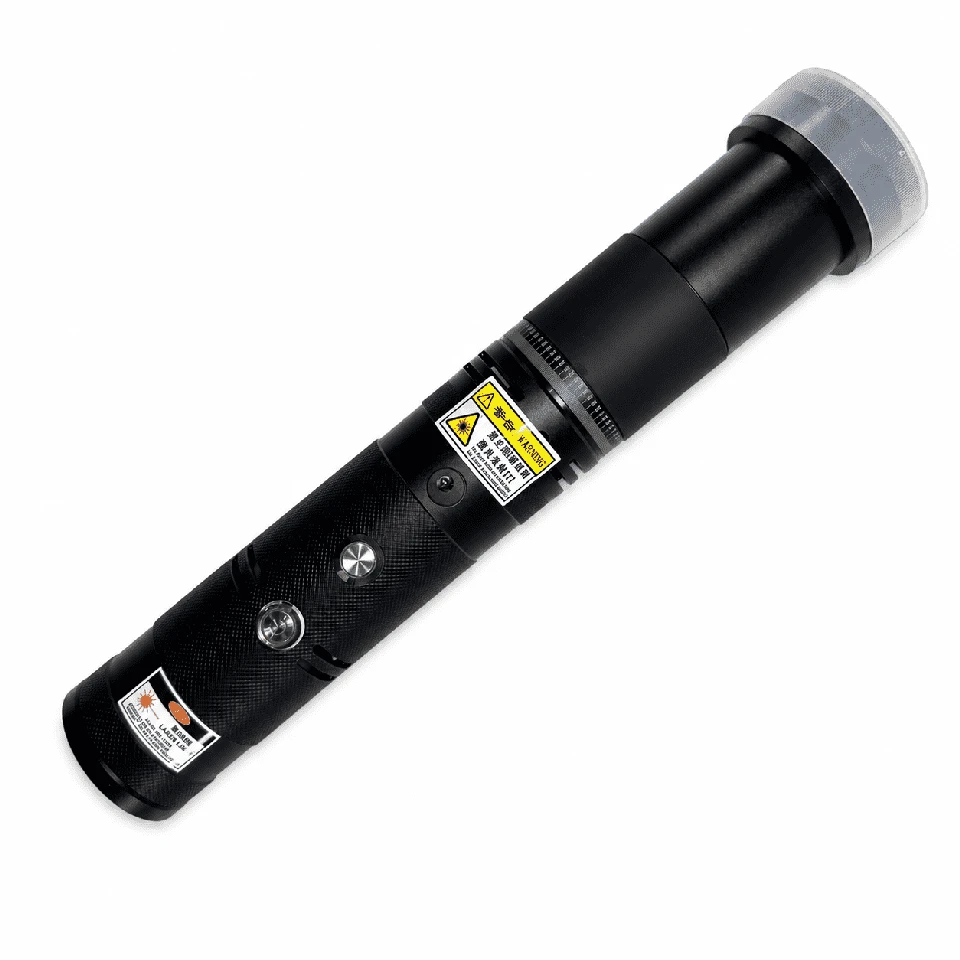

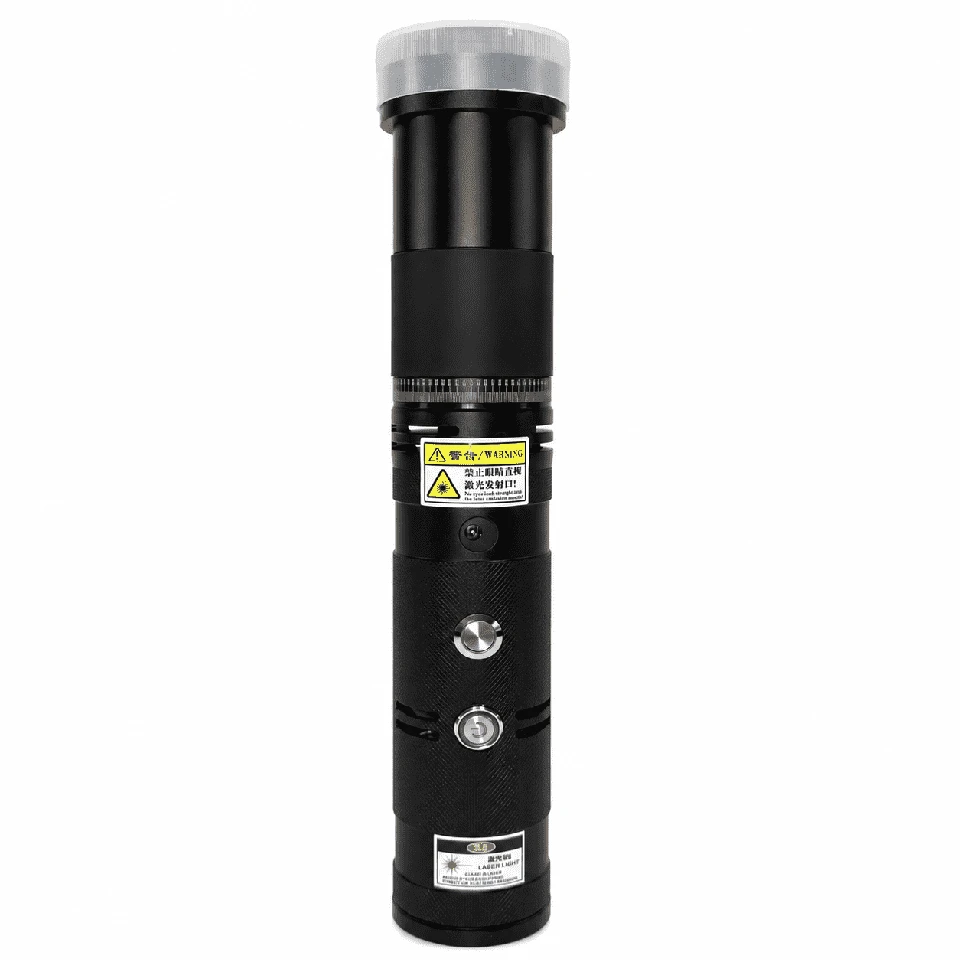

Portable Cylindrical Housing

The compact body is designed for easier transport and setup.

• Main unit length: Approximately 36cm
• Body diameter: Approximately 6cm
• Adjustable lens diameter: Approximately 7cm
• Gross shipping weight: Approximately 1.6kg
• Outer package size: 26 × 18 × 15cm

• Technical Specifications

  Specification	Details
  Product Type	Portable high-power auxiliary laser system
  Laser Source Brand	Raycus
  Pump Source Power	Approximately 125W
  Optical Output Power	Approximately 120W
  Electrical Power Consumption	Approximately 240W
  Wavelength	915nm invisible infrared
  Working Range	Approximately 1–20m
  Lens-Free Range	Approximately 1m
  Focusing Lens	50× manual adjustable lens
  Aiming System	Coaxial red reference beam
  Battery	4 × protected 21700 cells
  Battery Capacity	5000mAh
  Charging	Supports 4A fast charging
  Thermal Protection	Automatic output cutoff at approximately 45°C
  Typical Cold-Start Runtime	Approximately 30–40 seconds at 24°C
  Main Unit Length	Approximately 36cm
  Body Diameter	Approximately 6cm
  Lens Diameter	Approximately 7cm
  Gross Weight	Approximately 1.6kg
  Package Size	26 × 18 × 15cm

The appearance of the identification label on the main unit may vary between production batches. Some units may not include an external product label. Product images are provided for reference only and do not affect product specifications or performance.

The maximum working distance of 20 meters is achievable only under favorable environmental conditions with clear visibility and proper manual focusing.

For users requiring extended continuous operation, an optional custom water-cooling solution is available upon request.

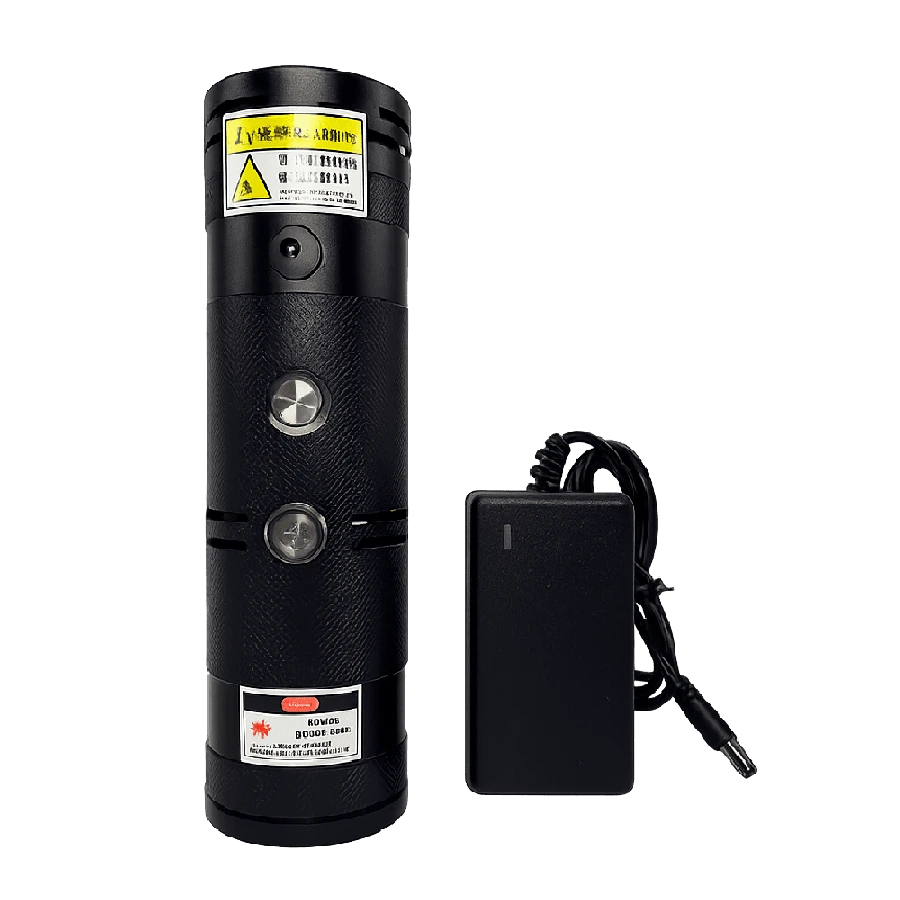

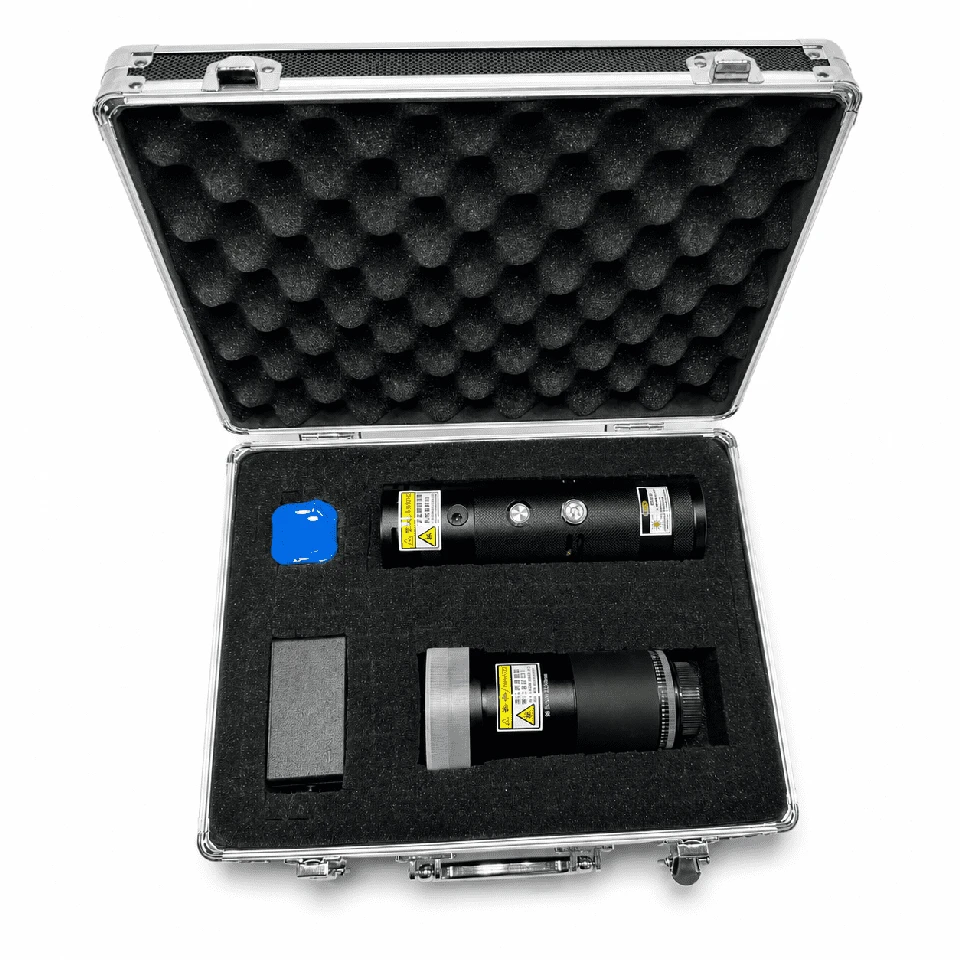

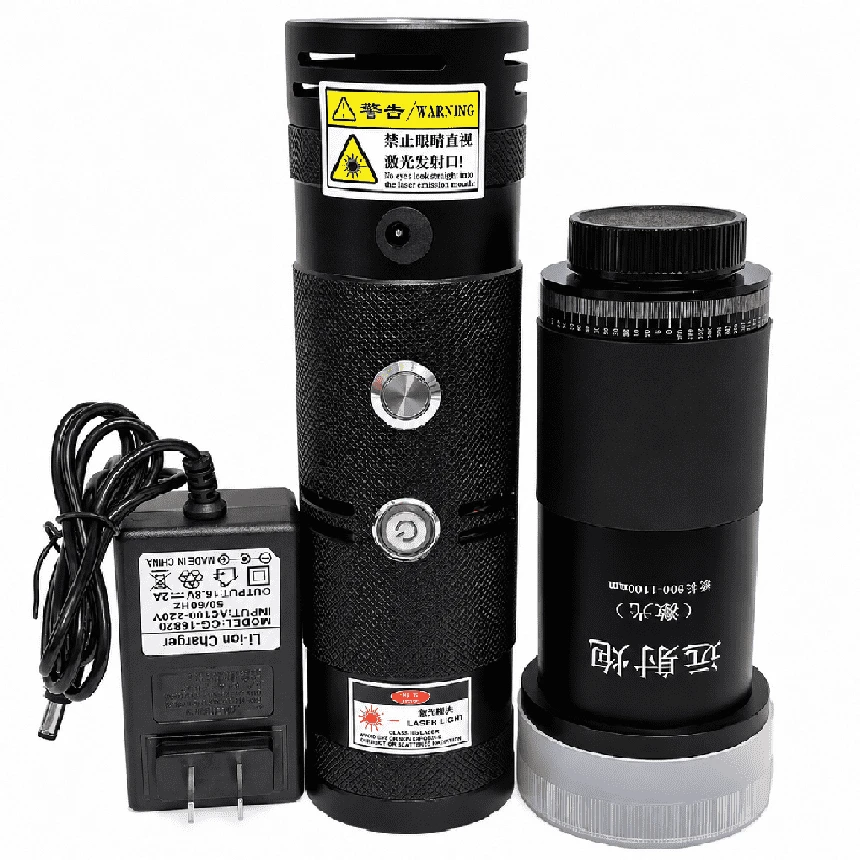

1 × 125W Portable Laser System

1 × 50× Adjustable Focusing Lens

1 × Fast Battery Charger

Each unit is function-tested before shipment, and a verification video can be provided upon request. Due to the customized nature of this product, returns and exchanges are generally not accepted after shipment. If damage occurs during transportation, a replacement of the same model will be arranged according to the shipping policy.

For stable performance:

Mount the device securely before long-distance operation.

Keep the lens and output window clean.

Adjust the focusing lens for the actual working distance.

Use shorter activation intervals rather than continuously operating until thermal shutdown.

Stop operation when thermal protection activates and allow the unit to cool completely.

Do not use in fog, haze, rain, or other conditions that reduce visibility.

This is a Class 4 high-power laser system intended only for trained adults aged 18 or older.

Never expose eyes or skin to the direct or reflected beam. Do not point the device toward people, animals, aircraft, vehicles, roads, buildings, windows, reflective surfaces, or public areas.

Operate only in a secured environment with appropriate beam containment, wavelength-rated protective eyewear, and suitable mounting equipment. The purchaser and operator are responsible for compliance with all applicable laws, import requirements, storage rules, and laser-safety regulations.

Each unit is tested before shipment, and a verification video can be provided upon request.

Because this is a specialized product, returns and exchanges are not supported after shipment unless otherwise agreed in writing. If the package is damaged during transportation, replacement of the same model may be arranged after the shipping damage has been verified.
