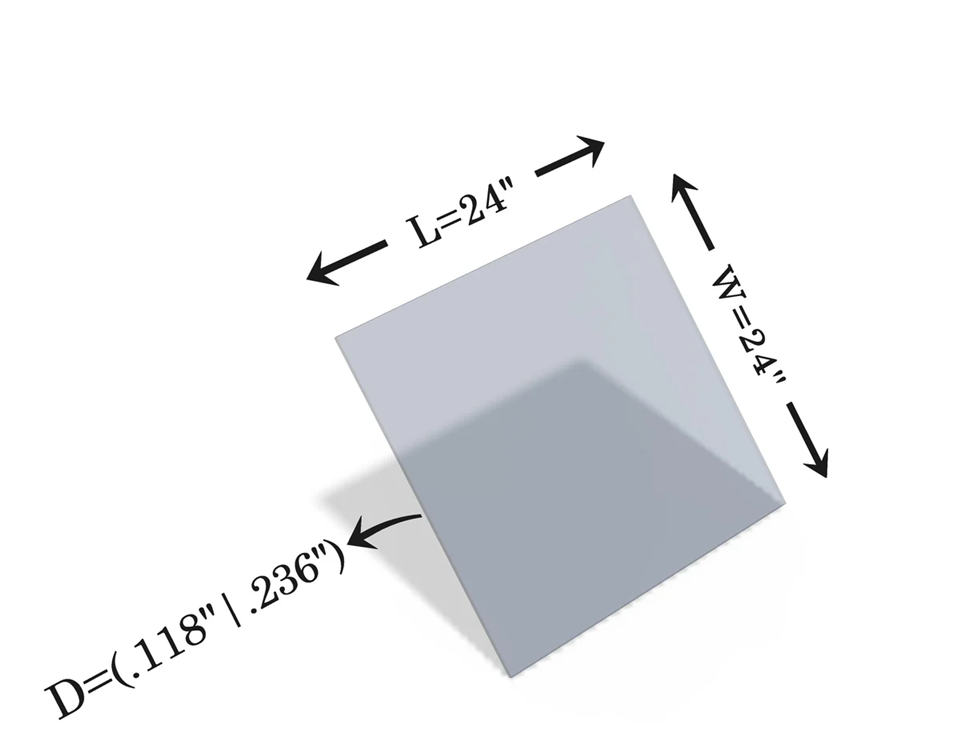

Laser Safety Window Acrylic Sheet Viewing 10600nm CO2 Laser Machine Customizable Size

The CO2 Laser Safety Window can effectively protect 10600nm specific wavelengths of laser light. Different types of lasers cause other damage to the human body. In laser processing, the hazard of a CO2 laser mainly burns the cornea of the eyes.

Specifications:

CO2 Laser Safety Window is used for occasions requiring long-term adjustment or operation, with good safety performance. The laser protective window is installed on the door and window glass of the laser control area of the laboratory or factory and is used on the clapboard, it is particularly effective for protecting factory visitors.

The XL7PW4D5T 10600nm CO₂ laser safety window is designed for applications where strong attenuation at the CO₂ laser wavelength and high visible-light transmission are both important. Rather than using a broad-spectrum laser safety window that covers many unrelated wavelength bands, this acrylic filter is positioned specifically for CO₂ laser machine viewing and enclosure integration.

XL7PW4D5T provides OD6+ protection across 9000–11000nm, covering the commonly used 10600nm / 10.6µm CO₂ laser wavelength, while maintaining approximately 90% visible light transmission (VLT). This combination makes it particularly suitable for machine manufacturers and system integrators that need a protective viewing window without unnecessarily reducing normal visual observation through the enclosure.

OD6+ Protection for 10600nm CO₂ Lasers

The primary protection range of XL7PW4D5T is:

9000–11000nm: OD6+

Covers the commonly used 10600nm / 10.6µm CO₂ laser wavelength

Designed for wavelength-specific CO₂ laser protection

Suitable for integration into laser machine doors, viewing panels, and safety enclosures

An optical density of OD6+ corresponds to a very high level of attenuation within the specified wavelength range. For OEM buyers, however, OD should always be evaluated together with the actual laser wavelength and the laser safety requirements of the complete system.

This makes the XL7PW4D5T more application-specific than a generic laser protective panel that may cover multiple UV, visible, and near-infrared wavelength bands but does not prioritize the 10.6µm CO₂ laser range.

90% VLT for Clear Machine Observation

A key feature of this CO₂ laser viewing window is its approximately 90% visible light transmission.

For equipment manufacturers, high VLT can be important because operators may need to observe:

Workpiece positioning

Machine status

Material processing

Internal equipment movement

Setup and maintenance conditions

General activity inside the laser enclosure

The 90% VLT laser safety window is therefore designed to maintain a bright and clear viewing area while the filter provides its specified attenuation in the 9000–11000nm CO₂ laser range.

It is important to note that VLT and laser protection are different specifications. VLT describes how much visible light passes through the window, while optical density defines laser attenuation at the specified hazardous wavelength.

For laser safety selection, the required OD should always be confirmed first; VLT is then used to evaluate how well the window supports normal visual observation.

Why Not Use a Broad-Spectrum Laser Safety Window?

A broad-spectrum laser safety window can be the correct solution when a machine contains multiple hazardous laser wavelengths and requires protection across several spectral bands.

However, broad-spectrum protection often involves a different balance between wavelength coverage and visible-light transmission.

For a machine that is primarily built around a 10600nm CO₂ laser, the buyer may not need extensive protection across many unrelated visible or near-infrared wavelengths. In this situation, a wavelength-focused 10.6µm CO₂ laser safety window can provide a more suitable combination of:

CO₂ wavelength coverage + high OD + high VLT + acrylic viewing area + custom machine integration

The selection logic is therefore not that a CO₂-specific window is universally "better" than a broad-spectrum window. The correct choice depends on the actual laser system.

A broad-spectrum window is more appropriate when:

Several hazardous laser wavelengths are present

The system uses multiple laser sources

Wider spectral protection is required by the risk assessment

The XL7PW4D5T CO₂ laser safety window is more appropriate when:

10600nm / 10.6µm CO₂ laser protection is the main requirement

High visible-light transmission is important

The viewing window is installed in a CO₂ laser machine or enclosure

OEM buyers need a custom acrylic viewing panel rather than a multi-band general-purpose filter

Additional OD4+ Protection at 266–355nm

In addition to its primary OD6+ protection from 9000–11000nm, XL7PW4D5T is also specified with:

266–355nm: OD4+

This provides an additional UV protection band that may be relevant for systems where wavelengths within this range are also present.

The 266–355nm specification should not be interpreted as meaning that every CO₂ laser machine requires UV protection. Instead, it gives system integrators an additional filter characteristic that can be evaluated when the complete laser equipment contains more than one relevant wavelength.

For multi-wavelength OEM systems, buyers should identify all hazardous laser wavelengths and verify the required OD at each wavelength before selecting the final laser safety viewing window.

Designed for CO₂ Laser Machine and Enclosure Integration

The XL7PW4D5T can be used as a CO₂ laser machine viewing window rather than only as a raw protective sheet.

Its main application scenarios can include:

CO₂ laser cutting machine viewing windows

CO₂ laser engraving machine enclosures

Laser machine access doors

Industrial laser safety enclosures

Equipment observation panels

Laboratory CO₂ laser barriers

Replacement viewing windows for existing equipment

Custom OEM laser enclosure projects

With a standard sheet size of 1200 × 1000 × 5mm and customizable dimensions, the acrylic panel can be evaluated for projects requiring specific viewing areas, window shapes, mounting holes, cut-outs, or machine-specific dimensions.

A CO₂-Focused Viewing Solution

For B2B buyers, the main value of XL7PW4D5T is the combination of three optical characteristics:

OD6+ at 9000–11000nm
90% visible light transmission
OD4+ at 266–355nm

Together with its acrylic construction and customizable format, these specifications make XL7PW4D5T a more clearly defined 10600nm CO₂ laser safety viewing window than a generic broad-spectrum protective panel.

For projects where 10.6µm CO₂ laser protection is the primary requirement and process visibility is also important, this model offers a focused solution for OEM machine and enclosure integration.

The XL7PW4D5T 10600nm CO₂ laser safety window is designed for equipment and enclosure applications where operators need visual access to the working area while maintaining wavelength-specific laser attenuation.

With OD6+ protection from 9000–11000nm, approximately 90% visible light transmission (VLT), a 5mm acrylic construction, and customizable dimensions, the window can be integrated into a variety of CO₂ laser machine and safety-enclosure designs.

The final suitability of the window should always be confirmed according to the actual laser wavelength, required optical density, equipment configuration, and applicable laser safety assessment.

CO₂ Laser Machine Door Viewing Window

For laser cutting, engraving, marking, or other CO₂ laser equipment, the access door often requires a transparent area so operators can observe the machine interior without opening the enclosure.

A CO₂ laser machine door viewing window can provide this observation area while maintaining the specified laser attenuation of the selected filter.

XL7PW4D5T is particularly relevant for machine-door applications where buyers require:

Protection around the 10600nm / 10.6µm CO₂ laser wavelength

OD6+ attenuation across 9000–11000nm

High 90% VLT for clear visual observation

Custom window dimensions

CNC-cut profiles, holes, or cut-outs where available

Integration into new or existing equipment doors

For OEM equipment manufacturers, the viewing panel can be produced according to the machine opening and mechanical drawing rather than relying only on a fixed standard window size.

CO₂ Laser Safety Enclosure Window

A CO₂ laser enclosure window is commonly used when the laser process is contained within a protective housing but still needs to remain visible from outside the enclosure.

For these projects, the viewing window must satisfy both optical and mechanical requirements. Buyers need to consider the hazardous wavelength and OD requirement, but also the viewing area, panel thickness, mounting method, enclosure structure, and required visibility.

The XL7PW4D5T can be evaluated for:

• Industrial laser safety enclosures
• CO₂ laser processing cells
• Custom machine housings
• Automated laser workstations
• Retrofit enclosure projects
• OEM protective viewing assemblies

Its 90% visible light transmission can be especially useful in enclosure designs where maintaining a bright internal viewing area is important for process observation.

Observation Windows for Laser Processing Equipment

In many laser machines, the viewing panel is used primarily for monitoring rather than direct operator interaction.

A CO₂ laser observation window can allow personnel to visually check:

Workpiece positioning

Material loading

Internal machine movement

Process status

Equipment setup

Maintenance conditions

General operation inside the enclosure

For this type of application, high visible-light transmission can improve usability while the protective filter provides its specified attenuation at the relevant laser wavelength.

This is where the combination of OD6+ CO₂ laser protection and 90% VLT becomes more useful than simply selecting a dark, broad-spectrum protective panel with more wavelength coverage than the system actually requires.

Laboratory Laser Partitions and Viewing Panels

XL7PW4D5T may also be considered for selected laboratory laser partition or controlled-area viewing applications where 10.6µm CO₂ laser radiation is part of the identified hazard.

Potential installations can include:

Laboratory laser barriers with viewing sections

CO₂ laser research enclosures

Optical experiment housings

Controlled-access laser work areas

Custom protective screens with observation windows

For laboratory applications, the protective window should be selected as part of the overall laser safety design rather than as a standalone safety measure.

The required OD, wavelength range, window dimensions, mounting structure, and applicable standards should be confirmed based on the complete laser system and hazard evaluation.

Replacement Windows for Existing CO₂ Laser Equipment

Not every inquiry involves a new machine.

The 10600nm CO₂ laser safety acrylic window can also be evaluated as a replacement viewing panel for existing laser equipment when the original window is damaged, scratched, modified, or no longer suitable for the current machine configuration.

For replacement projects, buyers should provide as much information as possible, including:

• Actual laser wavelength
• Required OD
• Existing window dimensions
• Panel thickness
• Mounting-hole positions
• Edge shape
• Cut-outs or irregular profiles
• Equipment drawing or original window drawing
• Required quantity

Matching only the outside dimensions is not sufficient; the replacement window should also be verified for the required wavelength and protection level.

OEM Integration into Custom Laser Equipment

For OEM machine manufacturers, the custom CO₂ laser safety window can be treated as an engineered component of the enclosure rather than simply as a standard acrylic sheet.

A typical integration process may begin with:

Laser wavelength → required OD → viewing area → window dimensions → machining requirements → mounting method → technical documentation

This allows the optical protection requirement and mechanical installation requirement to be reviewed together.

For projects using the XL7PW4D5T filter, the standard 1200 × 1000 × 5mm acrylic sheet can serve as the base material for custom viewing-window configurations, subject to the available machining and project requirements.

Choosing the Right Application

XL7PW4D5T is best positioned for applications where 10600nm CO₂ laser protection and high process visibility are both important.

Typical use cases include:

Machine door viewing window → direct observation of the enclosed process
Laser safety enclosure window → observation through a protective housing
Equipment observation window → process and machine-status monitoring
Laboratory partition window → controlled-area visual access
Replacement laser window → custom replacement based on an existing drawing

For each application, the final CO₂ laser safety viewing window should be selected according to the actual laser system rather than by application name alone.
