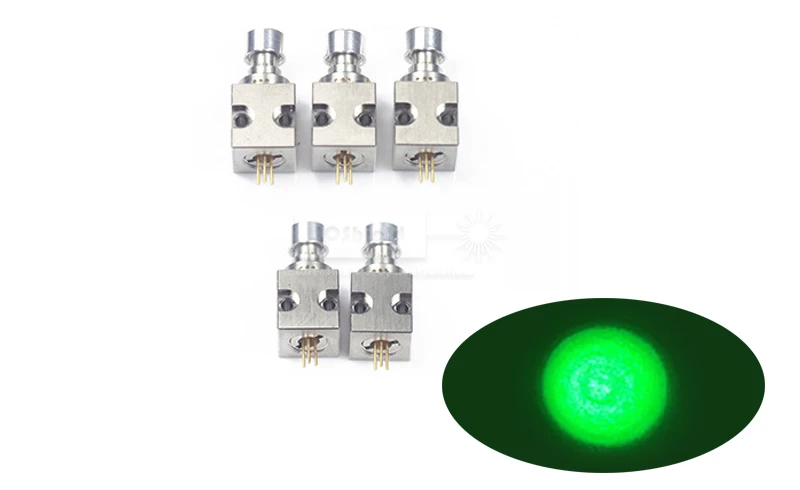

Fiber Coupled Laser is a green fiber coupled laser diode module subassembly with FC/SMA905 receiving light output, the maximum laser output power is 70mW at 520nm. 520nm Green Fiber Coupled Laser has a compact size and low power consumption, our fiber-coupled laser uses a specially designed LD driver based on customer application and PD feedback can be added to improve the reliability and stability of the laser.

Specifications:

Product Name	Fiber Laser	Product Size	251010mm
Optical Output Power	65-70mw	Working Current	200-240mA
Operating Voltage	6.6-7.7V	Laser Wavelength	520土5nm
Electric Power	1.32-1.84W	Output Power	≥85%
Operating Temperature	-10°C-60°C	Operating Hours	10000H
Storage Temperature	-40°C-85°C	Core	105um/125um
Main Structure Material	Copper	Coupling Material Lens	Optical Glass
Welding Debugging Structure	304 Stainless	Interface Type	2.5mm optical core nut fixed

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.

Fiber Coupled Laser head size is 25*10*10mm.

High-quality Fiber Coupled Laser, polarization-maintaining fiber-coupled laser, all of which are pigtailed coaxially coupled semiconductor lasers, with a maximum output power of up to 70mW, high coupling efficiency, good spot quality, stable performance, and long life, reaching international leading level, The products are well received, and the product wavelength and output power can be customized according to customer needs.

Fiber Coupled Laser High stability and high-quality fiber-coupled laser module, the fiber-coupled laser module series is characterized by its small size, high transmission rate, and competitive price. Can be applied to optical alignment systems, medical laser instruments, CTP laser printing, OEM instruments, laboratory instruments, laser testing, and inspection equipment.
