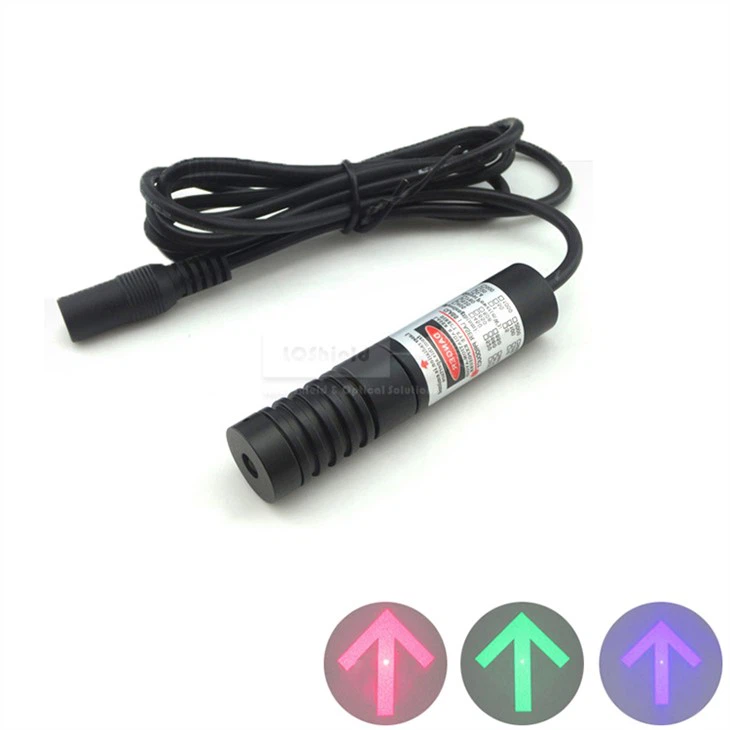

14.6° Solid Arrow DOE Laser Module:
The 14.6° Solid Arrow DOE (Diffractive Optical Element) laser module is a high-performance, high-precision laser projector that uses advanced diffractive optical technology to generate a clear, uniform solid arrow-shaped laser pattern. The module is suitable for a variety of industrial, commercial and scientific applications and has the characteristics of high stability, low power consumption and long life.
Product Features:
- Solid Arrow Pattern – Generates a clear, high-contrast 14.6° solid arrow laser beam for precise positioning and pointing applications.
- High Optical Efficiency – Using high-quality DOE optical components, the spot is uniform, the edge is sharp, and the energy distribution is uniform.
- Wide operating voltage – Supports 3V-5V DC power supply, compatible with a variety of device power systems.
- Low power consumption design – High efficiency and energy saving, suitable for long-term continuous operation.
- Compact and lightweight – Miniaturized design, easy to integrate into various devices.
- High stability – High-quality laser diodes and heat dissipation design ensure long-term stable operation.
- Multiple wavelength options – Different wavelength options such as red light (650nm), green light (520nm), and blue light (450nm) are available.
Specifications:
| Lens Angle & Spot Size | Lens Degree:14.6° X direction: 14.6° At 0.5 meters, the length in the X direction is 128 mm Y direction: 13.7° At 0.5 meters, the length in the Y direction is 120 mm |
|
Wavelength |
650nm/520nm/450nm/Customizable |
|
Laser Power |
Red 100mW/Green 50mW/Blue 100mW |
| Electric Current | <500mA |
| Operating voltage | DC 2.8-5.2V |
| Dimension | Φ16X70MM |
| Operating Temperature | Normal temperature |
| Cooling Mode | Natural cooling |
| Life Time | >8000hours |
| Accessories | Mount and Power Adaptor |

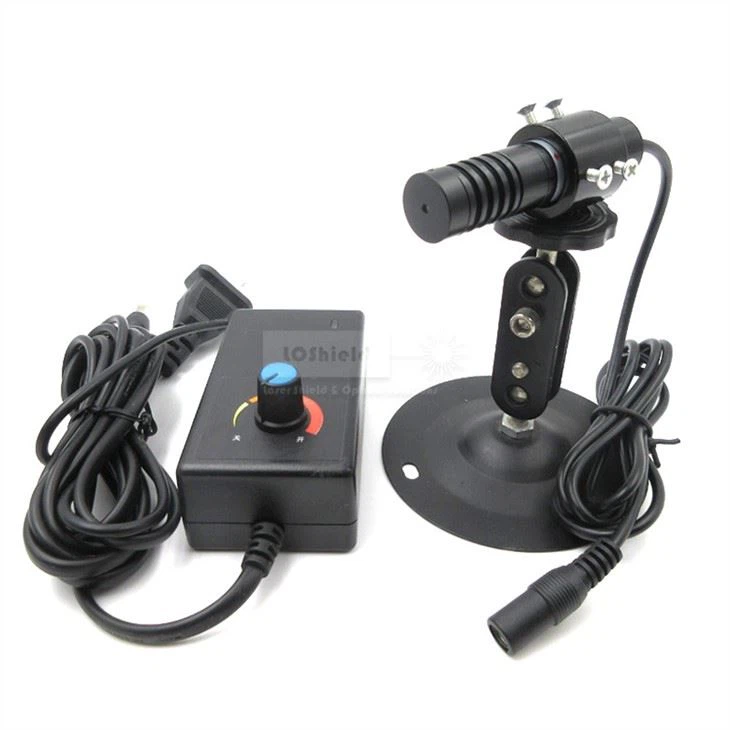

Packing List:
📦 1 pc× 14.6° Solid Arrow DOE Laser Module
📦 1 pc× 360 Mount
📦 1 pc× Power Adaptor
📦 1 set × Mounting Accessories
Typical Applications:
- Industrial positioning and alignment – Laser positioning for machining, automation equipment, and 3D printers.
- Architecture and construction – Horizontal/vertical calibration of walls and floors, arrow pointing marks.
- Stage lighting and laser performances – Special laser effects to enhance visual impact.
- Medical and beauty equipment – Positioning assistance for precision skin treatment and hair removal equipment.
- Scientific research and experiments – Optical experiments, laser ranging, optical path calibration, etc.
- Consumer electronics – Integrated into smart homes, projectors, toys and other products.
Why choose our DOE laser module?
- High-quality optical components – use precision diffraction optical design to ensure clear and sharp patterns.
- Strict quality control – each batch of products is strictly tested to ensure stable performance.
- Customized service – supports customized requirements of different wavelengths, powers, and patterns.
- Professional after-sales support – provides technical consultation and after-sales guarantee.
Safety Tips
⚠ This product is a Class IIIA laser device. Avoid direct exposure to eyes or skin.
⚠ Please comply with local laser safety regulations when using.
⚠ Do not use in flammable or explosive environments.
