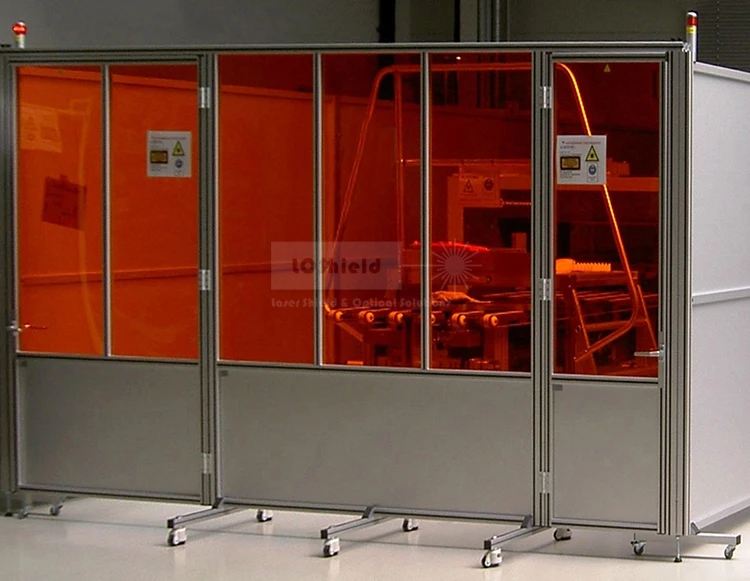

UV Laser Machine Safety Screen for 355nm, 405nm & 450nm Lasers

We have many Laser Machine Safety Panels with different protection bands that can be installed in combination with aluminum frames to make removable laser protection panels to create movable safety laser protection rooms to protect customers and their employees from laser sources.

A single laser safety screen can protect one side of a workstation, but many open laser systems require a larger and more controlled working boundary. By combining multiple screen sections, JTBYShield can create a modular laser safety zone around UV, violet, and blue laser equipment.

L-Shaped Laser Safety Barrier

An L-shaped laser safety screen layout is suitable when the workstation is positioned close to a wall or existing machine structure and only two open sides need additional protection.

This configuration helps separate the laser processing area from nearby walkways while keeping operator access available from the remaining side.

Recommended for:

355nm UV laser marking stations

405nm laboratory systems

450nm laser processing workstations

Corner-positioned laser equipment

U-Shaped Laser Safety Zone

A U-shaped laser safety barrier provides wider coverage around three sides of an open workstation.

This layout is useful when the laser machine is located in a shared production, testing, or laboratory area and requires a more clearly defined protective zone without installing a complete machine enclosure.

The open side can be positioned according to operator access, material loading, and workflow requirements.

Multi-Panel Modular Barrier

For larger or irregular laser work areas, multiple panels can be arranged as a modular laser safety screen system.

The number, width, and position of the panels can be adapted to:

• Laser workstation dimensions
• Operator position
• Nearby pedestrian routes
• Equipment access
• Available floor space
• Future workstation changes

This modular approach allows the protective boundary to be expanded or rearranged when equipment layouts change.

From Workstation Layout to Screen Configuration

For custom laser safety zone projects, customers can provide:

Laser wavelength

Machine or table dimensions

Operator position

Required protected sides

Available floor space

Preferred fixed or mobile configuration

Workstation drawing or photos

Based on this information, the screen layout can be configured as a single-panel, L-shaped, U-shaped, or multi-panel laser safety barrier to match the actual working environment.

Most standard laser machine enclosures are fixed and inflexible, making them impractical for open workbenches, temporary testing stations, and frequently adjusted laser setups. ThisUV laser safety screen serves as a flexible, modular laser barrier, perfectly suited for open or semi-enclosed working environments. It delivers reliable protection for 355nm, 405nm, and 450nm laser systems across production lines, industrial processing stations, and professional laser laboratories.

1. 355nm UV Laser Marking Workstations

Application Needs

355nm UV lasers are widely adopted for precision marking and fine processing on heat-sensitive materials, including plastics, electronic components, and glass. Many UV marking devices feature open or semi-open structures, which leave scattered UV laser radiation exposed and pose potential risks to nearby operators and walking channels. Traditional full-machine housing modifications are costly and inflexible for existing production layouts.

Why This UV Laser Safety Screen Fits

Equipped with high-performance laser-protective PMMA filter, this 355nm laser safety barrier provides consistent OD6+ protection covering the 315–450nm spectral range, fully targeting common UV laser wavelengths represented by 355nm. While blocking harmful UV laser leakage, the panel retains around 60% visible light transmittance, allowing operators to clearly observe processing status, workpieces and equipment conditions in real time.

No equipment redesign or fixed housing renovation is required. The screen can be directly deployed around existing UV laser marking machines to quickly build a standardized safety isolation zone.

Recommended Layout Configuration

For fixed 355nm UV marking stations, adopt single-panel or L-shaped placement based on machine orientation and pedestrian pathways. For large-area open processing zones, combine multiple modular screens to expand the enclosed safety range and achieve comprehensive UV laser isolation.

2. 405nm & 450nm Violet & Blue Laser Processing Areas

Application Needs

405nm violet lasers and 450nm blue diode lasers are commonly integrated into industrial laser engravers, precision processing equipment, and OEM laser systems. Most open-frame laser devices lack auxiliary safety isolation structures, making it necessary to set up transparent protective barriers to separate laser operating areas from staff and public production zones.

Why This UV Laser Safety Screen Fits

This modular laser safety screen supports multi-wavelength protection, covering both 405nm and 450nm laser bands with stable OD6+ filtering performance. A single set of barriers can serve multiple violet and blue laser workstations, effectively reducing repetitive safety configuration costs.

The high-transparency filter panel ensures zero visual obstruction for daily equipment operation, workpiece replacement, and equipment debugging, while forming a clear physical isolation boundary against scattered and reflected laser light.

Recommended Layout Configuration

For standalone laser engraving and processing machines, L-shaped or U-shaped enclosures are recommended to adapt to operator access habits and equipment layout. For shared production equipment and frequently adjusted stations, the mobile modular structure allows flexible displacement and reassembly, suitable for dynamic production line needs.

3. Laser Laboratories & Flexible R&D Testing Areas

Application Needs

Laser R&D laboratories and equipment testing departments feature highly changeable optical paths, experimental fixtures, and equipment layouts. Fixed permanent laser enclosures greatly limit experimental flexibility and cannot adapt to frequent prototype testing, parameter verification, and scheme iteration.

Why This UV Laser Safety Screen Fits

As a mobile laser safety barrier with modular design, this UV laser screen can be freely combined, moved, and disassembled according to experimental layouts. It builds temporary yet standardized laser safety isolation zones without occupying fixed laboratory space.

Researchers can clearly observe internal test conditions through the transparent laser filter, ensuring both operational safety and experimental convenience during UV laser testing, equipment verification, and prototype development.

Recommended Layout Configuration

Laboratory and R&D scenarios are best matched with wheeled mobile screens, multi-panel modular combinations, and flexible L/U-shaped protection layouts. We also support customized sizes and targeted filter wavelength selection, fully adapting to temporary laser testing, small-batch trial production, and long-term laboratory laser operation scenarios.

A professional laser safety screen should provide more than a stated wavelength range. The selected filter should have identifiable optical performance and technical documentation, while the screen structure should be configured according to the actual laser source and workstation layout.

JTBYShield combines laser-protective filter data with custom screen design to help OEM manufacturers, laboratories, and industrial users build a suitable safety barrier around their laser work areas.

Test Evidence for the Laser Protective Filter

For 355nm, 405nm, and 450nm laser applications, the selected PMMA filter can be identified by its specific model, protection range, optical density, and visible light transmission.

For professional procurement, available supporting documents can include:

• Optical density test data
• Spectral transmission information
• Filter model identification
• Visible light transmission data
• Test report
• Applicable EN documentation
• Product or panel marking information

Any certification displayed should clearly identify the tested filter or laser safety screen configuration covered by the document rather than implying a broader certification scope.

Custom Screen Design Around Your Workstation

Laser work areas vary in machine size, operator position, surrounding walkways, and available floor space. For this reason, the safety screen can be customized according to the actual workstation rather than limited to one standard panel size.

Customization can include:

• Screen width and height
• Single or multi-panel configuration
• L-shaped or U-shaped layouts
• Aluminum frame dimensions
• Fixed or mobile structure
• Support feet or wheel configuration
• Filter model and protection wavelength
• Panel arrangement
• Workstation access requirements
• OEM labeling and project-specific requirements

From Laser Parameters to Screen Configuration

For a custom UV laser safety screen, customers can provide:

1. Laser information
Wavelength, output power, CW or pulsed operation, and application.

2. Workstation information
Machine dimensions, operator position, exposed sides, nearby walkways, and available floor space.

3. Required safety-zone layout
Single panel, L-shaped, U-shaped, mobile, or multi-panel barrier.

4. Technical requirements
Required protection level, filter model, VLT, applicable test documentation, and screen dimensions.

Based on these parameters, JTBYShield can evaluate the appropriate laser protective filter and modular screen configuration before production.

Custom-Built for UV & Blue Laser Work Areas

Whether the project involves a 355nm UV laser marking station, a 405nm laboratory system, or a 450nm blue laser processing area, the goal is not simply to supply a transparent panel.

The objective is to combine verified wavelength-specific protection with a screen layout that matches the actual laser workstation, creating a practical laser safety zone for professional use.

Our UV laser protection screen provides all-round protection for your laser operation safety with its high-quality materials, precise protection performance and wide applicability. Choosing our products means choosing a safe and efficient laser operation environment.
