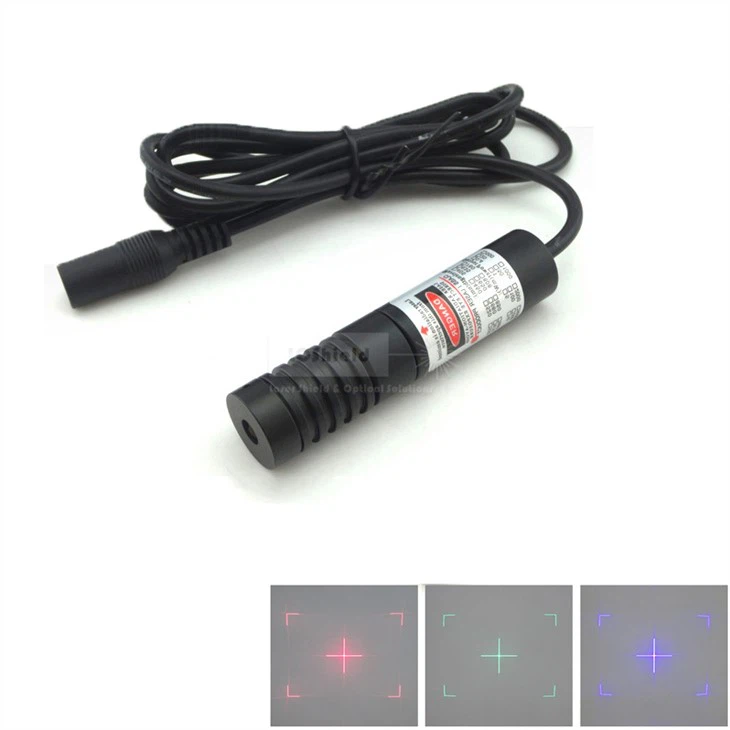

40.6° Cross Positioning DOE Laser Module

40.6° Cross Positioning DOE Laser Module Light Spot 0.5 meters Details:

Lens angle: 40.6°
0.5m: Length (40.6°): 370mm
0.5m: Width (31.5°): 281mm
At 0.5m: Cross length (13°): 115mm
Installation height 0 meters - 5 meters can be used

The wavelength, Output Power, Voltage, and Size Customizable

Specifications:

The function of the 40.6° Cross Positioning DOE Laser Module DOE lens is to use the diffraction principle of light to convert the point light source of the laser into speckle patterns such as custom patterns, two-dimensional lattices, multi-line, circular lattices, etc. We use finely designed DOE lenses, which are cost-effective but have a very clear spot effect. Structured light DOE has a complete range and can provide hundreds of standard products. Including multi-line DOE modules, one-dimensional lattice, linear DOE modules, two-dimensional lattice DOE modules, circular and circular lattice DOE modules, cross-line DOE modules, random lattice DOE modules, etc.

The 40.6° Cross Positioning DOE Laser Module intelligent driver board with imported IC can supply power in a wide range of 2.8-5.2V (other voltages can be customized)
