Products overview

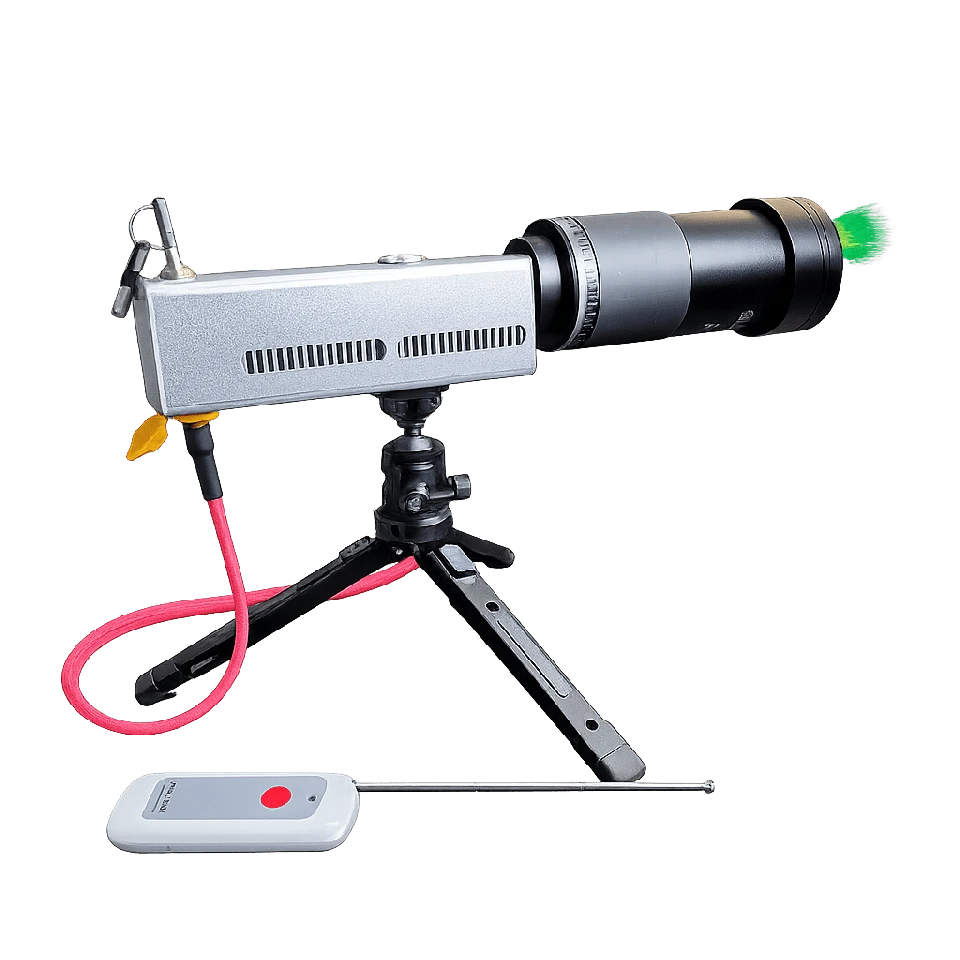

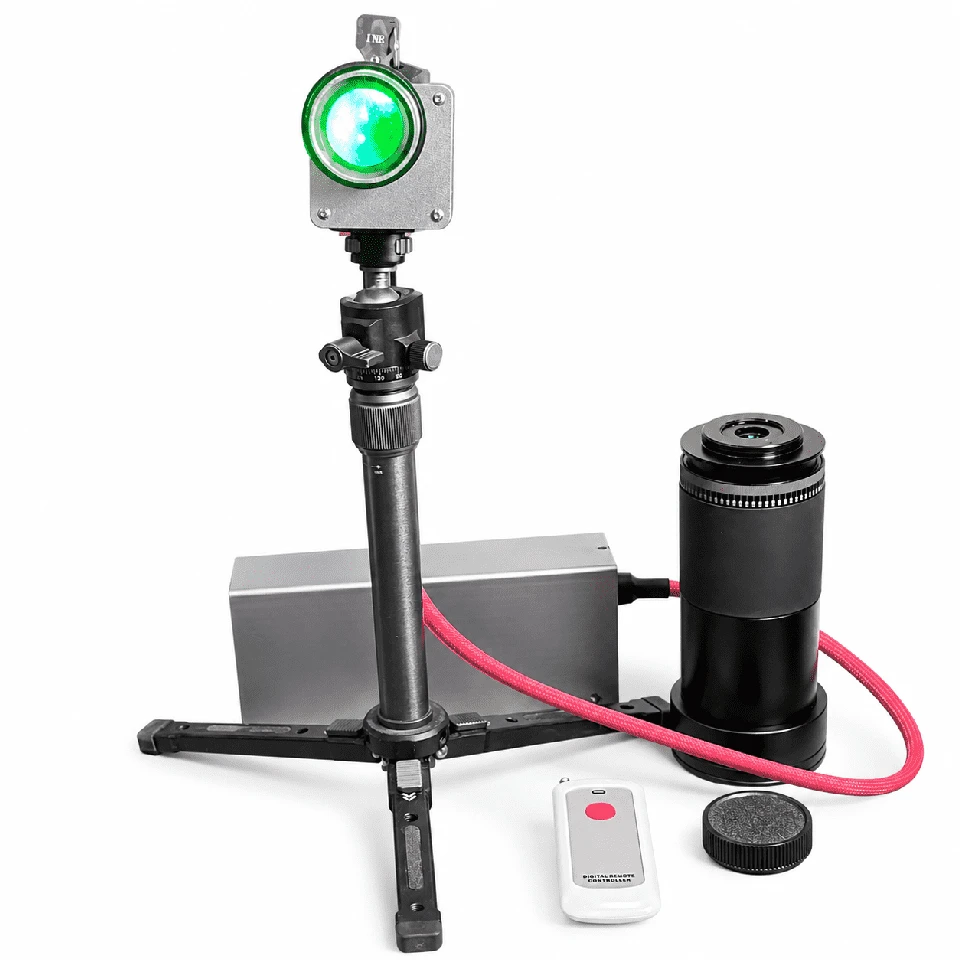

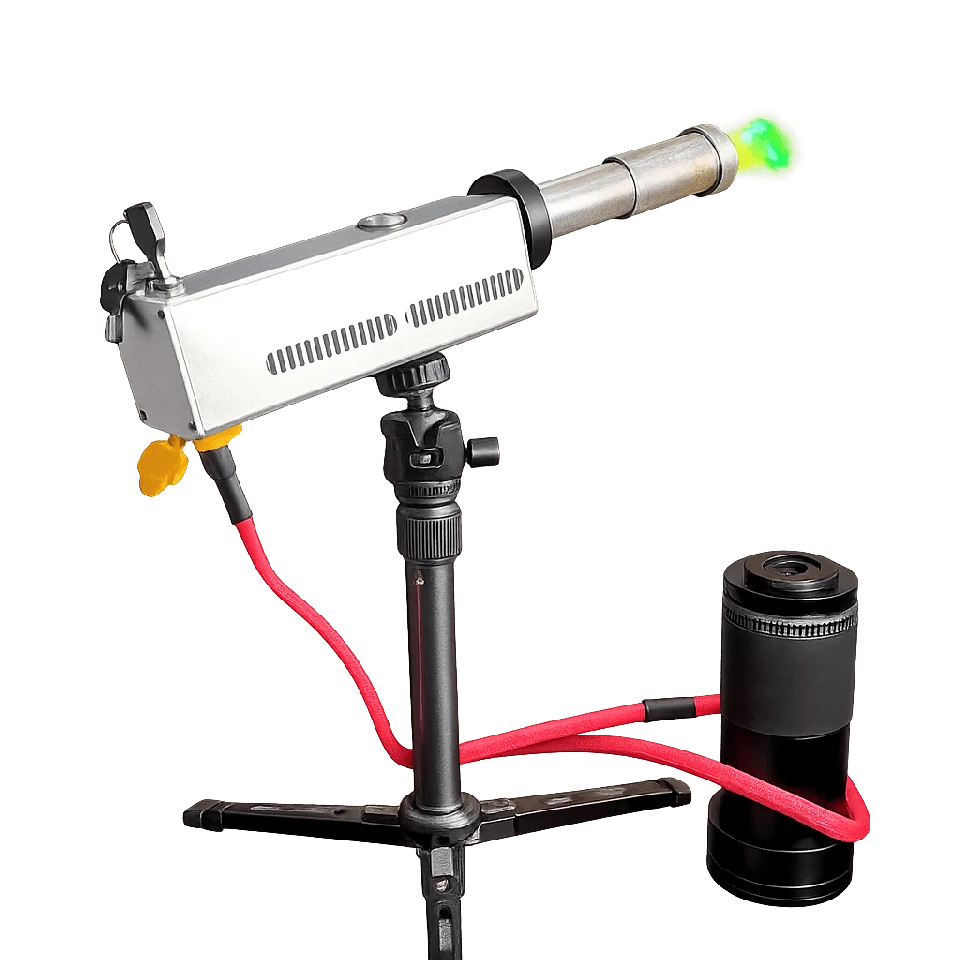

The 260W Split-Type Laser System is engineered for professional users engaged in optical research, laboratory demonstrations, engineering development, educational training, and DIY experimentation.
Powered by a MAX Photonics laser source, the system delivers stable direct-beam output in a compact aluminum-alloy housing. A separate high-capacity battery pack reduces the weight of the main unit while providing flexible power management for indoor and outdoor applications.
Designed for precision operation, the system features manual focus adjustment, a coaxial green aiming laser, multiple safety switches, and universal tripod compatibility.
Key Features
260W High Optical Output
Delivering up to 260W optical output, the system provides a concentrated 915nm direct beam suitable for controlled optical experiments, laboratory testing, engineering evaluation, and research applications.
MAX Photonics Laser Source
Built around an original MAX Photonics laser module, the system offers stable optical performance, reliable operation, and consistent beam quality for professional users.
Lightweight Aluminum Alloy Construction
The enclosure is precision-machined from high-strength aluminum alloy, providing excellent structural rigidity while maintaining a lightweight portable design.
915nm Invisible Infrared Beam
Operating at 915nm, the primary beam is invisible to the naked eye. A built-in coaxial green aiming laser provides visual alignment during setup.
At extended distances, slight aiming deviation and beam divergence of the auxiliary green laser are normal characteristics.
High-Capacity External Battery System
The system is powered by an 8S Samsung 50S lithium battery pack with high-capacity cells for stable power delivery.
Samsung 50S Cells
- Fully Charged Voltage: 33.6V
- XT60 Power Connector
- 60cm Power Cable
For users supplying their own battery, a 33.6V power source capable of at least 20A continuous output is recommended.
To maintain optimal performance, battery voltage should remain above 29V during operation.
Intelligent Thermal Protection
An integrated temperature monitoring system protects internal components from overheating.
When the operating temperature reaches approximately 45°C, the protection system automatically interrupts output until the device cools sufficiently.
This design helps improve long-term reliability and operational safety.
Triple Safety Control System
For enhanced operational safety, the laser incorporates three independent control methods:
- Physical power switch on the main unit
- Wireless remote controller
- Key-operated master safety switch
Multiple control options allow secure operation while reducing the possibility of accidental activation.

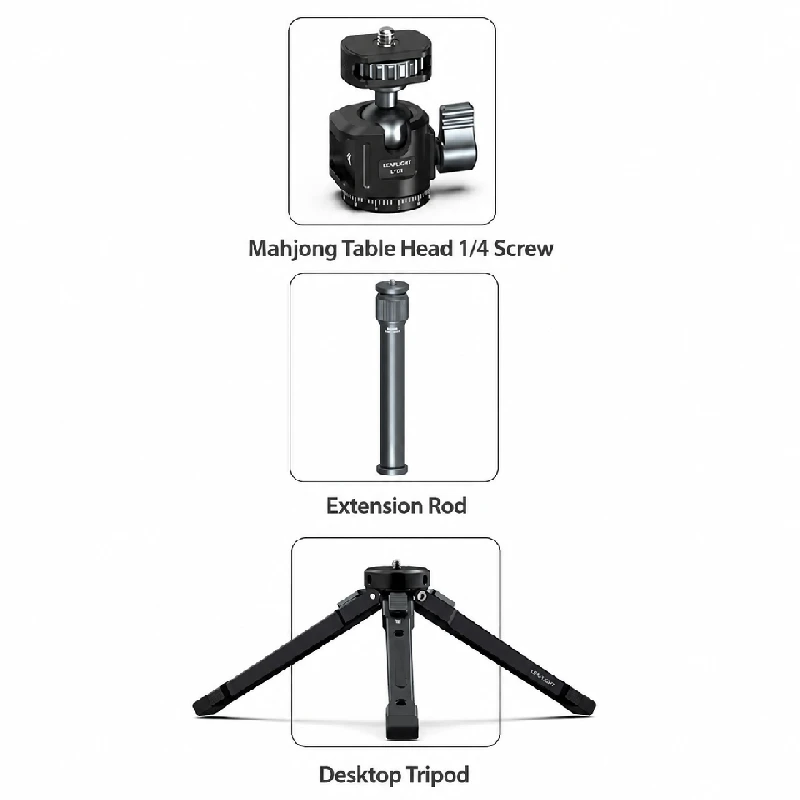

Universal Tripod Compatibility
The housing includes standard 1/4-inch and 3/8-inch mounting threads, making the system compatible with most photographic tripods, heavy-duty supports, and positioning equipment.
Recommended Working Distance
Recommended operating distance depends on the installed focusing lens.
| Configuration | Recommended Distance |
|---|---|
| Without Lens | 1–2 m |
| Small Lens | 1–2 m or greater |
| Large Lens | 2–3 m or greater |
Manual focus adjustment is required whenever the working distance changes.
Controlled Performance Demonstration
Under controlled laboratory conditions with proper focusing and stable mounting, the system has demonstrated concentrated energy effects on selected test materials.
Reference demonstrations include:
- Thermal penetration of a standard aluminum beverage can at approximately 20 meters using the large focusing lens.
- Thermal ignition of dark-colored corrugated cardboard at approximately 50–55 meters under suitable environmental conditions.
Actual performance depends on multiple factors, including:
- Accurate manual focusing
- Stable equipment mounting
- Target material and surface characteristics
- Ambient temperature
- Weather conditions
- Atmospheric visibility
- Battery voltage
These demonstrations are provided for technical reference only and should not be interpreted as guaranteed performance under all conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Split-Type Laser System |
| Laser Source | MAX Photonics |
| Housing Material | Aluminum Alloy |
| Optical Output Power | 260W |
| Wavelength | 915nm |
| Output Type | Direct Beam |
| Auxiliary Aiming | Coaxial Green Laser |
| Thermal Protection | Automatic at 45°C |
| Battery | 8S Samsung 50S Lithium Pack |
| Battery Voltage | 33.6V Full Charge |
| Recommended Minimum Voltage | Above 29V |
| External Power Recommendation | 33.6V / ≥20A |
| Power Connector | XT60 |
| Cable Length | 60cm |
| Tripod Mount | 1/4" & 3/8" Universal Thread |
Lens Options
Choose the optical configuration that best suits your application:
- Large Focusing Lens – Designed for longer working distances and higher energy concentration.
- Small Focusing Lens – Ideal for short-range applications with a more compact beam profile.
- Large & Small Lens Combo – Includes both lens options, allowing you to switch between short-range and long-range applications as needed.
Available Options:
- Large Lens Version
- Small Lens Version
- Large + Small Lens Combination
Important Safety Information
This is a professional high-power laser product intended for trained users operating in controlled environments.
- Never direct the beam toward people or animals.
- Never aim at aircraft, vehicles, public roads, or reflective surfaces.
- Always wear laser safety eyewear suitable for the operating wavelength.
- Use only in legally permitted environments.
- Keep away from children and unauthorized users.
- Verify all applicable local regulations before purchase and operation.
