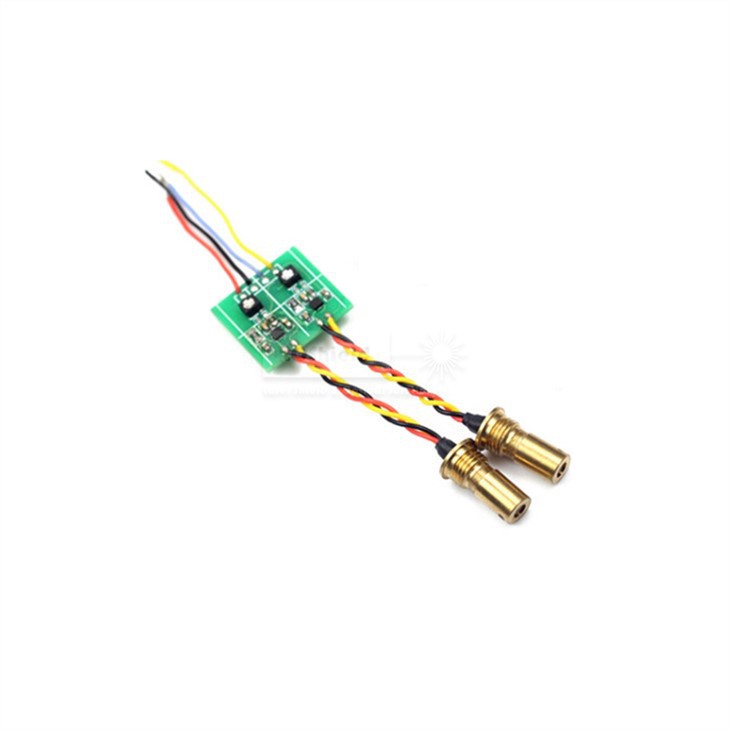

520nm 850nm Dual Head Laser Module adopts original laser diode, 850nm infrared laser sighter, 520nm green light positioning laser. The appearance structure is made of copper structure, which can be used in laser sighting, positioning, calibration, indication, etc.

Specifications:

Wavelength	520nm&850nm
Output Power	3~20mw
Operating Voltage	3~5V
Working Current	≤ 40mA
Laser Light Source	520nm green laser & 850nm infrared laser
Operating Temperature	-30℃ to 70℃
Dimensions	Customizable
Core Device	Semiconductor laser tube
Spot Mode	Dot
Product Material	Copper Structure
Duty Cycle	3~50%
Way Of Working	Continuous
Life Span	10000H

520nm 850nm Dual Head Laser Modul integrates 520nm green visible light aiming laser irradiation indication and 850nm infrared laser rangefinding functions in one, used for shooting target training and competition, entertainment field. It can use for a laser gun, laser target, controller, remote control, computer, and so on.

520nm 850nm Dual Head Laser Modul involves the field of laser aiming, more specifically a portable laser aiming module for dual-wavelength laser reconnaissance systems, which can achieve dual-wavelength laser pointing stability in all-weather environments, and has the characteristics of simplicity, reliability, and high precision.
