This 635nm 5mw Red Laser Diode is a high-performance semiconductor laser device with excellent optical performance and stable operating characteristics. It is packaged in TO18-5.6mm and is suitable for various optoelectronic devices and system applications.

405nm Pumped Solid State Single Mode Laser Diode

Product Name	650nm 5mW TO5.6 Laser Diode with PD
Product Number	XLD-650-5mw
Wavelength	650nm
Output Power	5mW

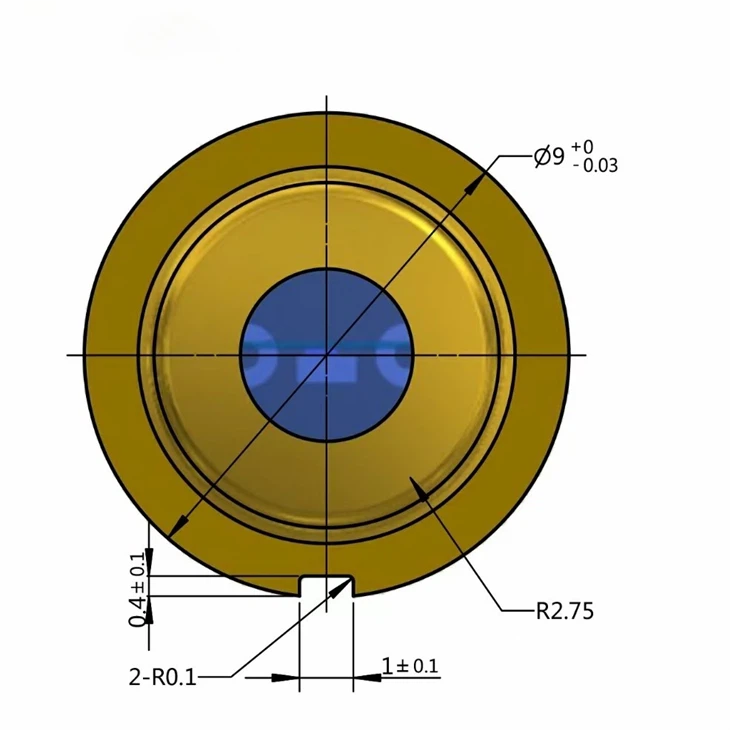

Package Type	TO18-5.6mm
Working Voltage	2.2V
Input Current	<100mA
Grade	Industrial grade
Features	With PD; uniform brightness
Life Span	>8000 hours

Application areas:

1. Infrared communication: suitable for application scenarios such as infrared data transmission and remote control systems.
2. Spectral analysis: It can be used for spectral measurement in gas analysis, environmental monitoring and other fields.
3. Medical diagnosis: It can be used in medical instruments such as blood testing and skin lesion diagnosis.
4. Optical sensor: Can be used for optical sensor applications such as distance measurement and speed measurement.

635nm 5mw Red Laser Diode Features:
1. Wavelength: 650nm, which belongs to the red light band and is suitable for infrared communications, spectral analysis, medical diagnosis and other fields.
2. Power: 5mW, providing sufficient output power to meet most application requirements.

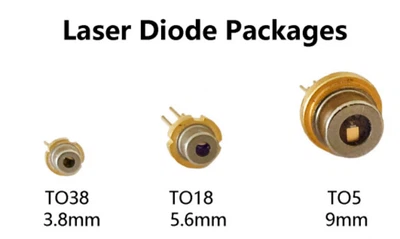

3. Packaging: TO18-5.6mm, in line with industry standard packaging, easy to install and integrate into various devices.
4. With PD (Photodiode): built-in photoelectric detector, which can realize photoelectric conversion function and facilitate photoelectric signal processing and measurement.

405nm Single Mode Laser Diode

Precautions:
1. Please use it within the specified operating current range to avoid overloading or damaging the device.
2. During use, please do not touch the laser part to avoid burns or damage.
3. Please ensure that the laser is in good heat dissipation conditions to maintain stable working performance.
4. For more power or other customization needs, please contact us for more information.
