In modern industrial applications, 30 Watt (W) 1064 nanometer (nm) fiber laser marking machines are favored for their high efficiency and versatility. However, operator safety cannot be ignored when operating such high-tech equipment. To ensure the safety and health of operators under long-term working conditions, appropriate protective measures must be taken, and product parameters, characteristics, application scope and correct operating procedures must be understood.
Product parameters
1. Laser type: fiber laser
2. Power: 30W
3. Wavelength: 1064nm
4. Marking range: 200x200mm
5. Marking speed: 8 meters/second (M/s)
6. Working frequency: 40-60kHz
7. Marking depth: up to 2mm on the material
Application scope
The machine is suitable for marking various metal and non-metal materials, such as tool accessories, jewelry, electronic components, plastics, glass, etc., providing efficient and accurate marking solutions for various industries.

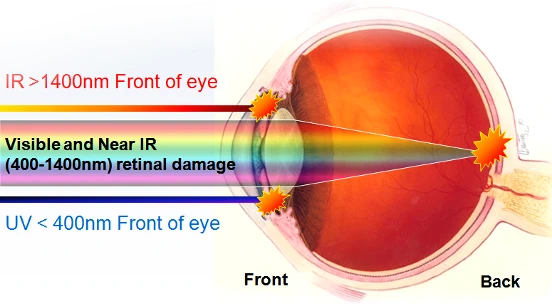

Why is this machine harmful to the eyes?
Laser equipment is hazardous to the eyes, primarily because the laser beam has a very high energy density. When a beam of this energy density is directly irradiated into the eye, it may cause damage to the retina or other eye tissues.
Specifically, here are a few possible reasons:
1. High energy absorption: After the high energy of the laser is absorbed by the tissue, it may cause the destruction of cells and tissues. For a tissue as sensitive as the eye, this damage can be catastrophic.
2. Photothermal effect: When the laser beam comes into contact with the transparent medium (such as water, glass) in the eye, it will rapidly heat and generate steam. This can lead to damage to structures such as the cornea or lens.
3. Reflection and Scattering: If the laser beam is reflected or scattered by objects, it may accidentally shine into the eyes. For example, an operator may accidentally come into contact with a laser beam without appropriate protective measures.
4. Prolonged exposure: Even if the energy of the laser beam is low, if exposed to its radiation for a long time, it may cause cumulative damage.
Therefore, to protect the safety of operators, strict safety measures must be taken, including the use of specialized laser protective glasses to prevent direct laser beam exposure to the eyes, and engineering controls to limit the spread and exposure range of the laser beam.
What protective gear should I wear with this machine?
For the 30 Watt (W) 1064 nanometer (nm) fiber laser marking machine, in order to ensure the safety of the operator, it is recommended to wear the following protective equipment:
1. Laser protective glasses: This is the most basic protective equipment. Choose laser protective glasses with the appropriate wavelength (1064nm) and safety rating (such as EN 207/208 or ANSI Z136.1 standards). These glasses effectively absorb and reflect laser beams of specific wavelengths, thus protecting the eyes from direct exposure.
2. Laser protective clothing: Although 30-watt lasers are generally less harmful to the skin, to prevent accidental contact or reflection, it is recommended to wear protective clothing that is resistant to laser radiation. This garment is usually made of special materials that prevent the laser beam from penetrating deeper into the skin.
3. Warning signs: Set obvious warning signs around the machine to remind operators to pay attention to potentially dangerous areas and take necessary precautions.
4. Engineering control measures: Limit the spread and exposure range of laser beams through reasonable engineering layout and safety facilities. For example, shields, gratings, and other optical components are used to reduce scattering and reflection of the laser beam.
5. Training and education: Provide regular laser safety training to operators to increase their awareness of potential hazards and teach correct operating procedures and emergency response methods.
Safety risks when operating laser equipment can be minimized by adhering to the above safety measures. It is important to always remember that regardless of the power of the laser device, safety precautions should never be neglected.
