With the widespread application of laser technology in the fields of industry, medical treatment, scientific research, etc., the safety of laser equipment has received increasing attention. The leakage of laser beams and the accumulation of static electricity will not only damage the equipment, but also pose a threat to the safety of operators. As an important safety protection device, the anti-static laser protection plate can effectively solve these problems and ensure the safe and efficient operation of laser equipment.

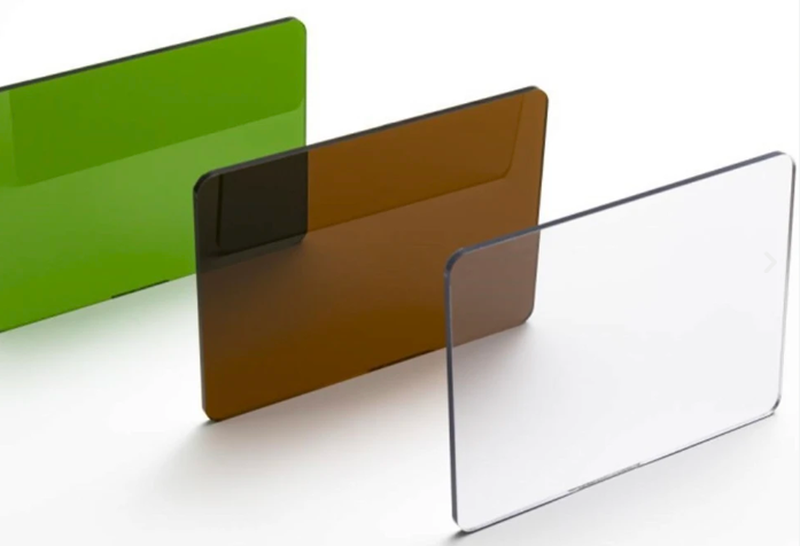

Features of anti-static laser protection plate
The anti-static laser protection plate has many excellent characteristics, which makes it widely used in the field of laser protection. First, its surface has been specially treated to effectively prevent the accumulation of static electricity and avoid the damage of static electricity to laser equipment or precision components. Secondly, the protection plate can block or absorb the laser beam to prevent the leakage of laser from causing harm to the operator. Common laser wavelengths include ultraviolet lasers (193nm, 248nm, 355nm), visible lasers (532nm, 635nm, 650nm) and infrared lasers (1064nm, 10.6μm). The protection plate needs to select the appropriate material according to the laser wavelength. In addition, the protective plate is usually made of highly transparent materials, such as polycarbonate (PC) or acrylic (PMMA), to ensure that the operator can clearly observe the operating status of the equipment. At the same time, the protective plate must also have high temperature resistance and good mechanical strength to adapt to the high temperature working environment of the laser equipment and the impact and wear in industrial scenes.
Application fields of anti-static laser protective plates
Anti-static laser protective plates play an important role in many fields. In laser processing equipment, such as laser cutting, welding and marking, protective plates are widely used in the protective covers and observation windows of the equipment to effectively prevent laser leakage and static electricity accumulation. In medical laser equipment, protective plates are used to protect medical staff and patients from laser damage. Their high transparency and anti-static performance are particularly important in medical environments. In the laboratory, the protective plate provides reliable laser protection for experimenters to ensure the safety of the experimental process. In precision electronic manufacturing, the protective plate can prevent static electricity from damaging sensitive components and ensure the stability of the production process.
How to choose an anti-static laser protective plate
Selecting a suitable anti-static laser protective plate requires consideration of multiple factors.
The first is the laser wavelength. Lasers of different wavelengths require protective plates of different materials. For example, ultraviolet lasers require materials with high UV resistance, while infrared lasers require materials with high absorption rate.
The second is laser power. Optical density (OD value) is an important indicator to measure the protective ability of protective plates. Generally, OD4+ protective plates are sufficient to protect lasers below kilowatts (<1000W), while high-power lasers exceeding kilowatts (≥1000W) require OD6+ protective plates.
In addition, the use environment is also an important factor in selecting protective plates. For example, high temperature and high humidity environments require the selection of materials with stronger weather resistance. Finally, choose the appropriate size and thickness according to the specific needs of the equipment to ensure that the protective plate can completely cover the propagation path of the laser beam.
Maintenance of anti-static laser protective plates
In order to ensure the long-term and stable use of anti-static laser protective plates, regular maintenance and inspection are essential.
First, keep the surface of the protective plate clean to prevent dust and dirt from affecting its protective effect.
Secondly, regularly check the wear of the protective plate and replace the damaged protective plate in time to avoid affecting the protective performance.
In addition, the anti-static performance of the protective plate is tested regularly to ensure that its anti-static coating is still effective. Through reasonable maintenance, the service life of the protective plate can be extended to ensure the safe operation of the laser equipment.
Conclusion
Anti-static laser protective plates play a vital role in the safety protection of laser equipment. Through the reasonable selection and maintenance of protective plates, the safety and service life of laser equipment can be effectively improved, providing reliable protection solutions for industrial, medical, scientific research and other fields. With the continuous development of laser technology, the application of anti-static laser protective plates will be more extensive, and their performance will continue to improve, providing more comprehensive protection for the safe operation of laser equipment.
