808nm Diode Pumped Solid State Lasers

Wavelength: 808(+/-5)nm
Spatial Mode: Multimode
Output Power: 500, 800, …3500mW
Operation Mode: CW or TTL or 0~30khz Analog
Beam Size: 5 mm
Beam Divergence: 3 mrad
Power Stability: <±3% per 2 hrs
Beam Height: 25mm
Laser Head Dimensions: 100(L)x40(W)x50(H)mm

Products Description

808nm Diode Pumped Solid State Lasers is a new generation of solid-state lasers with many advantages such as long life, low power consumption, high stability, good beam quality, and miniaturization.

DPSS Laser Module

Model No.	XL-808
Wavelength	808(+/-5) nm
Spatial Mode	multimode
Output Power	500, 800, …3500mW
Operation Mode	CW or Modulation(0~30khz Analog or TTL)
Polarization	10:1
Pointing Stability	<0.05 mrad
Beam Size	5 mm
Beam Divergence	3 mrad
Power Stability*	<±3% per 2 hrs
Beam Height	25mm
Temperature Stabilizing	TEC
Warm Up Time	<5 minutes
Beam Quality (M2)	<2
Optimum Operating Temperature	20~30oc
Storage Temperature	10~50oC
MTTF**	10,000 hrs
Laser head dimensions	100(L)x40(W)x50(H)mm3
Power Supply	A. OEM type XL-PS-I: 100(L)x58(W)x32(H)mm AC/DC PSU: 85~265V 50/60Hz input
	B. Lab type XL-PS-IIS: 104(W)x128(D)x89(H)mm AC/DC PSU: 85~265V 50/60Hz input
	C. Lab Adjustable type XL-PS-IIS: 179(W)x148(D)x56(H)mm AC/DC PSU: 85~265V 50/60Hz input

The 808nm Diode Pumped Solid State Lasers uses the monochromatic beam pumping of the laser diode, so less heat is dissipated into the laser rod, and the user can get a better-focused beam. These new lasers have high reliability, and the service life is more than 7500~10000h.

Miniature size
Collimated straight beam

Adjustable focus
Easy use & maintenance-free
Longlife operation
High efficiency
High reliability

Package:

DPSS Laser Module * 1

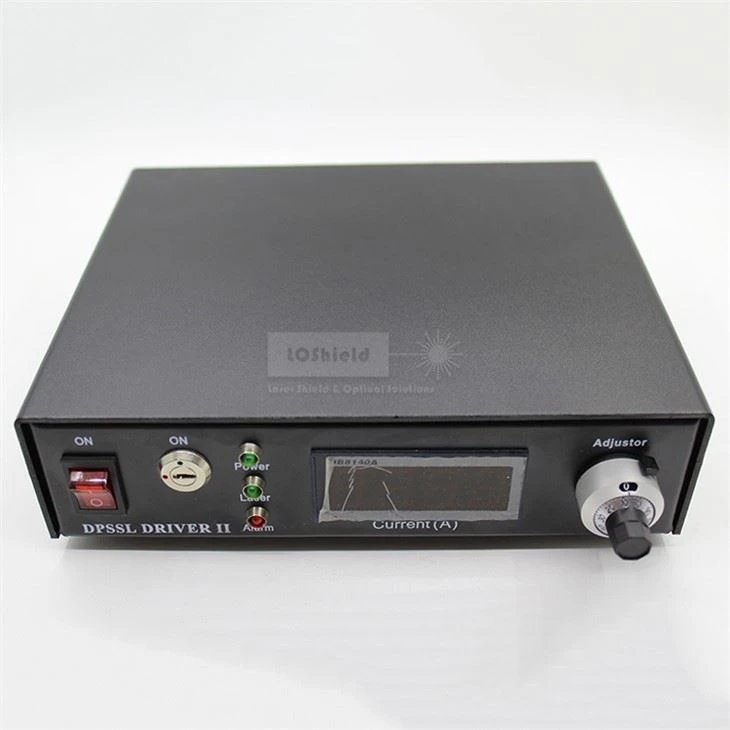

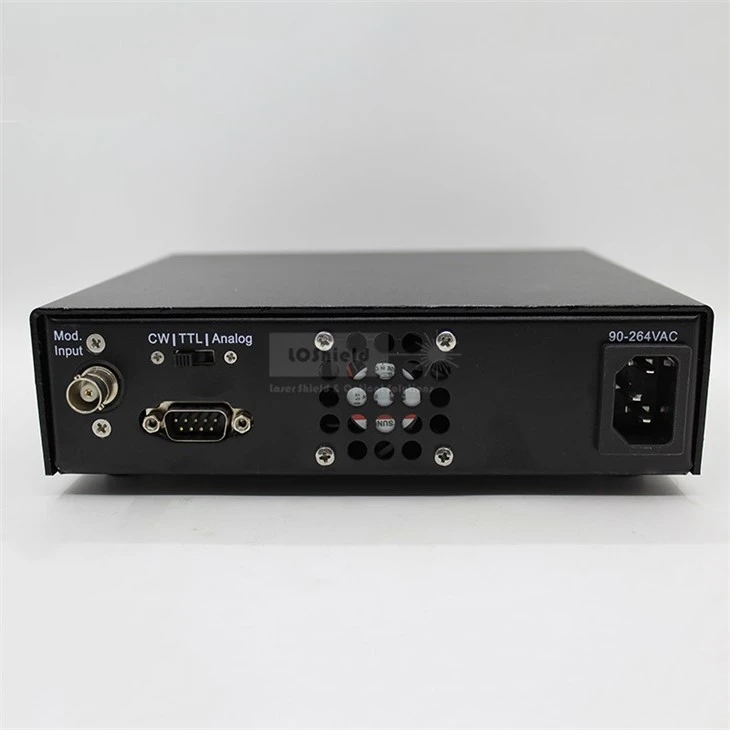

Lab Adjustable Power Supply XL-PS-II * 1

Power Cable * 1
Connecting Cable * 1

Keys * 2

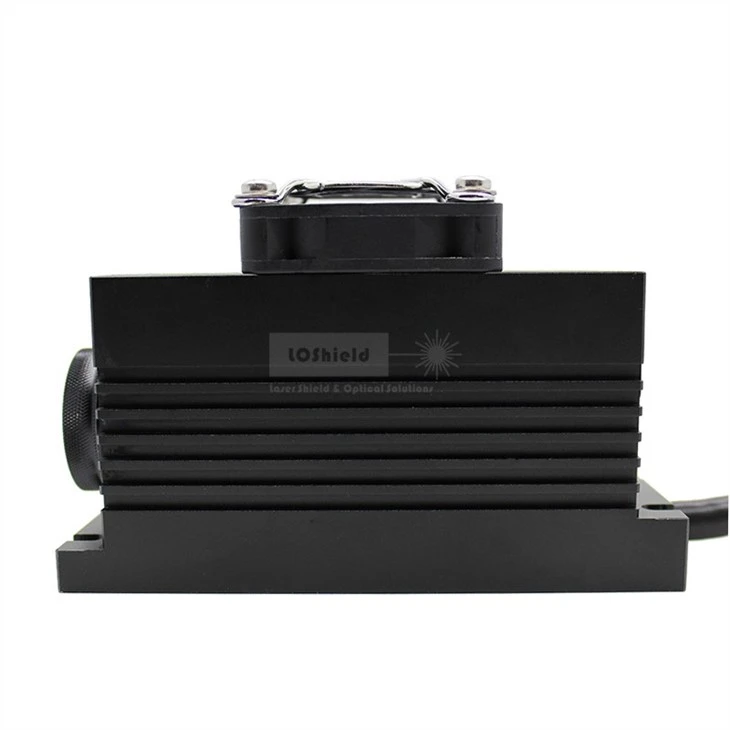

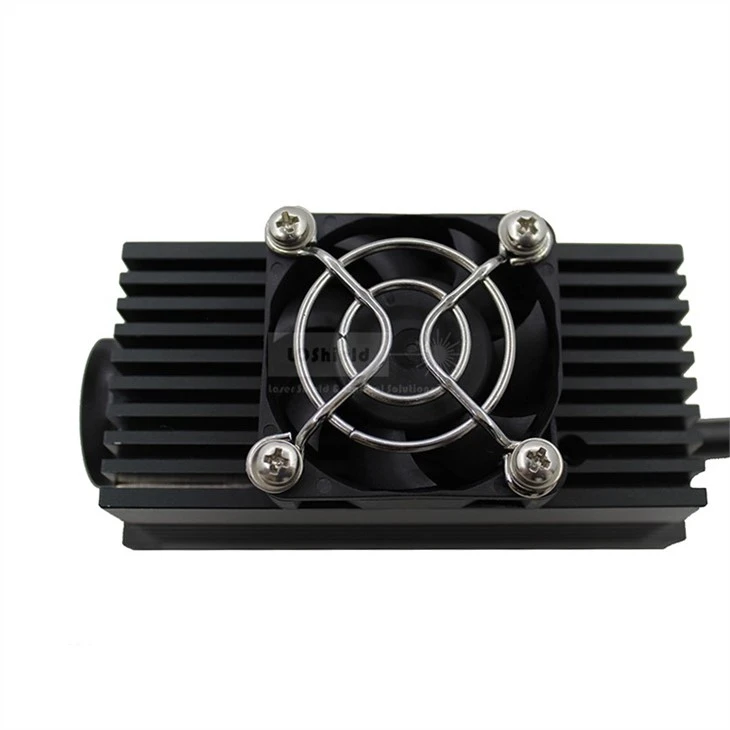

DPSS Laser Module
