Laser metal cutting machines are indispensable precision tools in modern industry and are widely used in the automotive, aviation, electronics and other fields. However, their high-energy laser beams pose a serious threat to the eyes of operators and may cause permanent damage such as corneal burns or retinal damage. Therefore, it is crucial to take appropriate protective measures, especially wearing suitable laser safety glasses. Choosing suitable glasses requires consideration of laser wavelength, power and operating environment to ensure maximum safety.
Working principle and common types of laser metal cutting machines
Laser metal cutting machines mainly use high-energy laser beams to irradiate metal materials, causing them to melt or vaporize rapidly, and blow away the melt through auxiliary gas to achieve cutting.
According to different cutting needs, laser metal cutting machines can be divided into several common types:
1. CO₂ laser cutting machine: This type of laser cutting machine uses a carbon dioxide laser, which has the characteristics of strong cutting ability and wide range, and is the mainstream equipment on the market.
2. Fiber laser cutting machine: This is the latest technology and is gradually becoming popular because of its relatively low technical requirements. The laser output power of a fiber laser cutting machine is usually 3000W.
3. YAG laser cutting machine: It uses solid laser and is suitable for cutting some materials that are not easy to oxidize or active metals, such as stainless steel, titanium, aluminum and its alloys.
4. High-precision laser cutting machine: This type of laser cutting machine uses a precision ball screw transmission mechanism and optimized CNC system control, which can achieve high-precision and stable cutting.
5. Large-format laser cutting machine: It can cut metal sheets within 2500mm×1250mm, suitable for cutting flat or curved sheets
Power range of laser metal cutting machine and its application industry
Laser metal cutting machine has a wide power range, ranging from low-power hundreds of watts to high-power thousands of watts. Common laser metal cutting machines on the market have powers of 1000W, 2000W, 3000W, etc., and there are even higher-power devices such as 6000W or higher. These different power devices are suitable for cutting metal materials of different thicknesses and types.
1. Low-power laser cutting machines (such as 1000W) are usually used to cut thinner metal materials, such as metal sheets a few millimeters thick. This type of equipment is suitable for fine cutting and rapid processing, and is commonly used in advertising production, handicraft manufacturing and other fields.
2. Medium-power laser cutting machines (such as 2000W to 3000W) can process medium-thick metal materials and are suitable for industrial applications such as automobile manufacturing and electrical appliance housings. This type of equipment can achieve better cutting quality while maintaining a high cutting speed.
3. High-power laser cutting machines (such as 6000W and above) can cut thicker metal materials and are suitable for heavy machinery manufacturing, shipbuilding, aerospace and other fields. These devices can cope with more stringent industrial needs and perform precision cutting of thick materials.
The importance of laser safety glasses
Laser radiation is extremely harmful to the eyes. Lasers have high energy density and monochromaticity, and can penetrate the cornea, lens and other structures of the human eye and focus directly on the retina. This focusing effect causes the light intensity on the retina to be 10^4~10^5 times higher than that on the cornea, causing thermal damage to the retina. In addition, when the laser is accidentally reflected from the auxiliary gas jet, the reflected laser may also cause damage to the eyes. Therefore, whether it is direct irradiation or reflected light, there is a potential hazard.

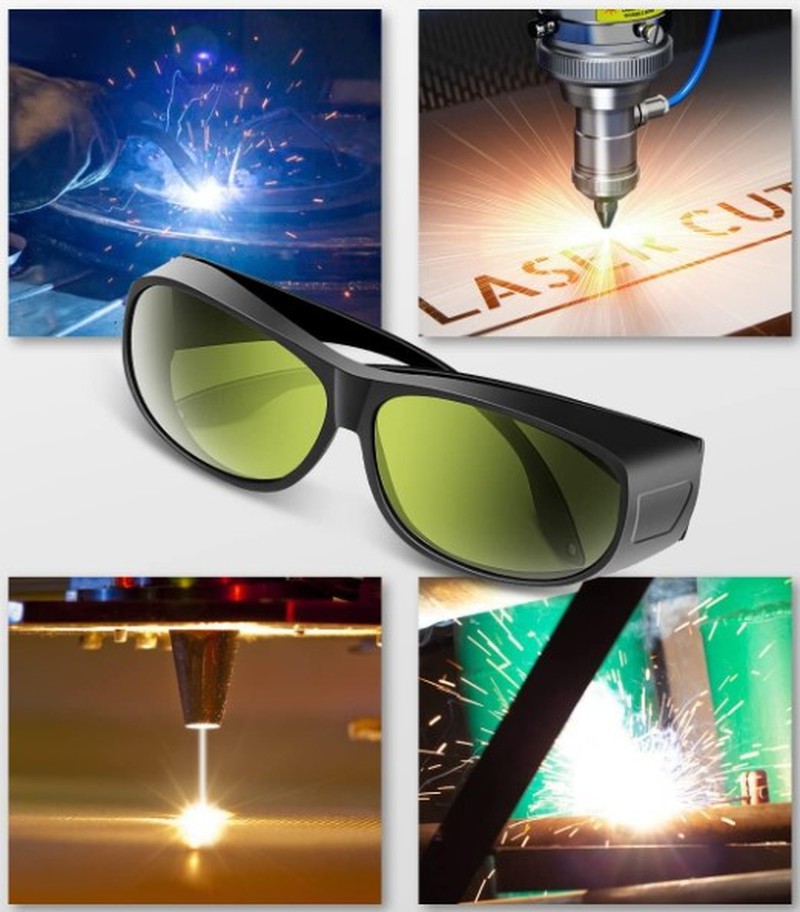

Choose the right laser safety glasses
Choosing the right laser protective glasses for laser metal cutting machines is a key step to ensure the safety of the operator's eyes. Here are some suggestions to help you choose the right laser protective glasses:
1. Determine the laser wavelength
Understand the equipment: First, you need to know what type of laser your laser metal cutting machine uses, because different types of lasers have different wavelengths. For example, the common CO₂ laser wavelength is 10.6 microns, while the Nd:YAG laser wavelength is 1.064 microns.
Match the wavelength: Choose protective glasses that can filter out radiation of this specific wavelength. Protective glasses usually indicate the laser wavelength range they are suitable for.
2. Consider the laser power density
Power density evaluation: The higher the power density of the laser, the greater the potential damage to the eyes. Therefore, for high-power laser cutting machines, a higher level of protective glasses needs to be selected.
OD value selection: Optical density (OD) is an indicator of the filtering ability of protective glasses. The higher the OD value, the stronger the attenuation ability of the protective glasses to the laser. Choose the appropriate OD value according to the power and operating distance of the laser.
3. Comfort and fit
Long-term wear: Since laser metal cutting operations may require long periods of time, it is important to choose protective glasses that are comfortable and suitable for long-term wear.
Facial fit: Make sure the protective glasses can fit the face tightly to prevent the laser from entering the eyes from the side. Some protective glasses are equipped with adjustable headbands or nose pads to provide a better fit.
4. Durability and easy cleaning
Material selection: Choose protective glasses made of durable and easy-to-clean materials to maintain a clear field of vision in harsh working environments.
Scratch resistance: Considering the splashes that may be generated during laser cutting, choosing lenses with anti-scratch coatings on the surface can extend the service life.
5. Certification and standards
Safety standards: Make sure the selected protective glasses meet international safety standards, such as the American National Standards Institute (ANSI) Z136.1 or European standards EN207/EN208.
Product certification: Check the product packaging or instructions to confirm whether it has passed the relevant safety certification.
6. Consult a professional
Professional advice: If you are unsure about how to choose, you can consult JTBYShield Laser Technology Co., Ltd., and we can provide recommendations for your specific equipment.
By following the above steps, you can choose a pair of suitable laser protective glasses for your laser metal cutting machine to ensure that the operator's eyes are fully protected. Remember, safety always comes first, and don't take risks by neglecting proper protective measures.
