Quality Assurance for Radiation Protection Garments

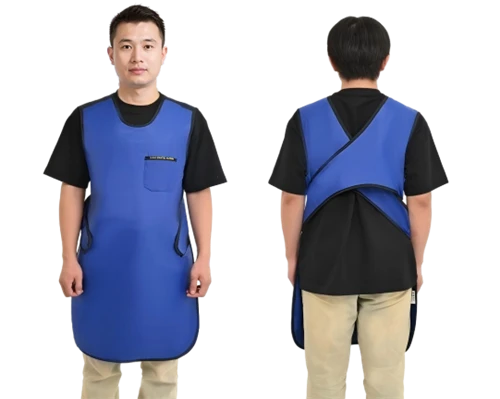

Lead aprons are the frontline defense for healthcare professionals working in radiology and interventional medicine. However, their protective capabilities are not permanent. Over time, daily wear, improper handling, and general fatigue can cause the internal shielding materials to crack, tear, or degrade, creating invisible "blind spots" that compromise safety. To ensure continuous protection, a rigorous quality assurance (QA) program is essential. Testing the effectiveness of lead aprons involves a combination of routine visual checks and advanced radiographic imaging.
1. The First Line of Defense: Visual and Tactile Inspections
Before diving into high-tech imaging, the most immediate and frequent testing method is a hands-on inspection. This should be performed regularly, ideally before each use or at least weekly.
Visual Check: Carefully examine the outer fabric for any signs of physical damage, such as tears, holes, frayed edges, or broken straps and closures. Pay special attention to the folds and seams, as these are high-stress areas.
Tactile Check: Run your hands smoothly over the entire surface of the apron. You are feeling for any irregularities. Lumps, bumps, or areas where the material feels unusually thin or "crinkly" can indicate that the internal lead or composite core has fractured or shifted. If you detect any internal damage, the apron should be immediately removed from service.
2. The Gold Standard: Radiographic (X-ray) Testing
While visual inspections catch obvious flaws, they cannot detect internal micro-cracks or subtle thinning of the shielding material. For this, radiographic testing is the industry standard. This process uses X-rays to create an image of the apron's internal structure.
Fluoroscopy: This is the most common method for testing lead aprons. The apron is placed under a fluoroscope (a real-time X-ray imaging device). The technician looks for any dark spots, streaks, or gaps in the image, which indicate areas where radiation is passing through more easily due to a defect in the shielding.
Digital Radiography: Similar to a standard X-ray, this method captures a static image of the apron. It is highly effective for identifying cracks, especially when the apron is folded or stressed during the imaging process.
Copper Step Wedge Testing: To verify that the apron still meets its specified lead equivalent (e.g., 0.25 mmPb or 0.5 mmPb), some facilities use a copper step wedge tool. By comparing the pixel intensity of the apron against the copper steps on an X-ray image, medical physicists can calculate the exact attenuation levels and ensure the apron hasn't lost its protective density over time.
3. Establishing a Testing Schedule
A robust QA program requires a consistent testing schedule.
Upon Purchase: Every new lead apron should be radiographically tested before its first use to ensure it left the manufacturer without defects and meets the required specifications.
Annual Inspections: As a general rule, all lead aprons in active use should undergo a comprehensive radiographic inspection at least once a year.
High-Use Areas: Aprons used in high-volume departments like the emergency room, fluoroscopy suites, or operating rooms experience more wear and tear. In these environments, it is recommended to increase the frequency of testing to every six months.
4. Knowing When to Retire a Lead Apron
Not all damage requires immediate disposal, but strict criteria must be followed. Generally, if a radiographic test reveals a crack, tear, or hole that exceeds a certain size (often defined as larger than 670 mm² or roughly the size of a dime, depending on local regulations), or if the defect is located in a critical area like the thyroid shield or the center of the apron, the garment must be retired. Additionally, if the apron fails to meet its rated lead equivalence during attenuation testing, it is no longer safe for use.
Conclusion
Testing the effectiveness of lead aprons is a non-negotiable aspect of radiation safety. By combining diligent visual inspections with annual radiographic testing, healthcare facilities can ensure that their protective garments remain intact and fully functional. Remember, a compromised lead apron provides a false sense of security; regular quality assurance is the only way to guarantee that your shield is truly protecting you.
